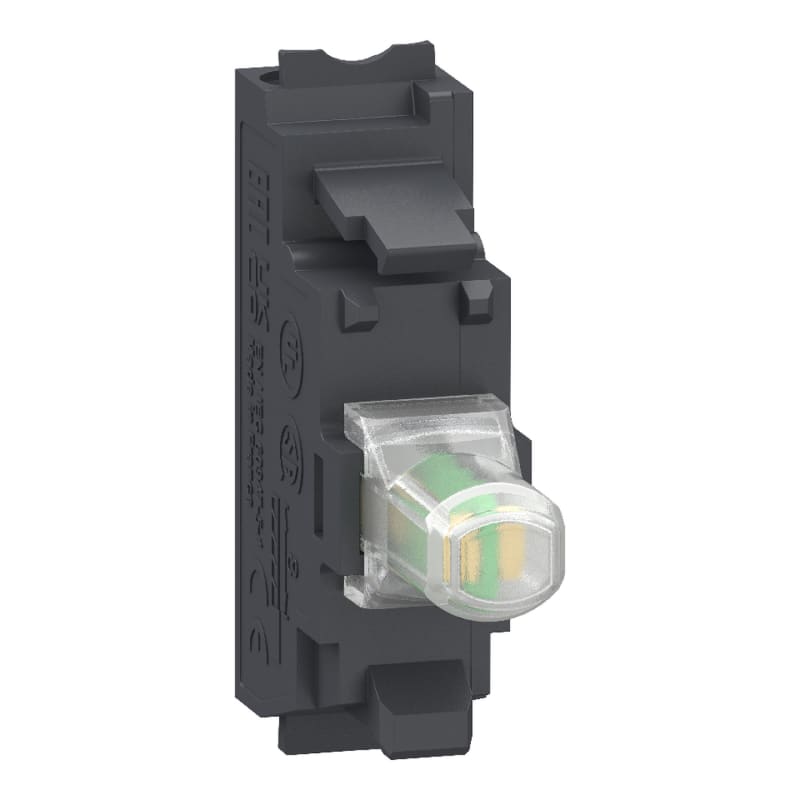

LED module uni 120VAC push-in

Schneider Electric ZBVG15 Light Module with LED in white colour and 110-120VAC supply with push-in spring terminals.

Manufacturer part number (MPN)

ZBVG15

EAN / GTIN

3389119037549

Sales unit

pcs

Package quantity

4 pcs

Voltage

120 V AC

Range of product

Harmony XB5; Harmony XB4

Product or component type

Light block

Device short name

ZBV

Sale per indivisible quantity

5

Connections - terminals

Push-in, = 1 x 0.34 mm² without wire end ferrule conforming to IEC 60947-1

Signalling type

Steady

Light source

Universal LED

Bulb base

Integral LED

Light block supply

Direct

Light source colour

White

[Us] rated supply voltage

110...120 V AC at 50/60 Hz

CAD overall width

35.6 mm

CAD overall height

14.8 mm

CAD overall depth

9.8 mm

Product weight

0.005 kg

Supply voltage limits

102…132 V AC

Current consumption

19 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Mounting of block

Front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-5-5; UL 60947-1; UL 60947-5-1; UL 60947-5-5; UL 1059; UL 486E; CSA C22.2 No 60947-1; CSA C22.2 No 60947-5-1; CSA C22.2 No 158; CSA C22.2 No 65; IACS E10; GB/T 14048.5

Product certifications

EAC; IECEE CB Scheme; CCC; UL; CSA

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

4 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Supply voltage

110...120 V

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

800

Country of origin

FR

Warranty (in months)

18

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

White

Lamp type

LED

With light source

Yes

Rated voltage Ue at AC 50 Hz

110–120 V

Rated voltage Ue at AC 60 Hz

110–120 V

Voltage type for actuating

AC

HS Code

8531.80

• EAN 3389119037549
• SAP 1000005033
• Code 831970
