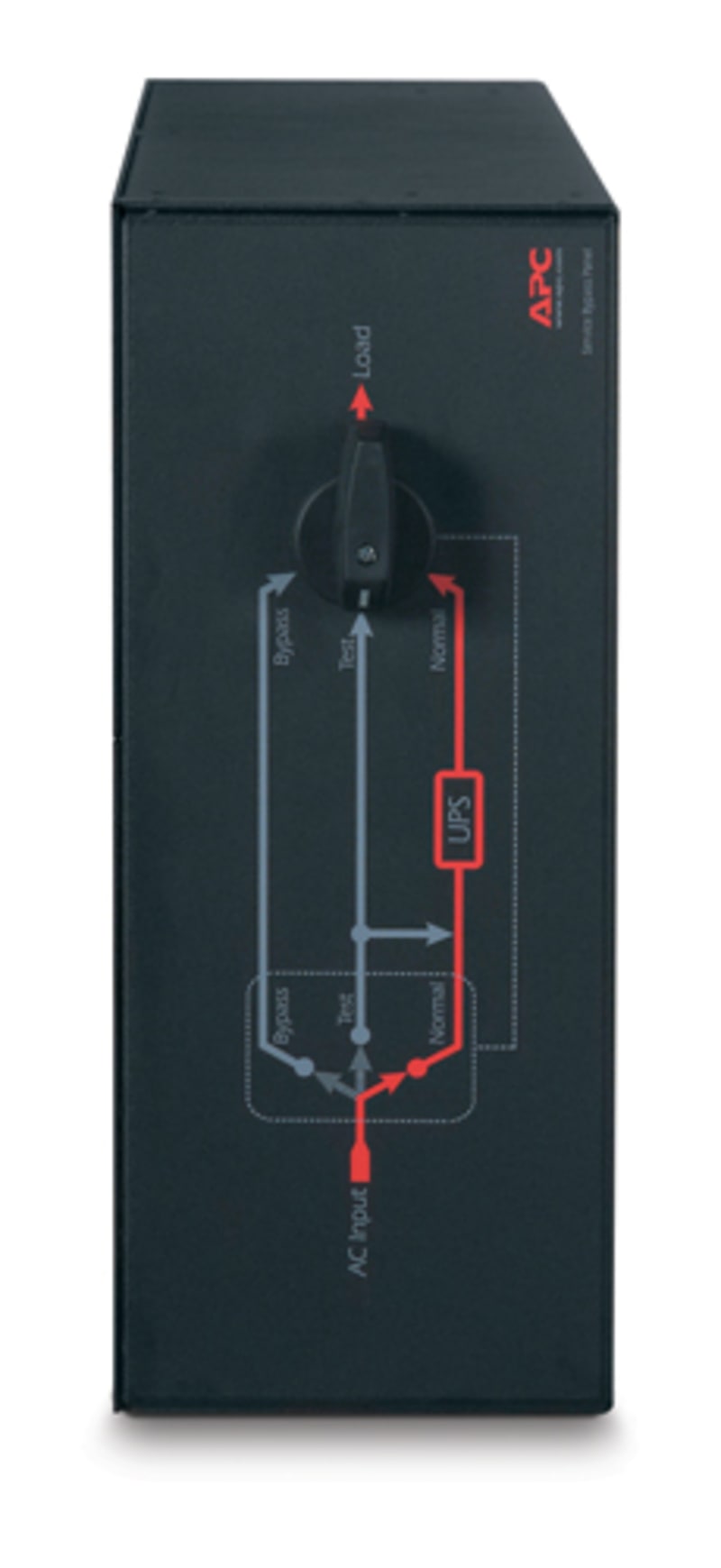

Schneider Electric APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; (3) 30A Hardwire Output SBP16KRMI4U
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SBP16KRMI4U APC Service Bypass Panel- 230V, 100A, MB.
Technical Specifications
- Manufacturer part number (MPN)
- SBP16KRMI4U
- EAN / GTIN
- 0731304212652
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 230 V
- Rated current
- 100 A
- Main Input Voltage
- 230 V
- Product or component type
- Bypass kit
- Main Output Voltage
- 230 V
- Output connector type
- Hard wire 3-wire (H N + E) for 3 zone(s)
- Number of rack unit
- 4U
- Number of cables
- 1
- Provided equipment
- Installation guide; Rack mounting brackets; User manual
- Range of product
- Maintenance Bypass Panels
- Colour
- Black
- Height
- 178 mm
- Width
- 432 mm
- Depth
- 673 mm
- Product weight
- 21.82 kg
- Mounting location
- Front
- Mounting preference
- Lower
- mounting mode
- Rack-mounted
- Network frequency
- 50/60 Hz
- Number of input connectors
- 1 hard wire 3-wire (H N + E); 1 hard wire 4-wire (3P + E)
- Max line current
- 100 A
- Input current limits
- 100 A
- Load capacity
- 20000 VA
- Power factor
- 0…1
- Max current draw
- 100 A
- Protection type
- Circuit breaker
- Efficiency
- 99 %
- Product certifications
- CSA; GOST
- Standards
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- -20…45 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...15000 ft
- Ambient air temperature for storage
- -40…65 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0…15240 m
- Country of origin
- CN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304212652
- SAP 1200723263
- Code 83845718
