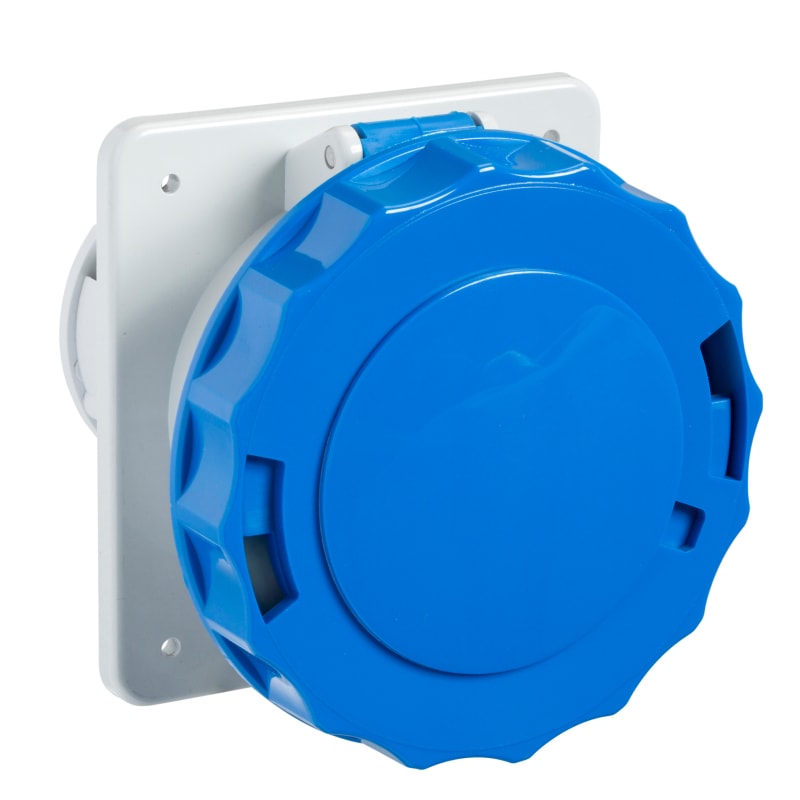

Schneider Electric PratiKa industrial socket - 63 A - 3P + E - 200...250 V AC - IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 81679 PratiKa large wall-mounted socket outlet - 63 A - 3P + E - 200-250 V AC - IP67.
Technical Specifications
- Manufacturer part number (MPN)
- 81679
- EAN / GTIN
- 3303430816799
- Sales unit
- pcs
- Rated current
- 63 A
- Range
- Mureva
- Product or component type
- Socket
- Device short name
- Mureva socket
- Plug, socket category
- Low voltage
- Poles description
- 3P + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Panel-mounted
- Plug, socket, control station shape
- Straight
- [In] rated current
- 63 A
- [Ue] rated operational voltage
- 200...250 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 9 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Pins: stainless steel; Sleeves: nickel plated brass; Springs: stainless steel
- Connections - terminals
- Captive screws, completely loosened
- Cable cross section
- 6…25 mm²
- Product weight
- 0.474 kg
- Base dimension
- 100 x 107 mm
- Height
- 107 mm
- Width
- 108 mm
- Depth
- 113 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Blue
- Standards
- EN 60309-2; EN 60309-1
- IP degree of protection
- IP67 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-11
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s )
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10 cm
- Package 1 Width
- 10 cm
- Package 1 Length
- 11.3 cm
- Package 1 Weight
- 607 g
- Warranty (in months)
- 18
- RAL-number
- 7035
- Cable entry
- None
- Number of poles
- 4
- Rated frequency
- 50–60 Hz
- Material
- Plastic
- IEC-amperage
- 63 A
- Connection system
- Screwed terminal
- Insert direction
- Straight
- Rated voltage
- 200–250 V
- Degree of protection (IP)
- IP67
- Military model
- No
- Clock hour position
- 9 h
- Identification colour
- Blue
- Voltage according to EN 60309-2
- 230 V (50+60 Hz) blue
- Drill hole distance vertical
- 85 mm
- Drill hole distance horizontal
- 77 mm
- Flange size vertical
- 107 mm
- Flange size horizontal
- 100 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3303430816799
- SAP 1200221706
- Code 82168864
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; (3) 30A Hardwire Output SBP16KRMI4U
Schneider Electric
Door for Kondensatorbatteri PrismaSeT G/P
LVS03970
Schneider Electric
Fan for ATV600/900 0,75-5,5kW
VX5VPS1001
Schneider Electric
Schneider Electric switch disconnector iSW - 2P - 100 A - 415 V A9S65291
Schneider Electric
Schneider Electric Earth leads section 6mm², length 130mm, eyelet hole 6,4MM. Packaging unit: 10. NSYEL136D6
Schneider Electric
Mounting plate for rail. size. 2
VW3A9805
Schneider Electric
Schneider Electric suppressor module - RC circuit - 220 V AC LA9F980
Schneider Electric

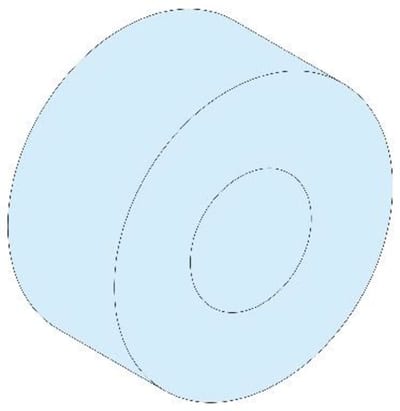

Avstandstykke 4 Pcs Cu INS/Polybloc G/P
