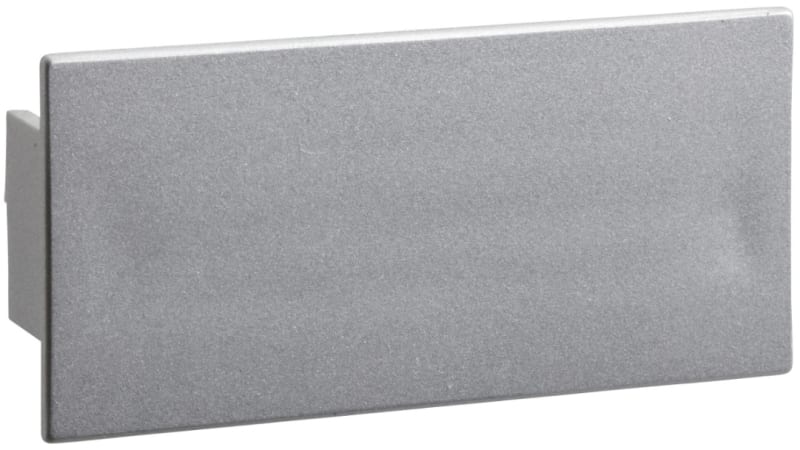

Schneider Electric ISM10951 OptiLine 45 Joint Cover 75-185 mm PC/ABS Aluminium
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM10951 is a symmetric front-cover joint piece for OptiLine 45 aluminium trunking, produced in halogen-free PC/ABS in aluminium-metallic finish for trunking widths from 75 to 185 mm at 55 mm depth. The 23 mm long snap-fit cover conceals butt joints between trunking front covers, maintaining a continuous appearance along the wall run. Rated IP30 / IK07 for indoor commercial and office installations.
Technical Specifications
- Manufacturer part number (MPN)
- ISM10951
- EAN / GTIN
- 3606480028496
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range of product
- OptiLine 45
- Cabling installation system
- Trunking
- product type
- Joint cover piece for front cover
- colour
- Aluminium metallic
- quantity package 1 / unit
- Set of 5
- Trunking material
- Aluminium
- Trunking dimension
- 165 x 55 mm; 140 x 55 mm; 185 x 55 mm; 95 x 55 mm; 75 x 55 mm
- fixing mode
- Snap-fitted
- product material
- PC/ABS
- Length
- 23 mm
- Height
- 47 mm
- Width
- 20 mm
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 50085-1:2013/A1; EN 50085-2-1:2006; EN 50085-2-1:2011/A1; NF C 68-102
- operating temperature
- -25…60 °C
- IP degree of protection
- IP30
- IK degree of protection
- IK07
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 90
- Warranty (in months)
- 18
- Model
- Symmetric
- Halogen free
- Yes
- Suitable for depth of wall duct
- 55 mm
- Material quality
- Polycarbonate (PC)/ABS
- Material
- Plastic
- Impact strength
- IK07
- Degree of protection (IP)
- IP30
- Suitable for wall duct width
- 75–185 mm
- With potential equalization
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480028496
- SAP 1200548000
- Code 82904075
Product Documentation
