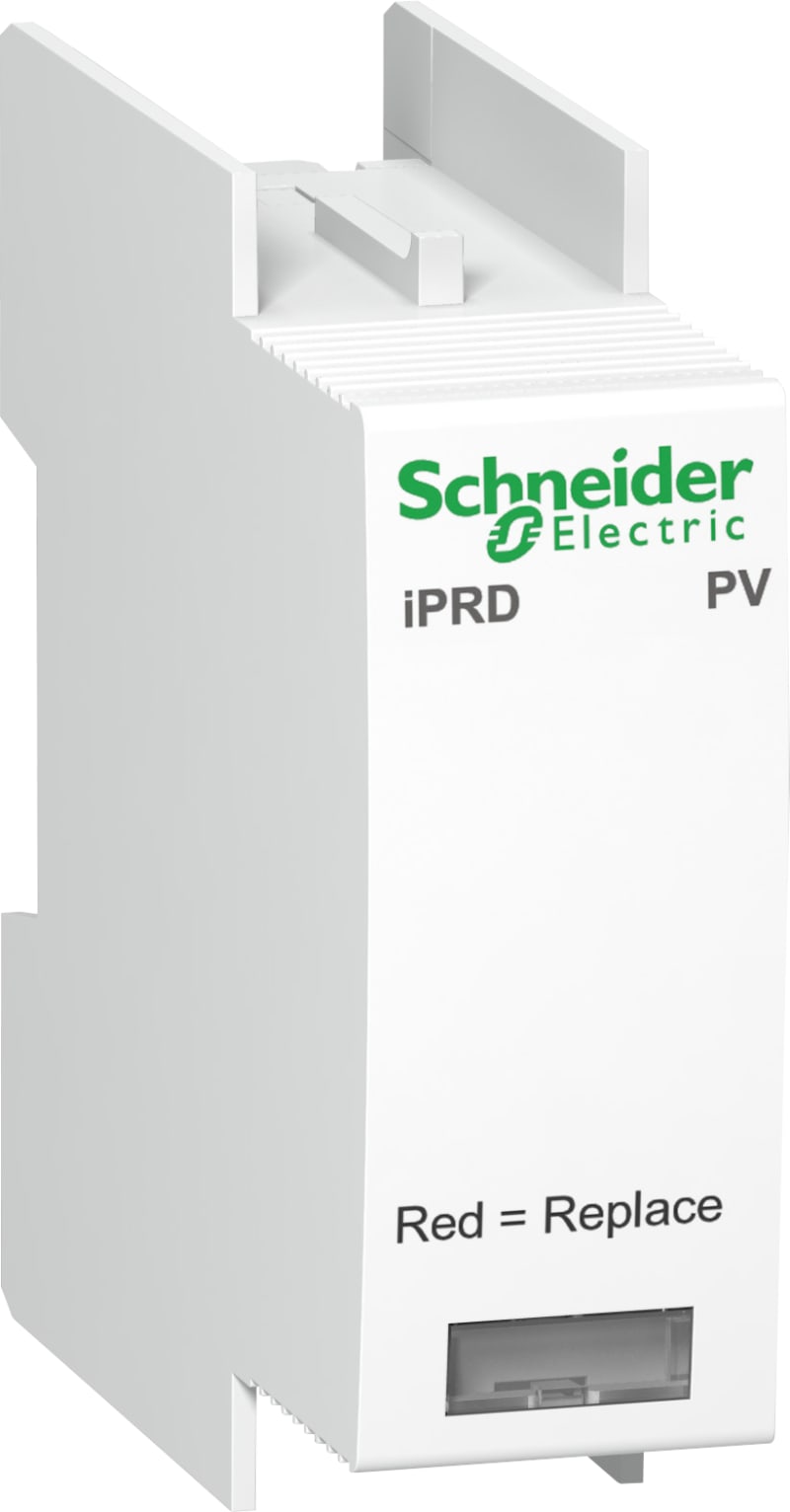

C40 RES Plug IPRD40R 1000PV
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9L40182 Acti9 C40 Spare Plug iPRD40r 1000PV.
Technical Specifications
- Manufacturer part number (MPN)
- A9L40182
- EAN / GTIN
- 3606480506642
- Sales unit
- pcs
- Package quantity
- 12 pcs
- range of product
- Acti9
- Product or component type
- Cartridge
- Device short name
- C40-1000 PV
- Range compatibility
- Acti9 iPRD PV-DC
- Surge arrester type
- Electrical distribution network
- Standards
- EN/IEC 61643-31
- Quality labels
- CE
- Surge arrester class type
- Type 2
- Surge arrester technology
- MOV
- Product destination
- Surge protection device iPRD PV-DC 2P
- Nominal discharge current
- 15 kA
- Maximum discharge current
- 40 kA
- [Uc] maximum continuous operating voltage
- 1000 V DC
- Maximum [Up] voltage protection level
- 2 kV type 2
- [Uoc] open circuit voltage
- 833 V
- Local signalling
- Flag (white/red)
- mounting mode
- Plug-in
- Mounting support
- Into SPD module
- 9 mm pitches
- 2
- Height
- 57 mm
- Width
- 18 mm
- Depth
- 56 mm
- Colour
- White (RAL 9003)
- Material
- PBT (polybutylene terephthalate)
- Response time
- < 25 ns
- IP degree of protection
- IP20 front face:
- Relative humidity
- 5…90 %
- Operating altitude
- 0...2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 108
- Warranty (in months)
- 18
- System configuration
- DC
- System configuration DC
- Yes
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 15 kA
- Max. discharge surge current (8/20)
- 40 kA
- Short-circuit-proof
- Yes
- Nominal voltage DC
- 1000 V
- Max. continuous voltage DC
- 460 V
- Max. PV-voltage
- 1000 V
- Voltage protection level
- 2 kV
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 16 mm²
- With remote signalling contact
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606480506642
- SAP 1000708046
- Code 8667309
Product Documentation
