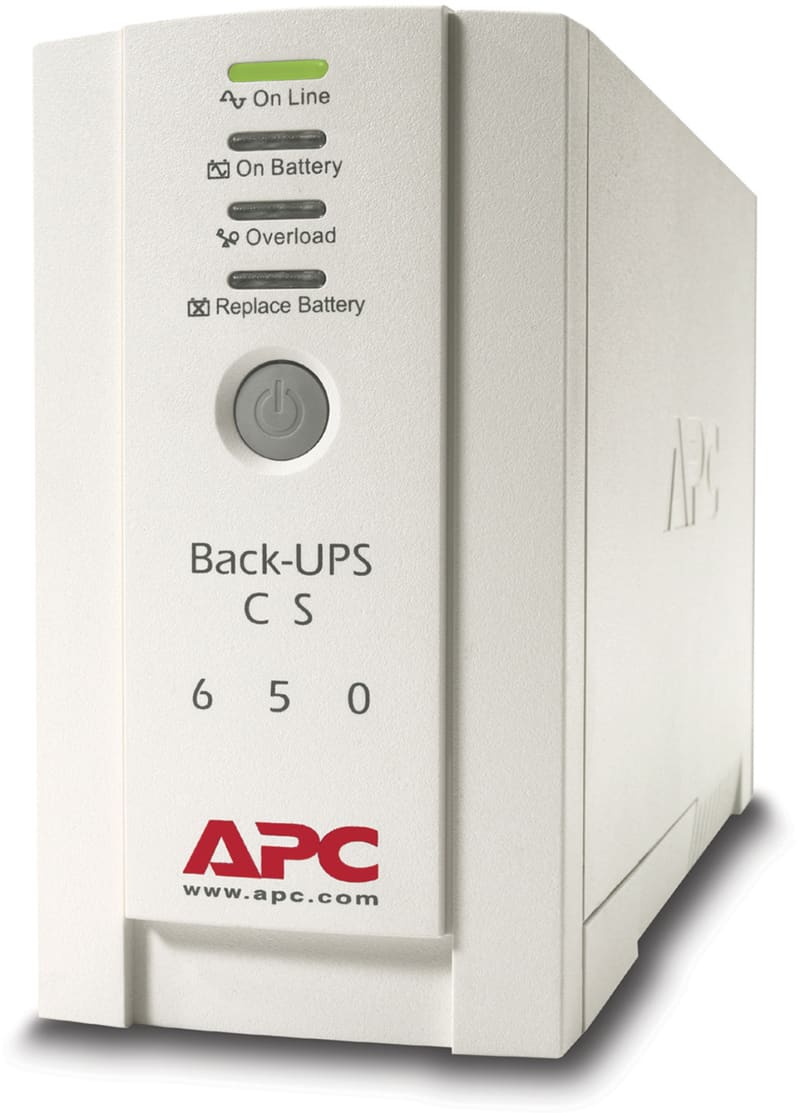

Schneider Electric BK650EI APC Back-UPS, 650VA, Tower, 230V, 4 IEC C13 Outlets, User Replaceable Battery

Schneider Electric BK650EI APC Back-UPS, 650VA, Tower, 230V, 4 IEC C13 Outlets, User Replaceable Battery is listed under Electrical Components / UPS Systems. Sales unit: pcs; Package quantity: 70 pcs; Main input voltage: 230 V AC 1 phase; Input connection: IEC 60320 C14; Maximum input current: 7 A; Switching current capacity: 7 A.

Manufacturer part number (MPN)

BK650EI

EAN / GTIN

0731304219781

Sales unit

pcs

Package quantity

70 pcs

Main input voltage

230 V AC 1 phase

Input connection

IEC 60320 C14

Maximum input current

7 A

Switching current capacity

7 A

Efficiency at full load

160...286 V adjustable; 180...266 V

Input frequency

47...63 Hz; 50/60 Hz +/- 3 Hz auto-sensing

Output voltage

230 V AC 1 phase

Rated power in W

400 W

Rated power in VA

650 VA

Output connection

3 IEC 60320 C13; 1 IEC 60320 C13 surge; 2 IEC 60320 surge

Type of USB power supply

None

Maximum configurable power in VA

650 VA

Maximum configurable power in W

400 W

Transfer time

6 ms typical : 10 ms maximum

UPS topology

Standby

Waveform type

Stepped approximation to a sinewave

Output frequency

47...63 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised

Replacement battery

RBC17

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery capacity

9.0 Ah

Battery type

Lead-acid internal included

Control panel

LED Status display with on line : on battery

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity

USB port

Surge energy rating

310 J

Number of cables

2

Color

Beige

Height

165 mm

Width

91 mm

Depth

284 mm

Product weight

6.03 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Not rack-mountable

Two post mountable

0

USB compatible

Yes

Provided equipment

CD with software; Documentation CD; 2 x detachable IEC C13 to IEC C14 power cords; USB cable

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Range of product

Back-UPS

Product or component type

Uninterruptible power supply (UPS)

Product certification

RCM; CE; GOST; NEMKO

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

Relative humidity

5…95 %

Storage relative humidity

5…95 %

Acoustic level

45 dBA

Operating altitude

0...10000 ft

Battery voltage

12 V

Battery graph comment

This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v

Extendable runtime

0

Included battery module

0

Empty battery slot

0

Typical recharge time

8 h

RBC quantity

1

Battery life

4…6 year(s)

Battery charging power

12 W rated

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

49.400 cm

Package 1 Width

18.500 cm

Package 1 Length

41.500 cm

Package 1 Weight

7.300 kg

Unit Type of Package 2

PAM

Number of Units in Package 2

35

Package 2 Height

132.500 cm

Package 2 Width

100.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

267.850 kg

SCC14

10731304219788

Country of origin

PH

Warranty (in months)

12 Battery|24 UPS

HS Code

8504.40
