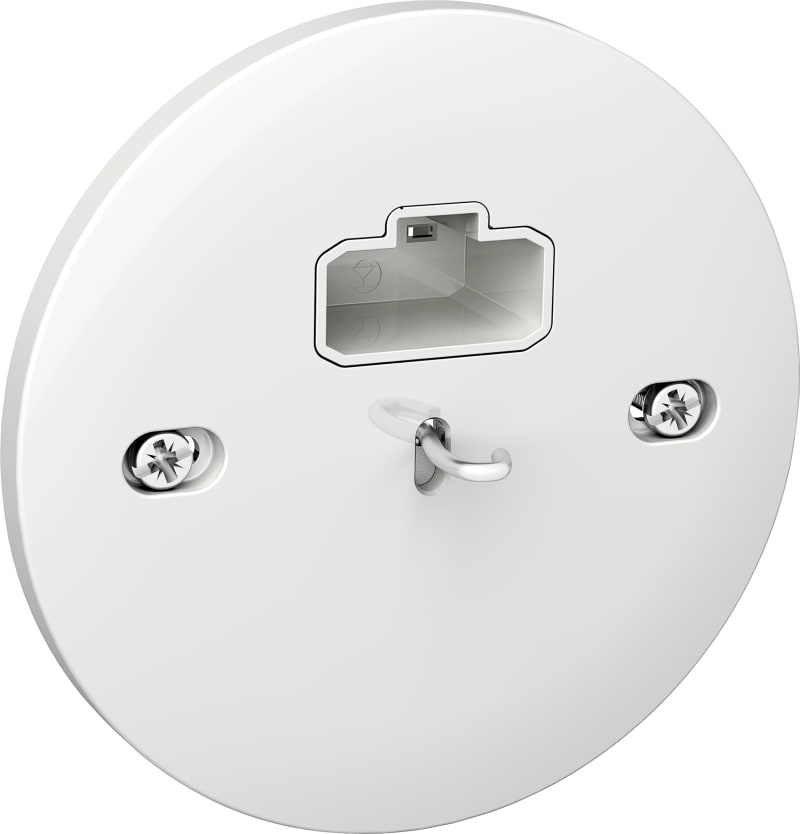

Schneider Electric WDE005101 DCL Ceiling Outlet with Plug, White
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric WDE005101 is a DCL ceiling outlet in white for flush mounting in a ceiling box where a luminaire is to be installed. The device is rated 6 A at 250 V, 50-60 Hz, supports push-in clamp connection and includes a full cover plate with protective earth contact. Thermoplastic construction, RAL 9003 glossy finish, IP21, halogen free, with loop-through function. Typical use is in residential and light commercial ceilings for standardised luminaire connection.
Technical Specifications
- Manufacturer part number (MPN)
- WDE005101
- EAN / GTIN
- 4750288199410
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Lifecycle status
- Phased out
- Nominal current
- 6 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- DCL
- Halogen free
- Yes
- Cover
- Full cover plate
- Number of units
- 1
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- With signal lamp
- No
- Number of phases
- 1
- With enhanced contact protection
- No
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- Yes
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- RAL-number (similar)
- 9003
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP21
- Phase pickup
- None
- Device width
- 117 mm
- Device height
- 117 mm
- Device depth
- 40 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- IFTTT support available
- No
- Number of active contacts (round)
- 2
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 32 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- Anti-bacterial treatment
- No
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 4750288199410
- SAP 1000099075
- Code 8593274
