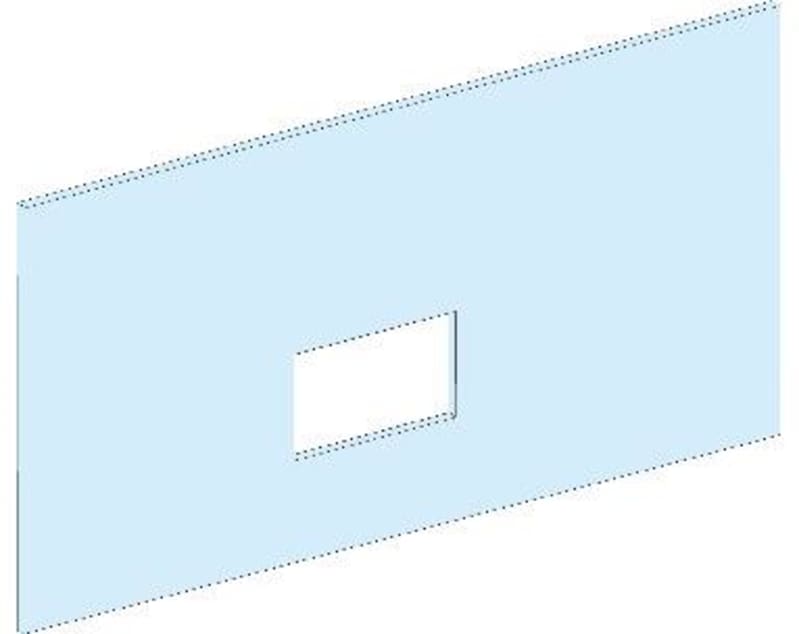

Schneider Electric LVS03687 Front Plate NS630b-1000 Horizontal PrismaSeT P

Schneider Electric LVS03687 is a cut-out front plate for PrismaSeT P cubicles fitted with a fixed ComPact NS630b-1000 circuit breaker in horizontal installation, operated by toggle or direct front rotary handle. Steel construction with electrophoresis and hot-polymerised polyester epoxy powder finish in white RAL 9003, matt and textured surface. Dimensions 500 x 350 mm, seven vertical 50 mm modules, weight 1.78 kg, ASTA-certified to IEC 61439-1 and IEC 61439-2. Used in low-voltage switchboards to close off the compartment around the installed breaker while retaining access to its operating mechanism.

Manufacturer part number (MPN)

LVS03687

EAN / GTIN

3606481866318

Sales unit

pcs

Range

PrismaSeT

Range of product

PrismaSeT P

Product or component type

Front plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT P cubicle

Type of front plate

Cut-out

Installed device

ComPact: fixed NS630b...1000 - control: toggle - horizontal installation; ComPact: fixed NS630b...1000 - control: direct front rotary handle - horizontal installation

Poles description

1 x 3P: mounting plate support: NS630b...1000 horizontal installation; 1 x 4P: mounting plate support: NS630b...1000 horizontal installation

Operating position

Horizontal

Enclosure/cubicle description

Cubicle - width 650 mm depth 800 mm; Cubicle + duct - width 650 mm depth 400 mm

Connection position

Front connection; Rear connection

Number of vertical modules [50 mm]

7

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Material

Steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Textured

Colour

White (RAL 9003)

Width

500 mm

Height

350 mm

Product weight

1.78 kg

Quantity per set

Set of 1

functional unit

650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 3P 1 front connection 7; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 3P 1 connection transfer assembly 8; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 front connection 7; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 connection transfer assembly 8; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle horizontal 3P 1 rear connection 7; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 rear connection 7; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 4P 1 front connection 7; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 4P 1 connection transfer assembly 8; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 4P 1 front connection 7; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 4P 1 connection transfer assembly 8; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle horizontal 4P 1 rear connection 7; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle horizontal 4P 1 rear connection 7

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.000 cm

Package 1 Width

35.000 cm

Package 1 Length

50.000 cm

Package 1 Weight

1.768 kg

Unit Type of Package 2

S04

Number of Units in Package 2

5

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

9.878 kg

Unit Type of Package 3

P06

Number of Units in Package 3

20

Package 3 Height

72.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

51.512 kg

Country of origin

RO

Warranty (in months)

18

Suitable for enclosure building width

650 mm

Number of height units

7

Surface finishing

Powder coating

Suitable for enclosure building height

2000 mm

HS Code

8538.90
