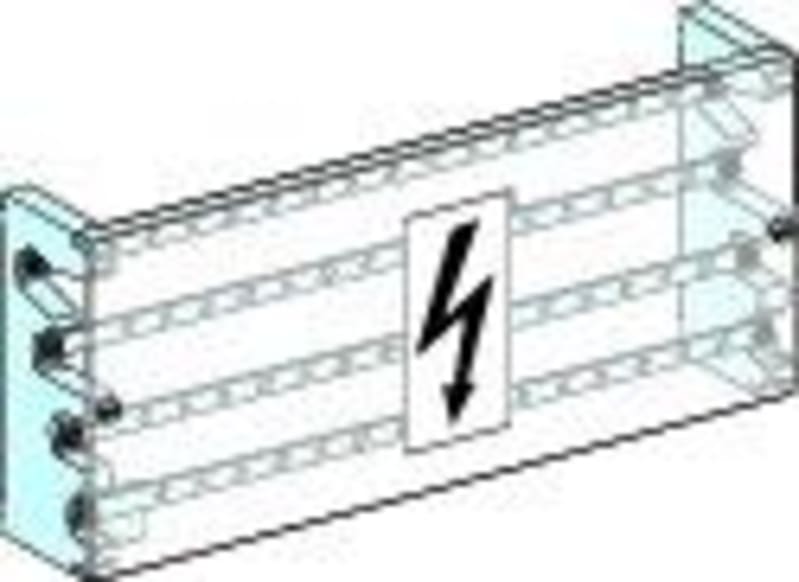

Busbar Linergy BS 630 A G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04055 — LINERGY BS 4P MULTISTAGE BB 630A 52HOLES.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04055
- EAN / GTIN
- 3606481870940
- Sales unit
- pcs
- Rated current
- 630 A
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Multi-stage distribution block
- Product name
- Linergy BS
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure
- Product compatibility
- Spacial enclosures
- IP degree of protection
- IPxx B
- Mounting support
- Slotted backplate; Prisma upright; Plain backplate
- mounting mode
- Vertical; Horizontal
- Poles description
- 4P
- [Ue] rated operational voltage
- 440 V AC
- [Ui] rated insulation voltage
- 750 V AC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 630 A
- [In] rated current
- 630 A at 40 °C
- [Icw] rated short-time withstand current
- 25 kA for 1 s
- [Ipk] rated peak withstand current
- 40 kA
- I²t on activation
- 625000000 A².s
- Busbar cross section
- 32 x 8 mm
- Connections - terminals
- Supply: crimped lug50 mm²; Supply: flexible bars, 32 x 8 mm; Distribution: M6 holes (phase) , 13 x 16…50 mm²
- Height
- 235 mm
- Width
- 470 mm
- Depth
- 115 mm
- Product weight
- 5.6 kg
- Standards
- IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 15.5 cm
- Package 1 Width
- 25.5 cm
- Package 1 Length
- 55.0 cm
- Package 1 Weight
- 5.596 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 30
- Package 2 Height
- 91.0 cm
- Package 2 Width
- 80.0 cm
- Package 2 Length
- 120.0 cm
- Package 2 Weight
- 179.5 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Nominal current
- 630 A
- Mounting method
- Screw
- Connection type
- Screwing
- Number of poles
- 4
- Contact safe
- Yes
- Suitable for fine strand conductors
- No
- Suitable for solid conductors
- No
- Suitable for stranded conductors
- No
- Suitable for fine strand conductors without cable end sleeve
- No
- Suitable for extra fine-strand conductors
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481870940
- SAP 1200546560
- Code 82880746
