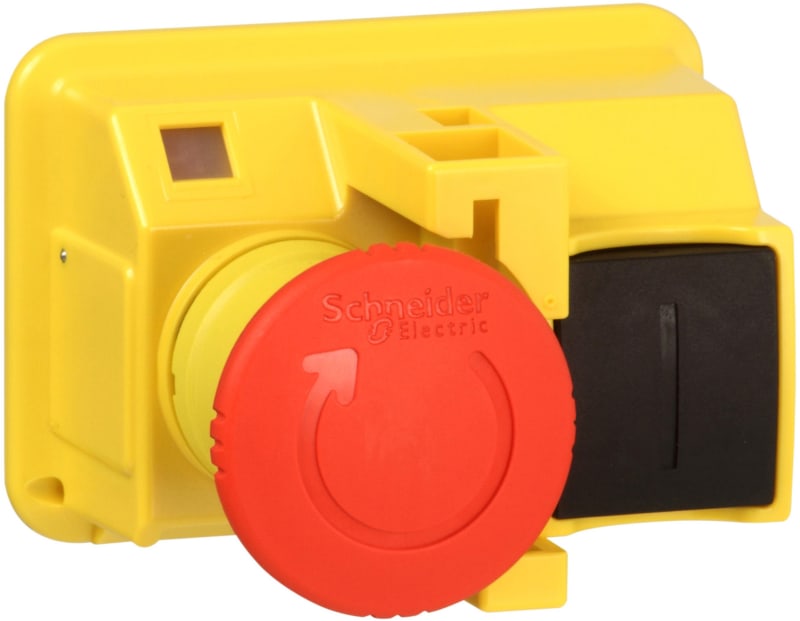

Schneider Electric GV2K031 TeSys GV2 - Emergency stop pushbutton - latching - turn to release
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric GV2K031 TeSys GV2 - Emergency stop pushbutton - latching - turn to release is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 15 pcs; Range: TeSys; Product name: GV2; LE; Product or component type: Mushroom head emergency stop push-button; Device short name: GV2K.
Technical Specifications
- Manufacturer part number (MPN)
- GV2K031
- EAN / GTIN
- 3389110733471
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Range
- TeSys
- Product name
- GV2; LE
- Product or component type
- Mushroom head emergency stop push-button
- Device short name
- GV2K
- Accessory / separate part category
- Enclosure accessory
- Product compatibility
- GV2MC; LE1GVMEK; GV2MP
- Type of operator
- Latching turn to release
- Diameter
- 40 mm
- Provided equipment
- 1 IP55 sealing kit
- Height
- 48 mm
- Width
- 73 mm
- Product weight
- 0.115 kg
- Colour
- Red
- IP degree of protection
- IP55
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.500 cm
- Package 1 Width
- 8.500 cm
- Package 1 Length
- 9.000 cm
- Package 1 Weight
- 137.500 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 15
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 2.267 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Colour button
- Red
- Suitable for lighting
- No
- Unlocking method
- Turn-release
- Spring-return
- No
- Diameter cap
- 40 mm
- Suitable for emergency stop
- Yes
- Type of button
- High
- Colour front ring
- Yellow
- With lighting
- No
- Width opening
- 73 mm
- Height opening
- 48 mm
- Degree of protection (IP)
- IP55
- Material front ring
- Plastic
- With front ring
- No
- Construction type lens
- Round
- Switching function latching
- Yes
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110733471
- SAP 1000010343
- Code 8478963
