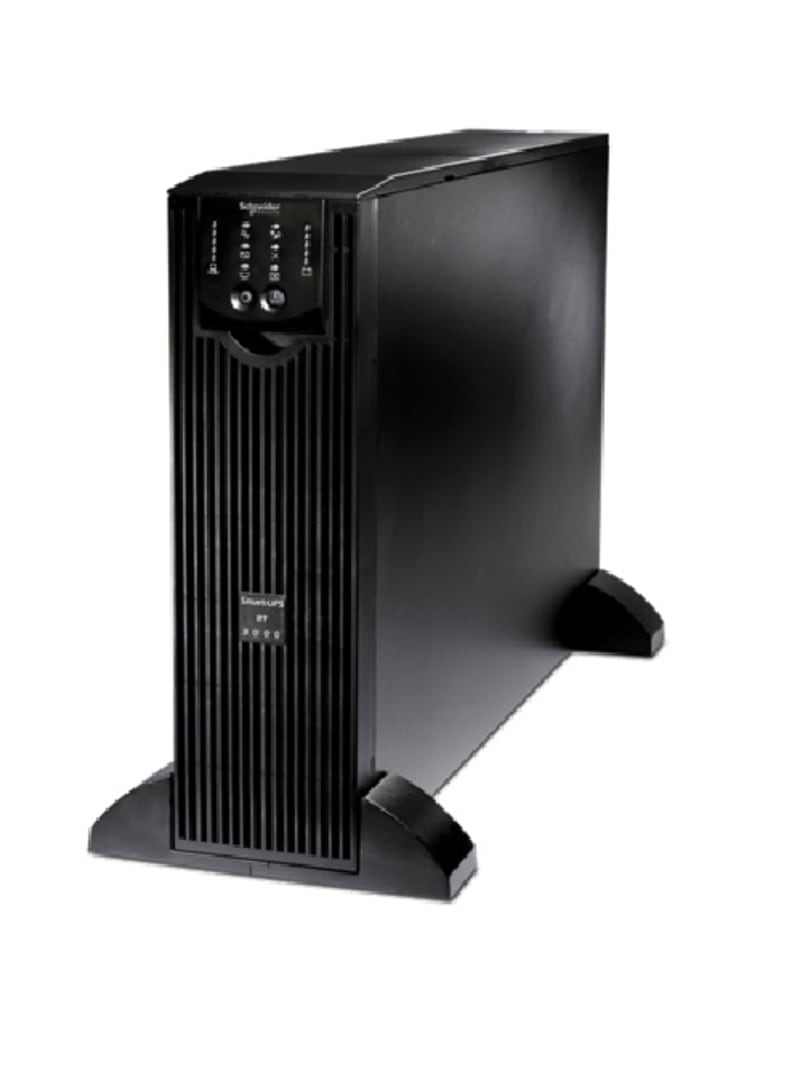

Schneider Electric On-Line UPS 5000VA 230V with pre-installed I/O hardwire kit SR15KDXIET

Schneider Electric SR15KDXIET APC by Schneider Electric.

Manufacturer part number (MPN)

SR15KDXIET

EAN / GTIN

0731304310754

Sales unit

pcs

Presentation

Proven Industrial UPS power protection for control applications and harsh environments.

Main input voltage

230 V

Other input voltage

220 V; 240 V

Efficiency at full load

160...280 V

Input connection

1 hard wire 3-wire

Input frequency

50/60 Hz +/- 5 Hz auto-sensing

Output voltage

230 V

Other output voltage

220 V; 240 V

Rated power in W

3500 W

Rated power in VA

5000 VA

Output connection

Hard wire 3-wire (H N + E) for 1 zone(s)

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

Less than 3 %

Maximum configurable power in VA

5000 VA

Maximum configurable power in W

3500 W

UPS topology

On-Line

Waveform type

Its wave

Efficiency

92 % (full load)

Output frequency

50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains

Replacement battery

APCRBC140

Run Time

View Runtime Graph

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Emergency power off

Yes

Free slot

1

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge energy rating

555 J

Noise filtering

Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449

Number of rack unit

3U

Color

Black

Height

432 mm

Width

130 mm

Depth

660 mm

Product weight

54.55 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Not rack-mountable

Two post mountable

0

USB compatible

No

Provided equipment

Documentation CD; Smart UPS signalling RS-232 cable; User manual

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Product or component type

Uninterruptible power supply (UPS)

Product certification

C-Tick; CE; CSA; GOST; UL 1778; VDE

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

Relative humidity

0…95 %

Storage relative humidity

0…95 %

Acoustic level

55 dBA

Heat dissipation

1057 Btu/h

Operating altitude

0...10000 ft

Battery type

Lead-acid battery

Extendable runtime

1

Included battery module

2

Typical recharge time

2.5 h

RBC quantity

1

Battery life

3…5 year(s)

Battery charging power

382 W rated

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

98.000 cm

Package 1 Width

60.300 cm

Package 1 Length

34.700 cm

Package 1 Weight

63.640 kg

Warranty (in months)

24

HS Code

8504.40
