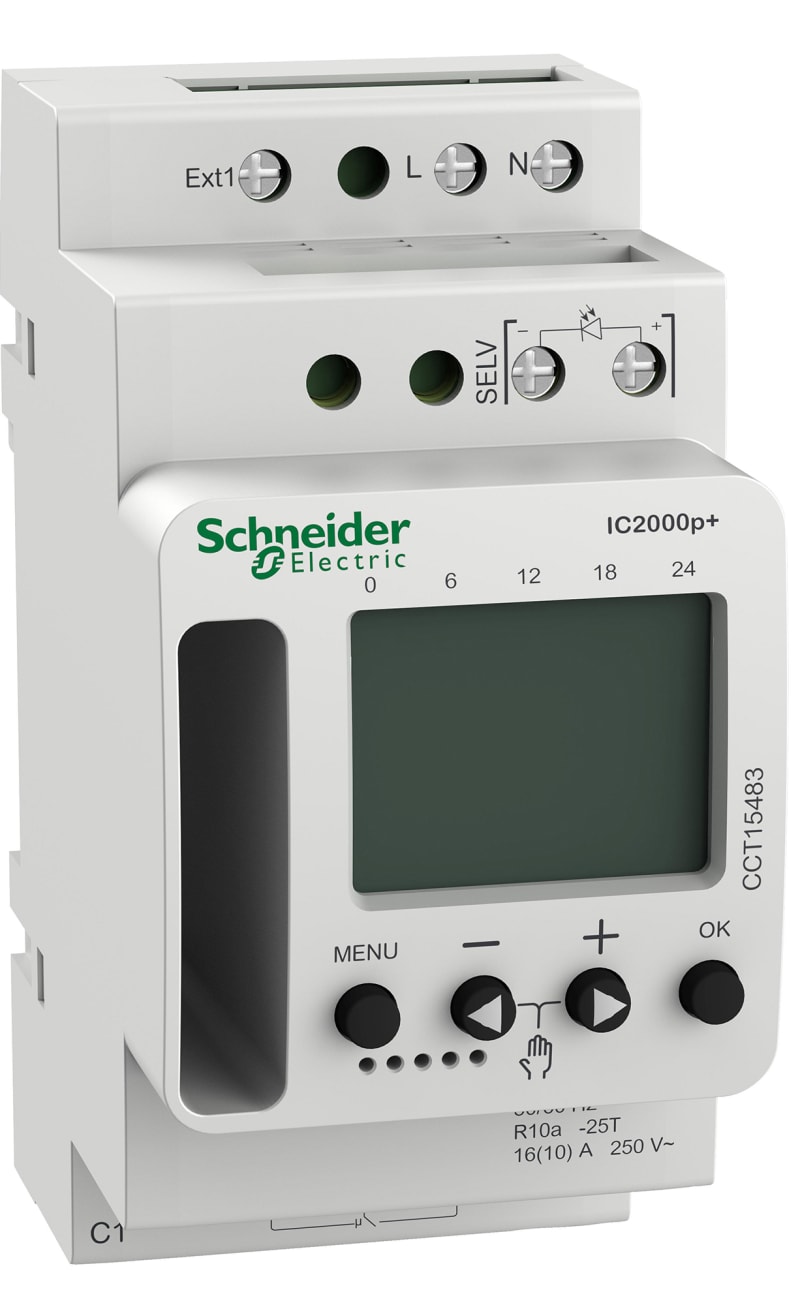

Schneider Electric ACTI9 IC2000P+ (2 - 2000 lux) programmable twilight switch CCT15483

Schneider Electric CCT15483 Acti 9 IC2000p+ (2 - 2000 lux) programmerbart skumringsrelè.

Manufacturer part number (MPN)

CCT15483 EAN / GTIN: 3606489524586 Sales unit: pcs Package quantity: 22 pcs range of product: Acti9 Product name: Acti9 IC Product or component type: Programmable twilight switch with time switch function Device short name: IC2000P+ Device application: Building Provided equipment: twilight sensor outdoor Load type: incandescent lamp: 2600 W; halogen lamp: 2600 W; non-corrected fluorescent tube: 2300 VA; serial-compensated fluorescent tube: 2300 VA; parallel compensated fluorescent lamp: 730 VA (80 µF); compact fluorescent lamp: 170 W; = 2 W LED lamp: 200 W User language: English; French; Dutch; Italian; Russian; Hungarian; Spanish; Bulgarian; Romanian; Polish; German; Czech; Croatian; Ukrainian; Portuguese; Danish; Finnish; Swedish Number of channels: 1 Maximum power consumption in W: 0.8 W standby [Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz Maximum switching current: 10 A - 250 V AC pf = 0.6; 16 A - 250 V AC pf = 1 minimum switching current: 10 mA 230 V AC; 100 mA 24 V AC/DC Electrical insulation class: Class II Output type: Dry contact Accuracy: +/- 0.25 s/day 25 °C Contacts type and composition: C/O Maximum number of programming range: 56 Function available: External input for override; Holiday schedules; Automatic winter/summer time changeover; Code lock function; On/off switching times; Switch preselection Control type: By brightness detection; By time schedule control button type: 4 push-buttons Time delay range: 20...140 s (on); 20...140 s (off) Power reserve: 10 years Type of setting: Weekly programming Light intensity adjustment: 2…2000 lux Connections - terminals: 2 x 0.5…2.5 mm² screw terminals solid or flexible; 1 x 2.5 mm² screw terminals solid or flexible with sleeve Mounting support: TH35 DIN rail conforming to EN 60715 Height: 92.6 mm Width: 45 mm Depth: 66.7 mm Product weight: 150 g Overvoltage category: Class 3 Marking: CE Ambient air temperature for operation: -25…55 °C ambient air temp for storage/transportation: -30…70 °C Relative humidity: 90 %, non-condensing IP degree of protection: IP20 Standards: EN 60669-2-1 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 8.000 cm Package 1 Width: 10.500 cm Package 1 Length: 10.500 cm Package 1 Weight: 244.000 g Unit Type of Package 2: S03 Number of Units in Package 2: 22 Package 2 Height: 30.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 5.875 kg Country of origin: DE Warranty (in months): 18 Rated voltage: 230 V Max. incandescent lamp load: 2600 W Max. load fluorescent lamp: 2300 VA Max. switching current (cos phi = 0.6): 10 A Rated switch current: 16 A With programmable overnight shutoff: Yes Push button input: Yes Max. conductor length light sensor: 50 m Protection class light sensor: II Mounting method light sensor: Wall surface mounted Mounting method: DIN rail Width in number of modular spacings: 2.5 Built-in depth: 67 mm Degree of protection (IP): IP20 Degree of protection (IP) light sensor: IP55

HS Code

9107.00

• EAN 3606489524586
• SAP 1200314484
• Code 82302433
