Rocker Switch Head (ZB4BD28)

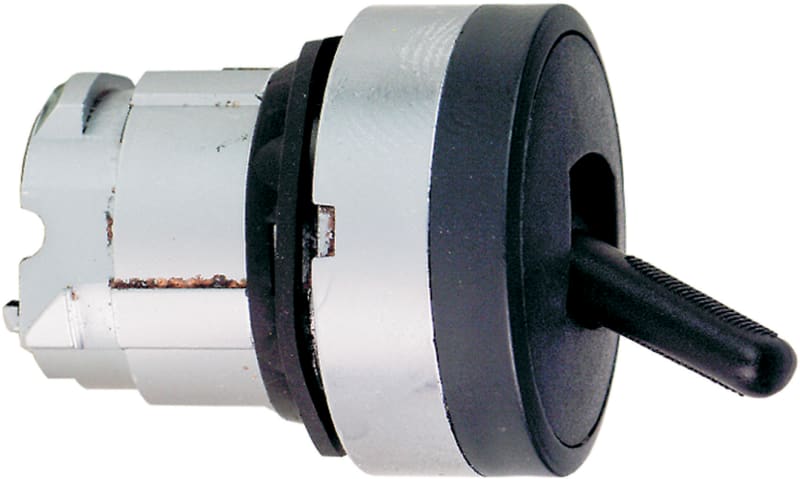

Schneider Electric ZB4BD28 Rocker Switch Head.

Manufacturer part number (MPN)

ZB4BD28

EAN / GTIN

3389110889352

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for selector switch

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

45 mm

Product weight

0.026 kg

Overvoltage category

Class I conforming to IEC 60536

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Shape of signaling unit head

Round

Type of operator

stay put

Operator profile

Black toggle switch

Operator position information

2 positions 90°

Mechanical durability

500000 cycles

Electrical composition code

C11 for <3 contacts using single blocks in front mounting; C12 for <6 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; C13 for <6 contacts using single and double blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP69 conforming to IEC 60529; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

UL 508; IEC 60947-5-4; CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-5; IEC 60947-5-1; JIS C8201-1

Product certifications

BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.6 cm

Package 1 Width

4.7 cm

Package 1 Length

5.4 cm

Package 1 Weight

32.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

200

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

6.878 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

2

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Wing knob

Colour control element

Black

Switching function latching

Yes

HS Code

8538.90

• EAN 3389110889352
• SAP 1000051037
• Code 8808102
