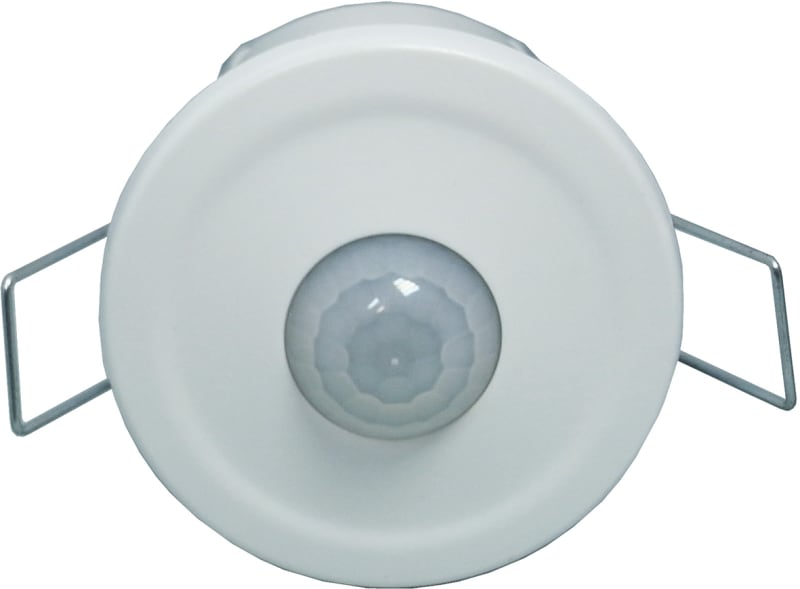

Schneider Electric ARGUS Standard min 360° False ceiling indoor movement detector CCT570005

Schneider Electric CCT570005 ARGUS Standard mini PIR.

Manufacturer part number (MPN)

CCT570005

EAN / GTIN

3606480995439

Sales unit

pcs

Package quantity

42 pcs

Range of product

ARGUS standard movement detector

Range

ARGUS

Product or component type

Movement detector

Load type

LED lighting: : 100 W; Compact fluorescent lamp: : 100 W; Incandescent lamps: : 1000 W - 230 V; Halogen lamp with standard ferromagnetic transformer: 500 VA; Halogen lamp: : 800 W - 230 V; Halogen lamp with standard electronic transformer: 315 VA; Fluorescent tube: 250 VA; Capacitive: , 25 µF

Colour tint

White

Output voltage

220...250 V

Control type

Movement sensor

Light intensity adjustment

5…1000 lux

detection range

Radius: 3000 mm

Mounting height

2.5 m

IP degree of protection

IP20

Number of Units in Package 1

1

Number of Units in Package 2

42

Number of Units in Package 3

672

Warranty (in months)

18

Nominal voltage

240 V

Mounting method

Flush-mounted

Colour

White

Width

57 mm

Model

Movement sensor

Halogen free

Yes

Height

57 mm

Depth

91 mm

Surface protection

Untreated

Creep-under protection

No

Voltage type

AC

Built-in depth

76.5 mm

Frequency

50–60 Hz

With remote control

No

Diameter

57 mm

Built-in width

41.5 mm

Built-in diameter

41.5 mm

Staircase light controller

Yes

Bridging switch

No

Suitable for wireless transmission

No

Max. reach frontally

3 m

Max. reach sideways

3 m

Max. switching power

1000 W

Max. starting current

10 A

Material

Plastic

Response value sensitivity adjustable

No

Dim function with dimmer basic element

No

Response value luminosity

5–1000 lx

Suitable for C-load

Yes

Diameter reach on floor

6 m

Remote operation

No

HVAC-control

No

Constant light control

No

Substation input

No

With signal unit

No

Teach-function for response value luminosity

No

Networkable

No

Forced switch off

No

Scan angle

360 °

Built-in length

41.5 mm

With connection cable

No

Degree of protection (IP)

IP20

With alarm function

No

Transparent

No

Animal zone

No

Surface finishing

Glossy

Detection angle horizontal

0–360 °

Min. switch-on time

30 s

Max. duty cycle

30 min

Suitable for wall mounting

No

Response value luminosity adjustable

Yes

Optimum mounting height

2.5 m

Constant light output (CLO)

No

With DALI interface

No

IFTTT support available

No

Forced switch on

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Compatible with Casambi

No

Background monitoring

No

With acoustic sensor

No

Movement sensor/presence detector technology

Passive infrared

Sensor type

Passive infrared

Suitable for ceiling mounting

Yes

Anti-bacterial treatment

No

Country of origin

China

HS Code

8537.10

• EAN 3606480995439
• SAP 1000797934
• Code 81425159
