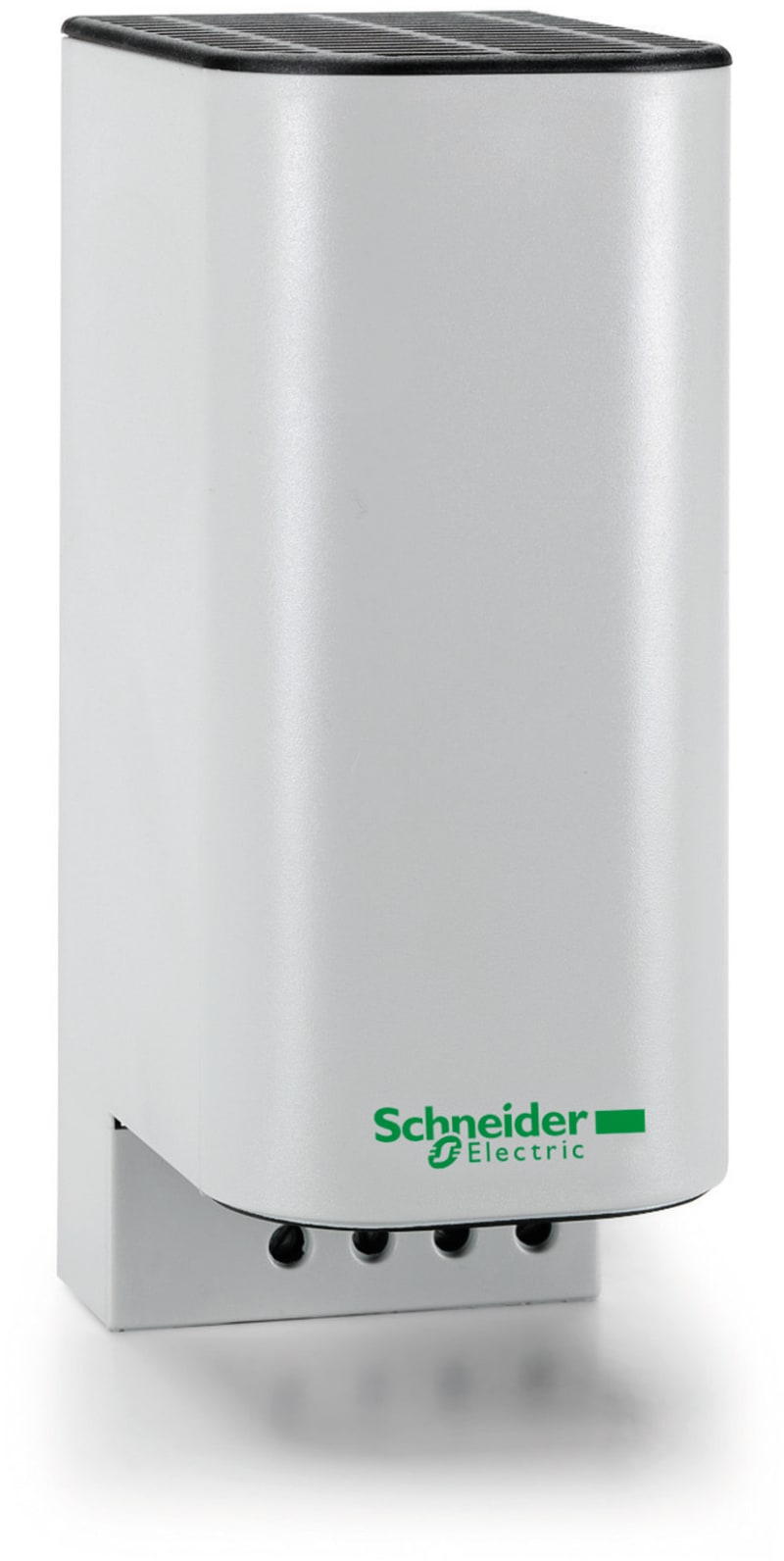

Schneider Electric ClimaSys PTC heating resistance 50W, 12-24V insulate NSYCR50WU1C
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR50WU1C Heating element 55W 12-36V DC, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR50WU1C
- EAN / GTIN
- 3606480152283
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 12-36 V
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Power range
- 50 W
- Input voltage
- 12...24 V AC/DC 50/60 Hz
- Electrical connection
- 4 screw terminals 2.5 mm²
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Electrical insulation class
- Class II
- Product certifications
- VDE
- Material
- Body: extruded aluminium; Cover: plastic
- Height
- External: 98 mm
- Width
- External: 38 mm
- Depth
- External : 75 mm
- Condition of use
- Air sealed enclosure; Heaters must be installed with a thermal controller; Electrical protection is needed
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Number of Units in Package 1
- 1
- Country of origin
- DE
- Warranty (in months)
- 18
- Voltage type
- DC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 55 W
- Continuous heating power at 10 °C
- 55 W
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 3606480152283
- SAP 1000089019
- Code 8837980
Product Documentation
More from Schneider Electric
Schneider Electric
Light Unit with blinkende LED in orange
XVB7C55
Schneider Electric
SIK.Module,LYSBOM,24VDC,Type 2 (XPSCM1144P)
Schneider Electric
Schneider Electric Floor standing enclosure polyester vers.PLA completely sealed 1250X1250X420 IP65 NSYPLA12124G
Schneider Electric

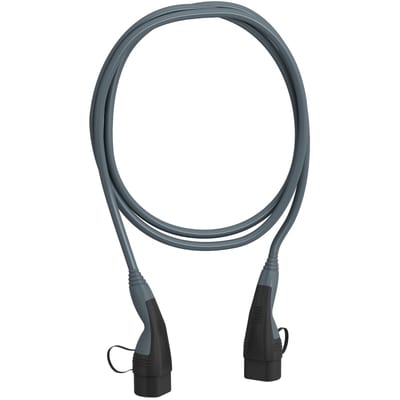

Schneider Electric Charging cable, EVlink, 7M, 32A, 3-Phase, T2 connector at each end of cable EVP1CNL32322
Schneider Electric
Schneider Electric variable speed drive, Altivar Process ATV900, ATV930, 37kW, 200 to 240V, without braking unit, IP21 ATV930D37M3C
Schneider Electric

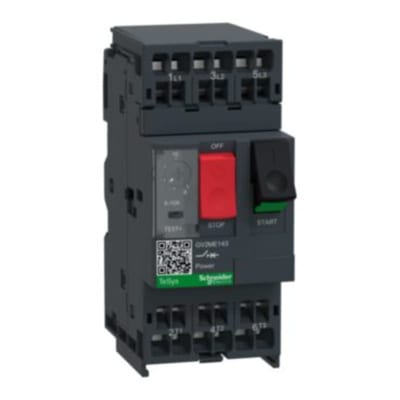

Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 6-10 A, thermal magnetic, spring terminals GV2ME143
Schneider Electric

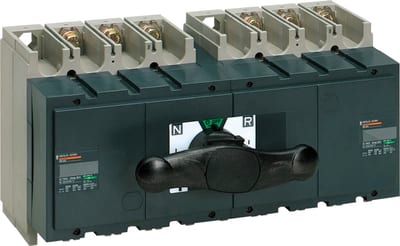

Load-break switch changeover switch INS320 3P
31148
Schneider Electric

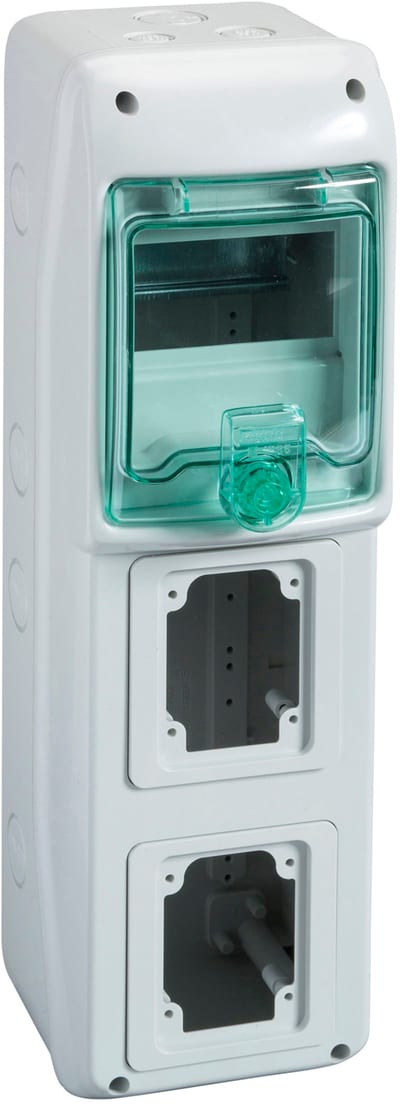

KAEDRA 5MOD, 2 openings 90X100
