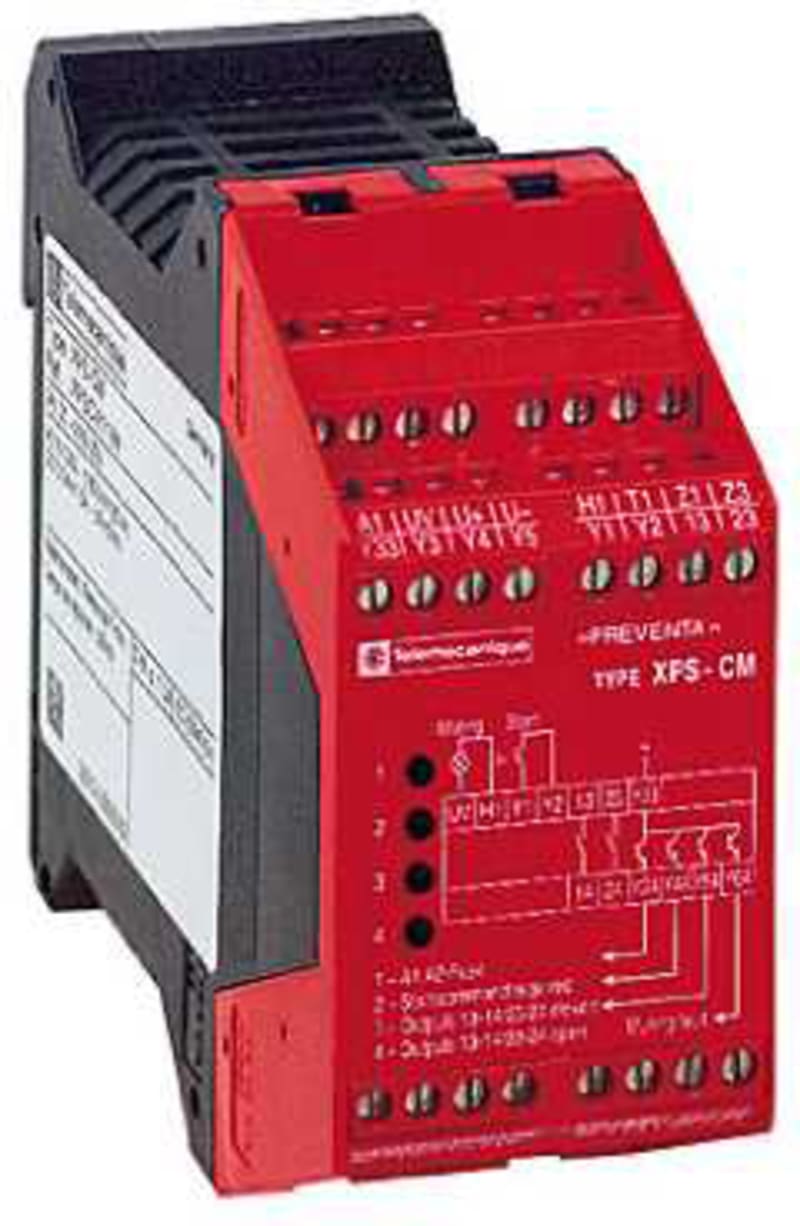

SIK.Module,LYSBOM,24VDC,Type 2 (XPSCM1144P)

Schneider Electric XPSCM1144P Safety Module for lysbom, with muting.

Manufacturer part number (MPN)

XPSCM1144P

EAN / GTIN

3389110274134

Sales unit

pcs

Package quantity

20 pcs

Voltage

24 V DC

Operating voltage DC

24 V

Power consumption

1.1 W

Supply voltage DC

24 V

Rated switch current

1.1 A

Control voltage 1

24 V

Control voltage 2

24 V

Voltage type (operating voltage)

DC

Type of control voltage 1

DC

Type of control voltage 2

DC

Model

Basic device

Suitable for monitoring of position switches

No

Suitable for monitoring of emergency-stop circuits

No

Suitable for monitoring of valves

No

Suitable for monitoring of tactile sensors

No

Suitable for monitoring of magnetic switches

No

Suitable for monitoring of proximity switches

No

Type of electric connection

Screw connection

Suitable for rail mounting

Yes

Rated control supply voltage DC

24 V

Voltage type for actuating

AC/DC

With detachable clamps

Yes

With start input

No

With muting function

Yes

With feedback circuit

No

Release-delay

0–60 s

Number of outputs, safety related, undelayed, with contact

2

Type of safety according to IEC 61496-1

1

Performance level according to EN ISO 13849-1

Level c

SIL according to IEC 61508

1

With approval for BG BIA

No

With approval according to UL

No

Width

45 mm

Height

99 mm

Depth

114 mm

Country of origin

Indonesia

HS Code

8536.41

• EAN 3389110274134
• SAP 1000028831
• Code 8504583
