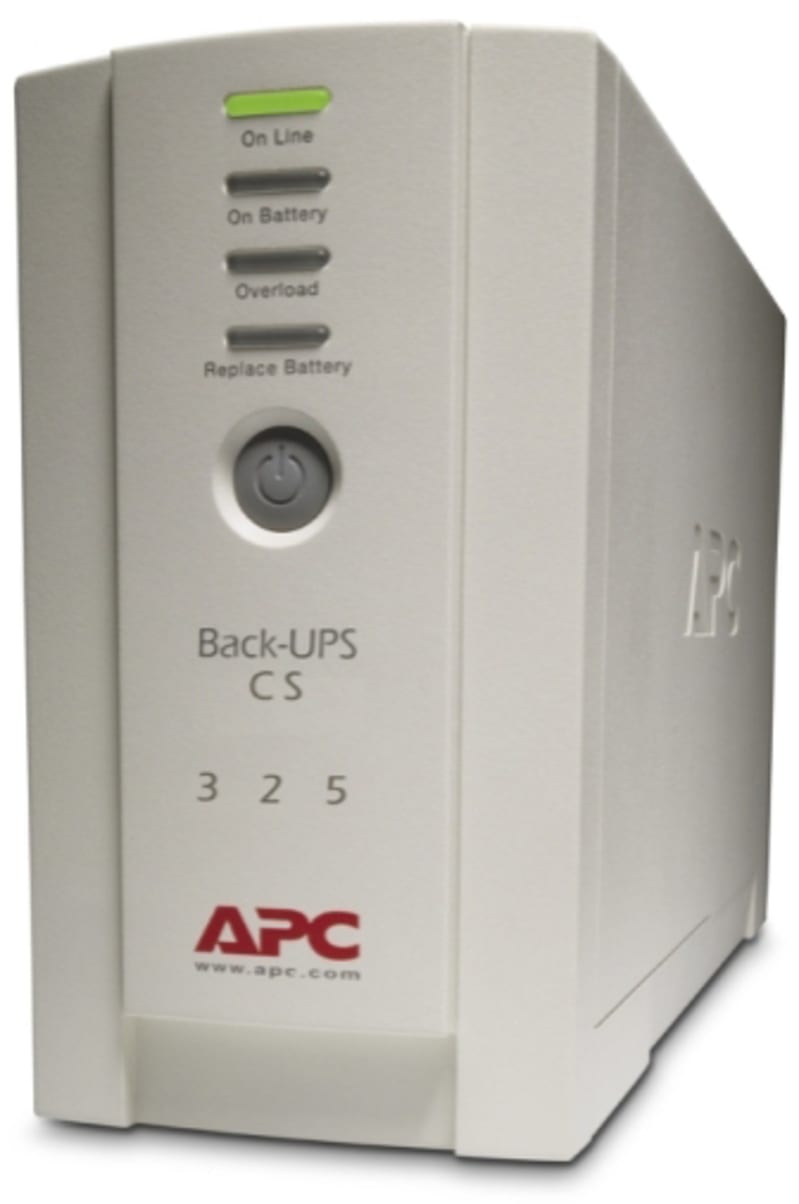

Schneider Electric APC Back-UPS CS 325VA, 230V, without auto shutdown software, 4 IEC outlets (1 surge) BK325I
Part numberBK325IEAN / GTIN0731304120506HS code8504.40
Electrical Components
UPS Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BK325I APC by Schneider Electric.
Technical Specifications
- Manufacturer part number (MPN)
- BK325I
- EAN / GTIN
- 0731304120506
- Sales unit
- pcs
- Voltage
- 230 V
- Main input voltage
- 230 V AC 1 phase
- Input connection
- IEC 60320 C14
- Maximum input current
- 7 A
- Switching current capacity
- 7 A
- Efficiency at full load
- 180...266 V
- Input frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Rated power in W
- 195 W
- Rated power in VA
- 325 VA
- Output connection
- 3 IEC 60320 C13; 1 IEC 60320 C13 surge; 2 IEC 60320
- Type of USB power supply
- None
- Maximum configurable power in VA
- 350 VA
- Maximum configurable power in W
- 210 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS topology
- Standby
- Waveform type
- Stepped approximation to a sinewave
- Output frequency
- 47...63 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised
- Replacement battery
- RBC2
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery capacity
- 7.0 Ah
- Battery type
- Lead-acid internal included
- Control panel
- LED Status display with on line : on battery
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- USB port
- Surge energy rating
- 310 J
- Noise filtering
- Full time multi-pole noise filtering : 5% IEEE surge light-through : zero clamping response time : meets UL 1449
- Number of rack unit
- 0U
- Number of cables
- 1
- Color
- Beige
- Height
- 165 mm
- Width
- 91 mm
- Depth
- 284 mm
- Product weight
- 5.73 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- Yes
- Provided equipment
- 2 x detachable IEC C13 to IEC C14 power cords; User manual
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Back-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- C-Tick; CE; GOST; VDE
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Heat dissipation
- 19 Btu/h
- Operating altitude
- 0...10000 ft
- Battery voltage
- 12 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 6 h
- RBC quantity
- 1
- Battery life
- 4…6 year(s)
- Battery charging power
- 14 W rated
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Number of Units in Package 3
- 8
- Country of origin
- PH
- Warranty (in months)
- 24 UPS|12 Battery
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304120506
- SAP 1200656185
- Code 83085328
Product Documentation
Document preview: Schneider Electric BK325I — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys K -Time delay auxiliary contact block - 1 C/O - 110...240 V - 1…30S LA2KT2U
Schneider Electric
Riflet Pilot Light Head Yellow F/LE
ZB4BV053S
Schneider Electric
Schneider Electric APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output SBP20KP
Schneider Electric
Door for PrismaSeT G CABINET-IP55-27MOD B600
LVS08327
Schneider Electric
APC Replacement Battery Cartri (APCRBC143)
Schneider Electric
Schneider Electric TeSys GV4 - magnetic circuit breaker - 50A 3P - with compression lug GV4LE50S6
Schneider Electric
Schneider Electric STD - SAE - remote control dimmer - 400 W CCTDD20002
Schneider Electric

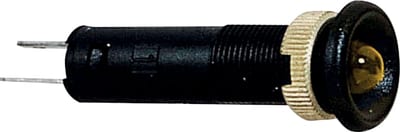

LED lamp 8mm 12V orange
