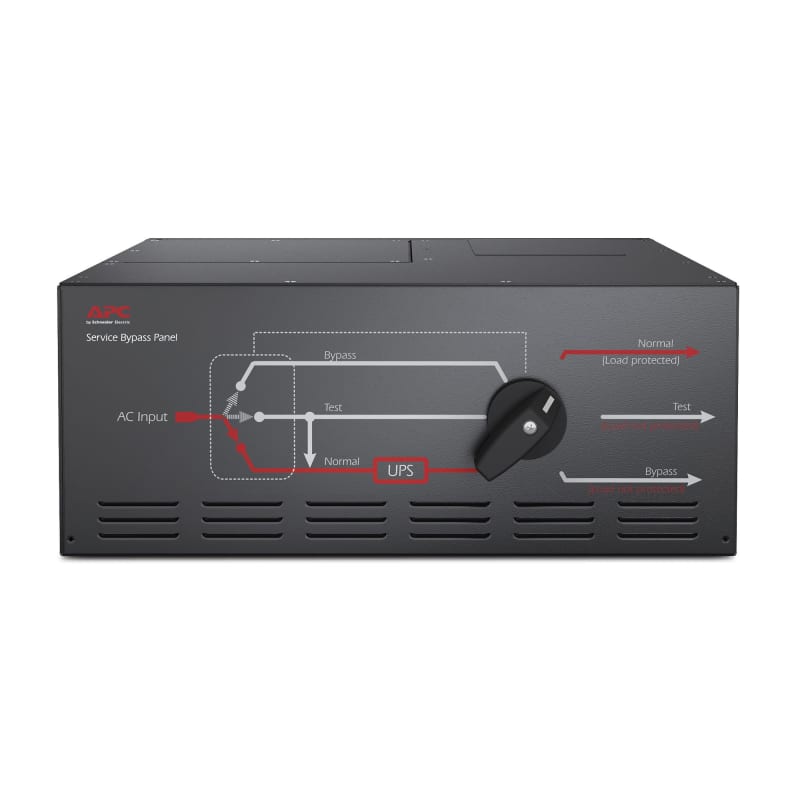

Schneider Electric APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output SBP20KP

Schneider Electric SBP20KP APC Service Bypass Panel 200/208/230/240.

Manufacturer part number (MPN)

SBP20KP

EAN / GTIN

0731304266952

Sales unit

pcs

Main Input Voltage

200 V; 208 V; 220 V; 230 V; 240 V; 380 V 3 phases; 400 V 3 phases; 415 V 3 phases

Product or component type

Bypass kit

Main Output Voltage

200 V; 208 V; 220 V; 230 V; 240 V

Output connector type

Hard wire 3-wire (H N + E) for 1 zone(s); Hard wire 3-wire (2P + E) for 1 zone(s)

Number of rack unit

4U

Number of cables

1

Provided equipment

Installation guide; Rack mounting brackets; User manual

Range of product

Maintenance Bypass Panels

Colour

Black

Height

178 mm

Width

432 mm

Depth

554 mm

Product weight

19.32 kg

Mounting location

Front

Mounting preference

Lower

mounting mode

Rack-mounted

Network frequency

50/60 Hz

Number of input connectors

1 hard wire 3-wire (H N + E); 1 hard wire 3-wire (2P + E); 1 hard wire 5-wire (3P + N + E)

permissible voltage

200…240 V

Max line current

125 A

Input current limits

125 A

Load capacity

20000 VA

Power factor

0…1

Max current draw

125 A

Protection type

Circuit breaker

Efficiency

99 %

Product certifications

CSA; GOST

Ambient air temperature for operation

-20…50 °C

Relative humidity

0…95 %

Operating altitude

0...15000 ft

Ambient air temperature for storage

-40…65 °C

Storage Relative Humidity

0…95 %

Storage altitude

0…15240 m

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

30.5 cm

Package 1 Width

84.5 cm

Package 1 Length

61 cm

Package 1 Weight

31.36 kg

Country of origin

CN

Warranty (in months)

24

HS Code

8504.40
