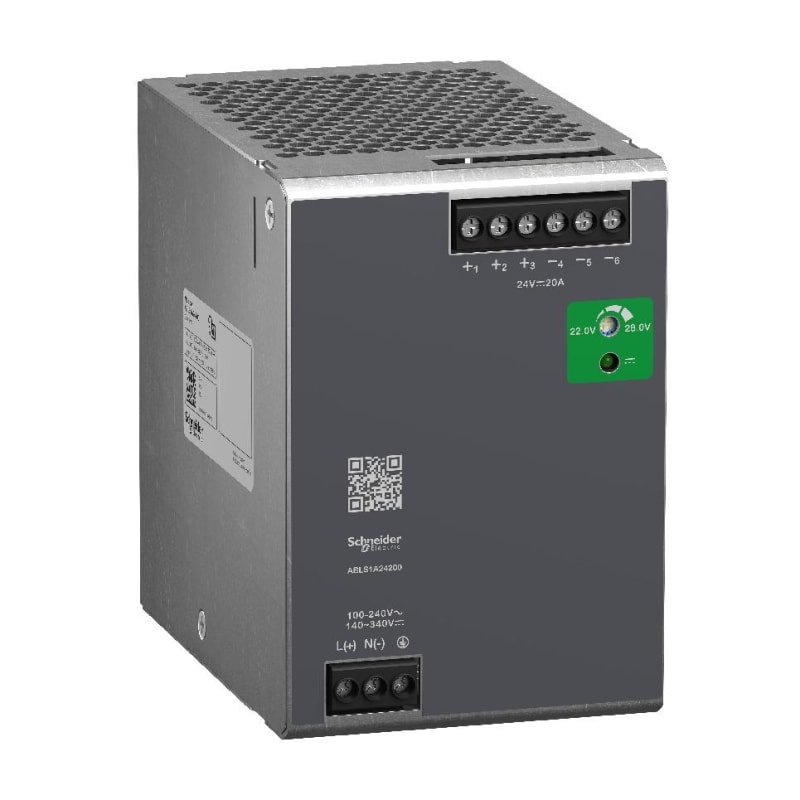

Schneider Electric Regulated Power Supply, 100-240V AC, 24V 20 A, single phase, Optimized ABLS1A24200

Schneider Electric ABLS1A24200 Switchmode power supply optimised for DIN-rail, 24VDC 480W-20A output and 100-240VAC supply.

Manufacturer part number (MPN)

ABLS1A24200

EAN / GTIN

3606481500267

Sales unit

pcs

Package quantity

7 pcs

Voltage

24 V DC

Range of product

Modicon Power Supply

Product or component type

Power supply

Power supply type

Regulated switch mode

Variant option

Optimized

Enclosure material

Aluminium

Nominal input voltage

100...240 V AC single phase; 100...240 V AC phase to phase; 140...340 V DC

Rated power in W

480 W

Output voltage

24 V DC

Power supply output current

20 A

Input voltage limits

85...264 V AC without temperature derating; 120...375 V DC without temperature derating

Nominal network frequency

50…60 Hz

Network system compatibility

TN; TT; IT

Maximum leakage current

1 mA 240 V AC

Input protection type

Integrated fuse (not interchangeable) 10 A; External protection (recommended) 20 A Curve C; External protection (recommended) 16 A Curve B; External protection (recommended) 13 A Curve C

Inrush current

45.0 A at 115 V; 90.0 A at 230 V

Power factor

0.95 at 115 V AC; 0.95 at 230 V AC

Efficiency

85 % at 115 V AC; 88 % at 230 V AC

Output voltage adjustment

22...28 V

Power dissipation in W

60 W

Current consumption

< 5.4 A 115 V AC; < 2.7 A 230 V AC; < 5 A 140 V DC

Turn-on time

< 1.5 s

Holding time

> 20 ms 115 V AC; > 20 ms 230 V AC

Startup with capacitive loads

8000 µF

Residual ripple

< 120 mV

Meantime between failure [MTBF]

700000 h at 25 °C, full load conforming to SR 332

Output protection type

Against overload and short-circuits, protection technology: automatic reset; Against over temperature, protection technology: manual reset; Against overvoltage, protection technology: manual reset

Connections - terminals

Screw connection: 0.75...4 mm², (20 AWG...12 AWG) without wire end ferrule for output; Screw connection: 0.75...4 mm², (20 AWG...14 AWG) with wire end ferrule for output; Screw connection: 0.75...4 mm², (18 AWG...12 AWG) without wire end ferrule for input; Screw connection: 0.75...4 mm², (18 AWG...12 AWG) with wire end ferrule for input

Line and load regulation

< 0.5 % at 0 to 100 % load at 25 °C; < 1 % at full voltage range in line at 25 °C

Status LED

1 LED (green) output voltage

Depth

128.5 mm

Height

123.6 mm

Width

85.5 mm

Product weight

1.25 kg

Output coupling

Parallel; Serial

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; Double-profile DIN rail

Supply

SELV conforming to IEC 60950-1; SELV conforming to IEC 60204-1; SELV conforming to IEC 60364-4-41

Dielectric strength

3000 V AC with input to output

Service life

10 year(s)

Overvoltage category

II

Standards

IEC 62368-1; EN/IEC 61010-1; EN 61010-2-201; EN/IEC 61204-3; IEC 61000-6-1; IEC 61000-6-2; IEC 61000-6-3; IEC 61000-6-4; IEC 61000-3-2; EN 61000-3-3; UL 62368-1; UL 61010-1; UL 61010-2-201; CSA C22.2 No 62368-1; CSA C22.2 No 61010-1; CSA C22.2 No 61010-2-201

Product certifications

CE; CUL listed; CUL recognized; RCM; CB Scheme; EAC; KC

Operating altitude

< 5000 m

Shock resistance

150 m/s² for 11 ms

IP degree of protection

IP20

Ambient air temperature for operation

-20…40 °C without derating mounting position A 115 V AC < 2000 m; -20…50 °C without derating mounting position A 230 V AC < 2000 m; 40…70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 2000 m; 50…70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 2000 m

Electrical shock protection class

Class I

Pollution degree

2

Vibration resistance

3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6; 10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6

Electromagnetic immunity

Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2; Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2; Immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3; Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3; Immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3; Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4; Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5; Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5; Immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6; Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8; Immunity to voltage dips conforming to IEC 61000-4-11; Disturbing field emission conforming to EN 55016-2-3; Limits for harmonic current emissions conforming to IEC 61000-3-2; conforming to EN 55016-1-2; conforming to EN 55016-2-1

Electromagnetic emission

Conducted emissions conforming to IEC 61000-6-3; Radiated emissions conforming to IEC 61000-6-4

Number of Units in Package 1

1

Number of Units in Package 2

7

Number of Units in Package 3

168

Country of origin

TH

Warranty (in months)

18

Voltage type (supply voltage)

AC

Max. output current 1

20 A

Nominal value output voltage 1

24 V

Nominal value output current 1

20 A

Power output

480 W

Type of electric connection

Screw connection

Wall mounting possible

No

Built-in width

85.5 mm

Built-in height

123.6 mm

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Degree of protection (IP)

IP20

HS Code

8504.40
