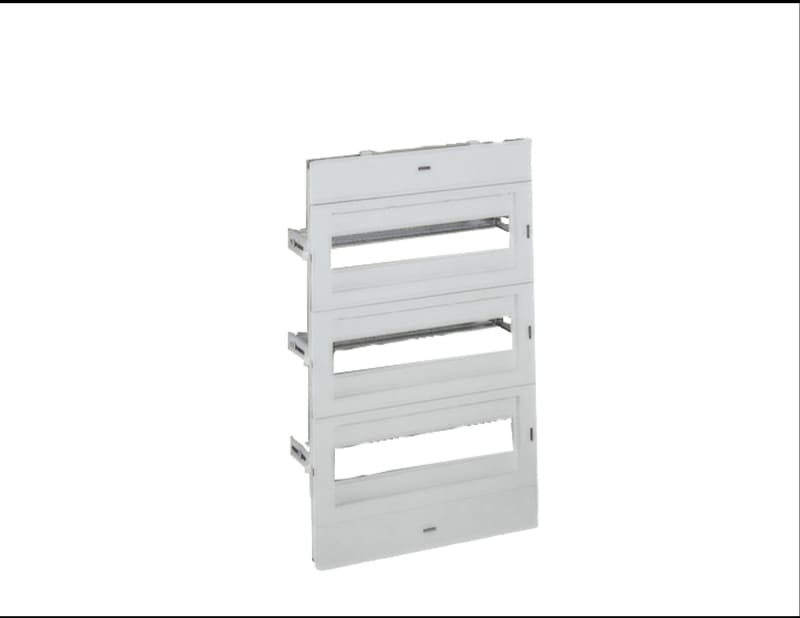

Mod.Cover (NSYDLA88G)

Schneider Electric NSYDLA88G Mod.Cover.

Manufacturer part number (MPN)

NSYDLA88G

EAN / GTIN

3606480773877

Sales unit

pcs

Package quantity

25 pcs

Range

PanelSeT

Accessory / separate part category

Mounting accessory

Application

Multi-purpose; Modular distribution application

Product or component type

Chassis

Device short name

DLA

For enclosure nominal dimensions

-

Mounting location

Front of enclosure

Range compatibility

PanelSeT S3D; PanelSeT CRN; PanelSeT PLM

Device composition

1 chassis structure; 4 front panels with 35 mm DIN rail; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²

Quantity per set

Set of 1

Material

Front panel: self-extinguishing insulating; Chassis structure and rails: steel

Colour

Front panel: grey (RAL 7035)

Fixing mode

By fixing element - on front with supports location

Adjustment

In height from 40 to 85 mm for DIN rail

Number of horizontal rows

4

Total number of 18 mm modules

86

Type of front plate

Plain and cut-out plates

Number of cut-out

4 cut-outs

Height

680 mm

Width

460 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

14.500 cm

Package 1 Width

49.000 cm

Package 1 Length

68.000 cm

Package 1 Weight

6.114 kg

Unit Type of Package 2

PAM

Number of Units in Package 2

24

Package 2 Height

124.000 cm

Package 2 Width

100.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

158.730 kg

Country of origin

ES

Warranty (in months)

18

Type of covering

With notch

Number of DIN-rails

4

Number of modular spacings per DIN-rail

22

HS Code

8538.10

• EAN 3606480773877
• SAP 1000752304
• Code 8487111
