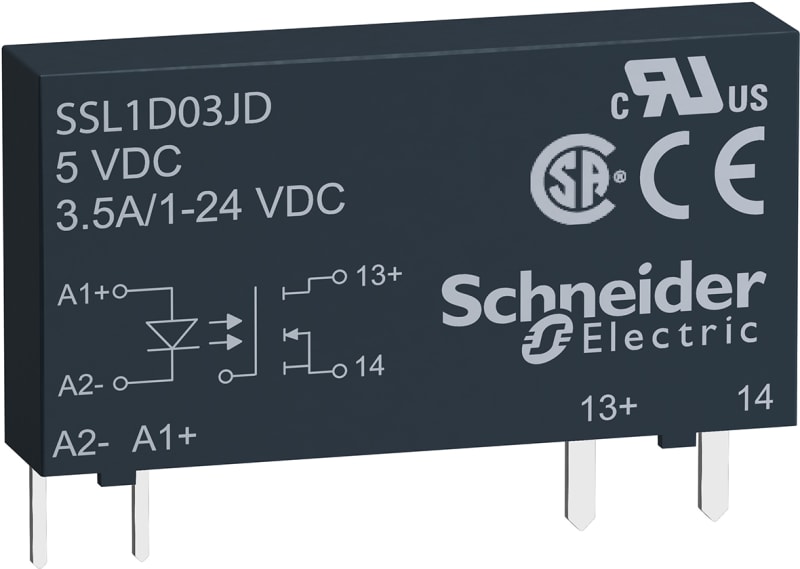

Schneider Electric Solid state relay, 3.5 A, DC switching, input 3…12 V DC, output 1...24 V DC SSL1D03JD

Schneider Electric SSL1D03JD 1 Phase SSR 24VDC 3,5A 12V.

Manufacturer part number (MPN)

SSL1D03JD EAN / GTIN: 3606480579646 Sales unit: pcs Package quantity: 10 pcs Voltage: 24 V DC Range of product: Harmony Solid State Relays Device short name: SSL Network number of phases: 1 phase [Uc] control circuit voltage: 3...12 V Output switching mode: DC switching Ui rated insulation voltage: 30 V Insulation resistance: > 100 MOhm at 500 V DC Electromagnetic compatibility: Electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2; Conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6; Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m criteria A (80 MHz to 1 GHz) conforming to IEC 61000-4-3; Radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m criteria A (1.4…6 GHz) conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4; Surge immunity test - test level: 0.5 kV criteria B (line to line) conforming to IEC 61000-4-5; Surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5; Radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1; Conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage: 3.5 kV for input to case conforming to IEC 62314; 3.5 kV for input/output circuit conforming to IEC 62314; 3.5 kV for input/output circuit conforming to UL 508; 3.5 kV output to case conforming to IEC 62314; 3.5 kV output to case; 3.5 kV for input to case conforming to UL 508; 3.5 kV output to case conforming to UL 508 Mounting support: Socket [In] rated current: 3.5 A Output voltage: 3...30 V DC Capacitance unbalance: 2.5 pF input/output minimum switching voltage: 3 V DC turn-on Maximum switching voltage: 1 V DC turn-off Input current: 10 mA Input impedance: 500 Ohm Solid state output type: Mosfet output; DC switching Load current: 0.001…3.5 A Transient Overvoltage: 35 V Maximum operating frequency: 500 Hz Surge current: 9 A for 10 ms Maximum voltage drop: <0.5 V on-state Maximum leakage current: 0.001 mA off-state Response time: 0.12 ms (turn-on); 0.1 ms (turn-off) Overvoltage category: III Width: 5 mm Height: 28 mm Depth: 15 mm Product weight: 0.0041 kg Device presentation: Complete product Flame retardance: V0 conforming to UL 94 Dielectric strength: 2500 V for input/output Pollution degree: 2 Standards: IEC/EN 60947-1; IEC/EN 62314; UL 508; C22.2 No. 14 Product certifications: cURus; CSA; EAC; CE; UKCA Marking: CE IP degree of protection: IP00 Ambient air temperature for operation: -20…80 °C Ambient air temperature for storage: -20…85 °C Number of Units in Package 1: 1 Number of Units in Package 2: 12 Number of Units in Package 3: 1080 Country of origin: MX Warranty (in months): 18 Degree of protection (IP): IP00 Rated control supply voltage DC: 3–12 V Voltage type for actuating: DC Operating voltage: 1–24 V Rated operation current Ie at AC-1: 3.5 A Rated operation current Ie at AC-3: 3.5 A Rated operation current Ie at AC-51: 3.5 A Rated operation current Ie at AC-53a: 3.5 A Rated operation current Ie at AC-53b: 3.5 A Number of phases: 1 Suitable for distribution board: Yes Switching at zero-crossing: No
