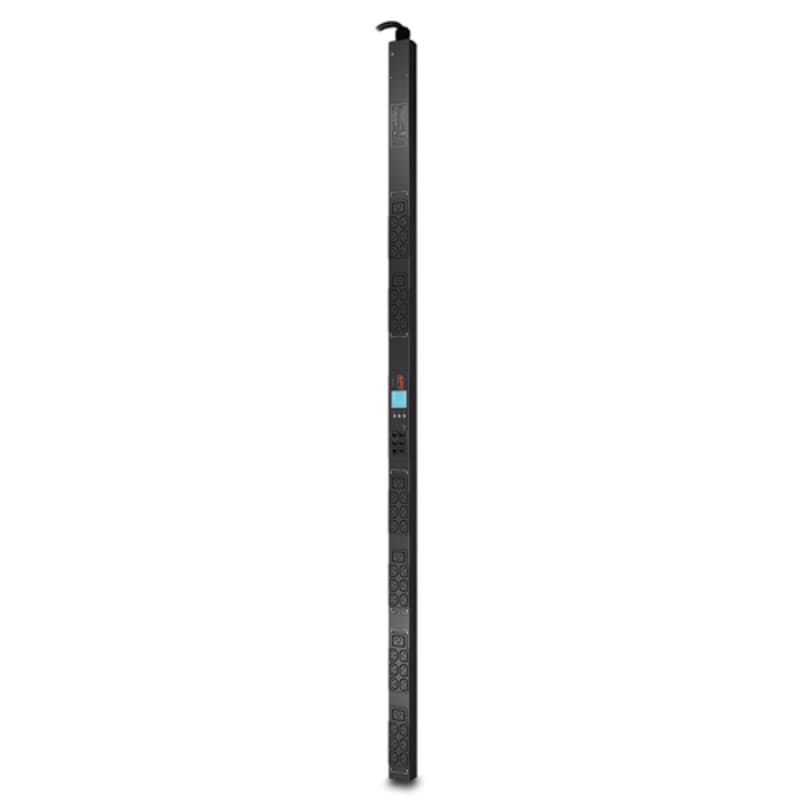

Schneider Electric APC NetShelter Metered Rack PDU, 0U, 3PH, 11kW 230V 16A or 11kW 230V 16A, 36 C13 and 6 C19 outlets, IEC 309 3P+N+PE cord AP8881

Schneider Electric AP8881 Rack PDU 2G, Metered, ZeroU, 11kW, 230V,.

Manufacturer part number (MPN)

AP8881

EAN / GTIN

0731304277071

Sales unit

pcs

Voltage

230 V

Power

11 kW

Presentation

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Colour

Black

Product or component type

PDU

PDU type

Metered

Cord length

1.82 m

Number of cables

1

Provided equipment

Installation guide; Rack mounting brackets; Serial configuration cable; Safety guide

Input Voltage

400 V 3 phases

Height

1791 mm

Width

55 mm

Output Voltage

230 V

Depth

44 mm

Product weight

6.38 kg

Mounting location

Side

Mounting preference

No preference

Input Plug Type

IEC 60309 16 A 3P + N + PE; IEC 60309 20 A 3P + N + PE

mounting mode

Rack-mounted

Rack units

0U

USB compatible

No

Mounting position

Vertical

[In] rated current

16 A

Max line current

16 A

Input current limits

16 A

Load capacity

11000 VA

Network frequency

50/60 Hz

Outlet type and quantity

36 IEC 60320 C13 ; 6 IEC 60320 C19

Product certifications

VDE

Standards

CSA C22.2 No 60950; IEC 60950; UL 60950-1

Ambient air temperature for operation

-5…60 °C

Relative humidity

5…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0…15240 m

Number of Units in Package 1

1

Country of origin

IN

Warranty (in months)

24

Nominal current

16 A

Mounting direction

Vertical

Electrical connection

Connection cable with plug

Cable length

1.8 m

Number of C13 socket outlets

36

Number of C19 socket outlets

6

Length

44 mm

Supply voltage

400 V

Overvoltage category

1

Interface ethernet

Yes

HS Code

8537.10
