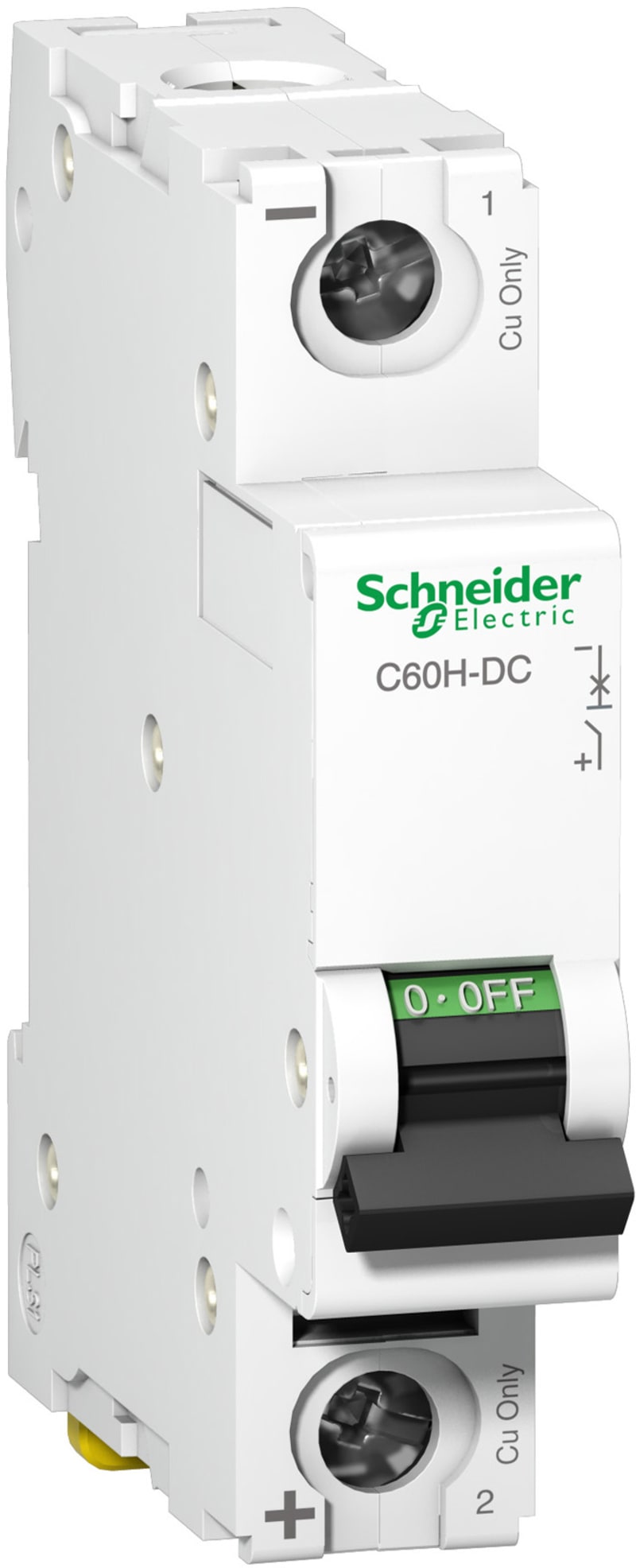

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C60H-DC, 1P, 20A, C curve, 6KA (IEC/EN 60947-2) A9N61512
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9N61512 Miniature circuit breaker C60H-DC 20A 1P/C.
Technical Specifications
- Manufacturer part number (MPN)
- A9N61512
- EAN / GTIN
- 3606480424137
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Rated current
- 20 A
- Number of poles
- 1P
- Range
- Acti9
- Product name
- Acti9 C60H-DC
- Product or component type
- Miniature circuit-breaker
- Device short name
- C60H-DC
- Device application
- Distribution
- Poles description
- 1P
- Number of protected poles
- 1
- [In] rated current
- 20 A at 25 °C
- Network type
- DC
- Trip unit technology
- Thermal-magnetic
- Curve code
- C
- Breaking capacity
- 10 kA Icu at 220 V DC conforming to EN 60947-2; 10 kA Icu at 220 V DC conforming to IEC 60947-2; 6 kA Icu at 250 V DC conforming to EN 60947-2; 6 kA Icu at 250 V DC conforming to IEC 60947-2; 20 kA Icu at 110 V DC conforming to EN 60947-2; 20 kA Icu at 110 V DC conforming to IEC 60947-2
- Utilisation category
- Category A conforming to EN 60947-2; Category A conforming to IEC 60947-2
- Suitability for isolation
- Yes conforming to IEC 60947-2; Yes conforming to EN 60947-2
- Standards
- EN 60947-2; IEC 60947-2
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 250 V DC
- [Ics] rated service breaking capacity
- 15 kA 75 % conforming to EN 60947-2 - 110 V DC; 15 kA 75 % conforming to IEC 60947-2 - 110 V DC; 4.5 kA 75 % conforming to EN 60947-2 - 250 V DC; 4.5 kA 75 % conforming to IEC 60947-2 - 250 V DC; 7.5 kA 75 % conforming to EN 60947-2 - 220 V DC; 7.5 kA 75 % conforming to IEC 60947-2 - 220 V DC
- [Ui] rated insulation voltage
- 500 V DC conforming to IEC 60947-2; 500 V DC conforming to EN 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to EN 60947-2; 6 kV conforming to IEC 60947-2
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON/OFF indication
- mounting mode
- Fixed
- Mounting support
- 35 mm symmetrical DIN rail
- Comb busbar and distribution block compatibility
- Top or bottom: standard
- 9 mm pitches
- 2
- Product weight
- 0.128 kg
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 3000 cycles L/R = 2 ms
- Provision for padlocking
- Padlockable
- Locking options description
- In position O
- Tightening torque
- Power circuit: 2.5 N.m top or bottom
- Earth-leakage protection
- Without
- Pollution degree
- 3 conforming to EN 60947-2; 3 conforming to IEC 60947-2
- Overvoltage category
- IV
- Tropicalisation
- 2 conforming to IEC 60068-2
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480424137
- SAP 1000326303
- Code 8877135
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Push button, Merten System Design, KNX secure, universal module, black, Supply KNX 16 mA MTN6194-6010S
Schneider Electric
M340 Cable FCN-2*HE, 3M
BMXFCC303
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi C120, 2P, 125A, A type, instantaneous, 30MA, 230...240VAC A9N18572
Schneider Electric
ASD 531 aspiration unit
FFS06432669
Schneider Electric
Schneider Electric TeSys LE - enclosed DOL starter - 25 A - 230 V AC coil LE1D25P7
Schneider Electric
Schneider Electric Soft starter, Altistart 480, 1200A, 208 to 690V AC, control supply 110 to 230V AC ATS480M12Y
Schneider Electric

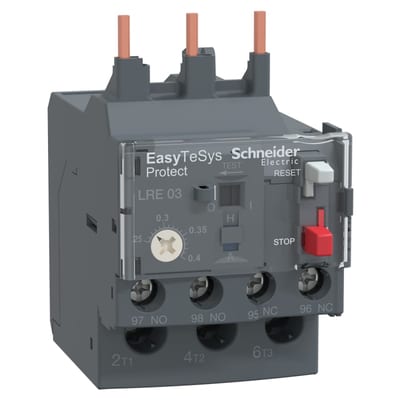

Overload relay Easy TeSys,0.25-0.4A
LRE03
Schneider Electric

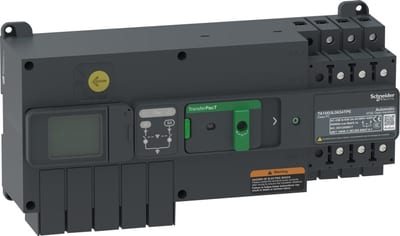

Schneider Electric transfer switch, TransferPacT Active automatic, 50A, 400V, 3P, LCD,frame 100A TA10D3L0504TPE
