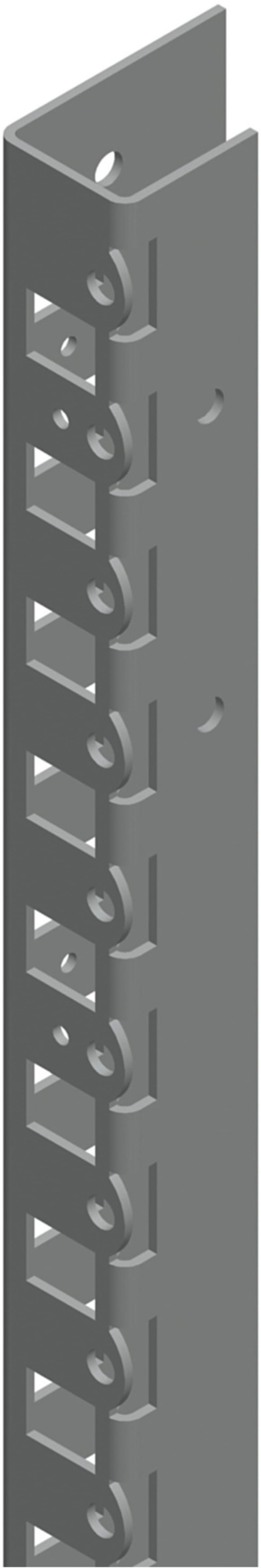

Schneider Electric PanelSeT SM vertical adaptation profiles - 2000 mm NSYSMVR20
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSMVR20 2 vertical profiles 2000.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSMVR20
- EAN / GTIN
- 3606480146664
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Adaptation profile
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Range compatibility
- PanelSeT PanelSeT SM
- Mounting location
- Front and rear of enclosure
- Installation direction
- Vertical
- Device composition
- fixing screws; 2 profile
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws - on screws of hinges and latches location
- Height
- Nominal: 2000 mm; Real: 1906 mm
- Width
- 42 mm
- Depth
- 24.5 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 5.000 cm
- Package 1 Length
- 191.000 cm
- Package 1 Weight
- 3.138 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 100
- Package 2 Height
- 35.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 345.800 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of height units
- 40
- Model
- Metric
- Surface finishing
- Powder coating
- Length
- 2000 mm
- Mounting method
- Screw mounting
- Profile height busbar
- 42 mm
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480146664
- SAP 1000317639
- Code 81015357
Product Documentation
More from Schneider Electric
Schneider Electric
Mod.Cover (NSYDLA88G)
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi IC60, 4P, 63A, A-SI type, instantaneous, 30MA, 400...415VAC A9V61463
Schneider Electric

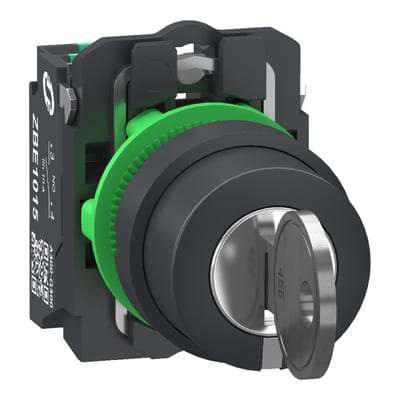

Schneider Electric Key switch selector, Harmony XB5, plastic, black, 22mm, key 455, 3 positions, stay put, key release 3 pos, 2 NO, push in XB5AG035
Schneider Electric
SSD535-3 aspirating detector
FFS06432547
Schneider Electric

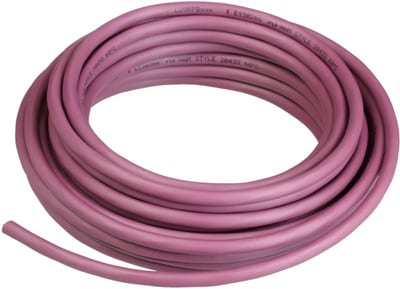

Profibus DP cable 100M
LU9RPB100
Schneider Electric

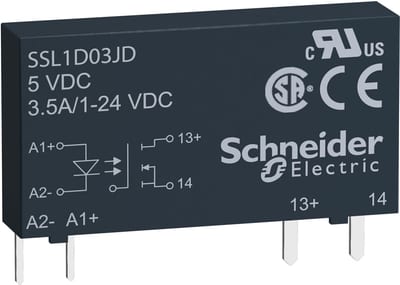

Schneider Electric Solid state relay, 3.5 A, DC switching, input 3…12 V DC, output 1...24 V DC SSL1D03JD
Schneider Electric

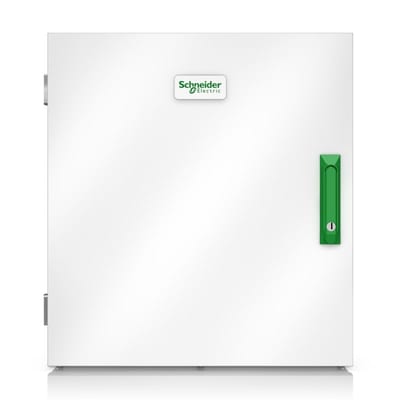

Easy UPS maintenances Bypass
E3SOPT006
Schneider Electric

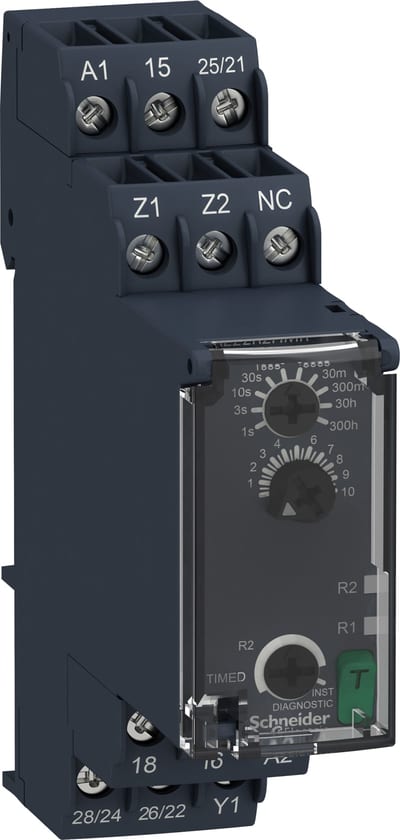

Schneider Electric Interval Timing Relay - 0.05S…300H - 24…240V AC/DC - 2C/O RE22R2HMR
