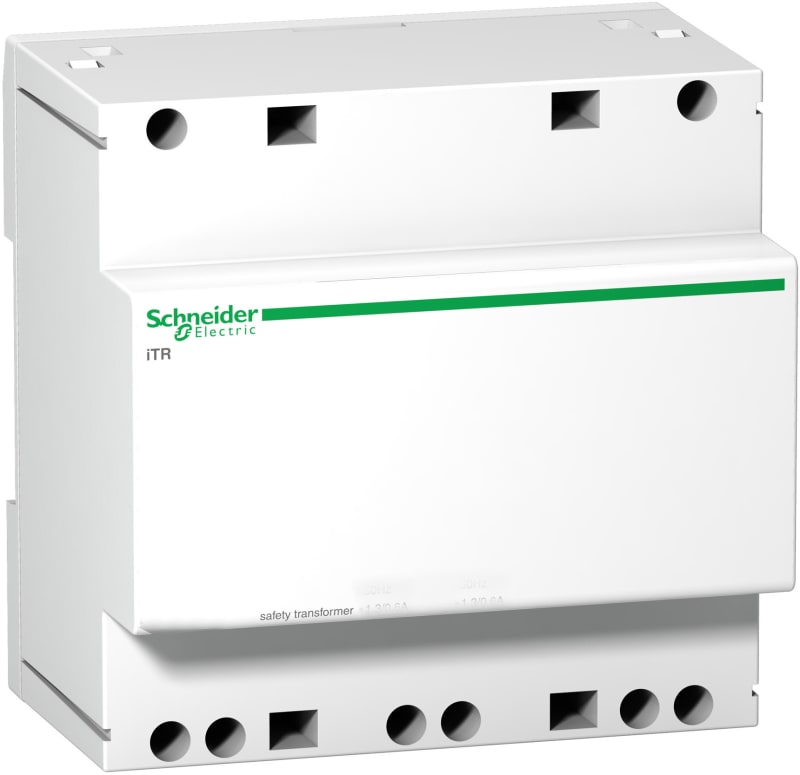

Schneider Electric modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 25 VA A9A15219

Schneider Electric A9A15219 Isolating Transformer iTR 25Va,12/24V.

Manufacturer part number (MPN)

A9A15219

EAN / GTIN

3606480097812

Sales unit

pcs

Package quantity

14 pcs

Transformer type

Safety transformer

Range

Acti9

Range of product

Acti9

Product name

Acti9 iTR

Product or component type

Transformer

Device short name

iTR

[Ue] rated operational voltage

230 V AC 50 Hz

Output voltage

12/24 V: +/-5 % on load; 14/28 V: off load

Output short-circuit protection

Built-in

rated power in VA

25 VA

Temperature derating table

25 VA 35 °C; 23.75 VA 40 °C; 20 VA 50 °C; 15 VA 55 °C; 11.25 VA 60 °C

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

10

Height

89 mm

Width

90 mm

Depth

60 mm

Colour

White

Auxiliary connection terminal

Tunnel type terminals 4 mm²

Wire stripping length

5 mm

Tightening torque

0.5 N.m

Standards

EN 61558-2-6; IEC 61558-2-6; EN 60742

Product certifications

NF

Overvoltage category

Class II with terminal shields in option

Ambient air temperature for operation

-20…55 °C

Ambient air temperature for storage

-25…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

8

Country of origin

DE

Warranty (in months)

18

Type of transformer

Safety transformer

With on/off switch

No

Length

60 mm

Width in number of modular spacings

5

Surface mounting

No

Short-circuit protected

Yes

Primary voltage

230 V

Secondary voltage 1

12 V

Secondary voltage 2

24 V

Secondary amperage 1

2 A

Secondary amperage 2

1 A

Temperature protection

Yes

Max. power loss

4 W

Flush-mounted installation

No

HS Code

8504.31
