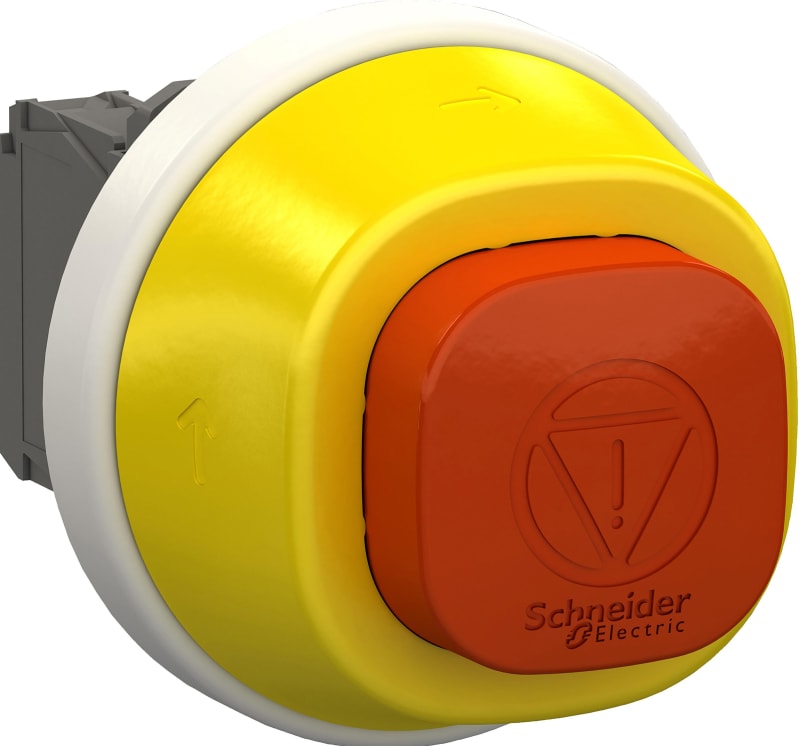

Schneider Electric Illuminated emergency stop, Harmony XB5, plastic, 22mm, trigger latching turn to release, white red LED, 24V AC DC, 1 NO + 1 NC XB5AS84W3B5

Schneider Electric XB5AS84W3B5 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Emergency stop square with push/turn and LED with red and white colour NO+NC 24V.

Manufacturer part number (MPN)

XB5AS84W3B5

EAN / GTIN

3606489745615

Sales unit

pcs

Package quantity

40 pcs

Voltage

24 V

Contact configuration

NO + NC

Range of product

Harmony XB5

Product or component type

Emergency stop push-button; Emergency switching off push-button

Device short name

XB5

Bezel material

Plastic

Fixing collar material

Plastic

Head type

Standard

Mounting diameter

22 mm

Sale per indivisible quantity

1

Local signalling

Red LED / white LED 24 V AC/DC

Light source

Protected LED

Supply voltage

24 V

Light source colour

White; Red

Shape of signaling unit head

Round

Type of operator

trigger action and mechanical latching

Reset

Turn to release

Operator profile

Red square 32 mm, IEC

Contacts type and composition

1 NO + 1 NC

Contact operation

Slow-break

Connections - terminals

Screw-clamp terminals, = 1 x 0.22 mm² with or without cable end conforming to IEC 60947-1

Device presentation

Complete product

[Us] rated supply voltage

24 V AC/DC at 50/60 Hz

Height

60 mm

Width

60 mm

Depth

85 mm

Terminals description ISO n°1

(1-2)NC; (3-4)NO

Product weight

0.107 kg

Electrical insulation class

Class II conforming to IEC 61140

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Device mounting

Fixing hole - diameter: 22.5 mm +/- 0.2 mm; Fixing hole - diameter: 9 mm +/- 0.5 mm

Fixing mode

Fixing nut (+/- 0.2)

Contacts usage

Standard

Positive opening

With NC contact conforming to IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state); 4.3 mm (total travel)

Mechanical durability

300000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

Resistance to electrostatic discharge

4 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50E; Type 12 conforming to UL 50E; Type 4 conforming to UL 50E; Type 4X conforming to UL 50E

IK degree of protection

IK05 conforming to IEC 50102

Standards

IEC 60947-5-1; IEC 60947-5-4; UL 508; ISO 21702; ISO 22196:2011; UL 60947-5-5; IEC 60947-5-5; NISD

Product certifications

UL listed; CSA; EAC; CCC

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Warranty (in months)

18

Unlocking method

Turn-release

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Degree of protection (IP)

IP66

Mounting method

Built-in

With lighting

Yes

Supply voltage lamp

24 V

Hole diameter

22.5 mm

Connection type auxiliary circuit

Screw connection

Diameter cap

22 mm

Country of origin

Czechia

HS Code

8536.50
