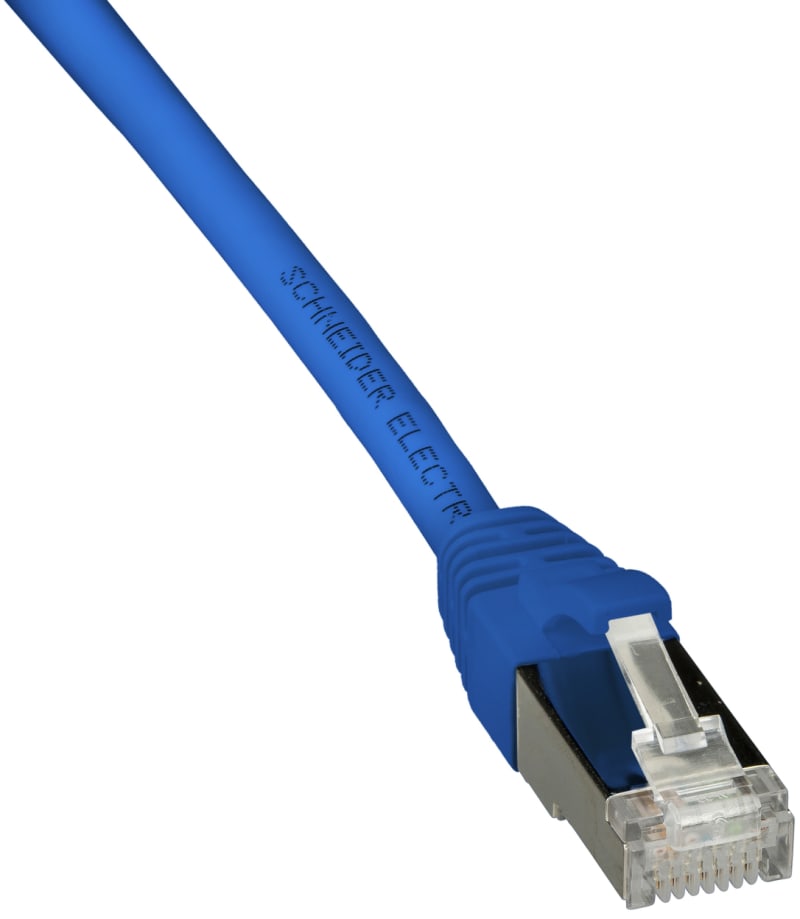

Schneider Electric Patch cord, Actassi, Category 6A, S/FTP, LSZH, 1 m, blue ACTPC6ASFLS10BU
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ACTPC6ASFLS10BU Actassi patch cord Cat 6A S/FTP AWG28 halogen-free LSZH, 1 meter, blue.
Technical Specifications
- Manufacturer part number (MPN)
- ACTPC6ASFLS10BU EAN / GTIN: 3606481051721 HS code: 8544.42 Sales unit: pcs Package quantity: 100 pcs Rated current: 6 A range: Actassi product: Patch cord Device application: Communication Colour: Blue Cable shielding type: S/FTP Type of cable: 4 pair cables length (customizable value in configurator): 1 m Communication network category: 6A Transmission frequency: 500 MHz Contacts material: Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel AWG gauge: 28 AWG Maximum number of cord per bundle: 48 in cabinet for 4PPoE Type 3 (up to 60 W); 24 in cabinet for 4PPoE Type 4 (up to 90 W) Maximum patch cord cumulated length: 10 m with 84 m 2-point permanent link at 20 °C; 7 m with 90 m 2-point permanent link at 20 °C minimum number of matings: 750 cycles Cable outer diameter: 5.5 mm +/- 0.2 mm material: Copper: conductor; PE (polyethylene): wire insulation; Aluminium/polyester: foil; Tin plated copper: braid shield; PE (polyethylene): sheath Flame retardance: LSZH Standards: ISO/IEC 11081-2017 performance; TIA/EIA-568-C.2 performance; EN 50173-2018 performance; IEC 61935-2 performance Warranty (in months): 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481051721
- SAP 1200537709
- Code 82699948
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 3P+N, 25A, C curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P54725
Schneider Electric
Schneider Electric A9F06616 ACTI9 IC60H Miniature Circuit Breaker 1P+N 16 A, Curve B
Schneider Electric
Schneider Electric Switch, New Unica, 1-Pole 2-Way, 10AX, 2 modules, white NU320318
Schneider Electric
Schneider Electric Socket, Mureva PK, panel-mounted, fast connection, 32A, 2P+E, 220V, IP44 PKY32F423
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40N, 3P+N, 10A, C curve, 6000A, A-SI type, 30MA A9DF3710
Schneider Electric
Flatcable 2XHE10, 2M
TSXCDP202
Schneider Electric
Schneider Electric Socket, Mureva PK, wall-mounted, angled, 16A, 3P+E, 400V, IP67 PKF16W734
Schneider Electric
Heat detector AP200 52051REI
FFS06710611
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ACTPC6ASFLS10BU?
- ACTPC6ASFLS10BU can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ACTPC6ASFLS10BU.
- What is the HS code for ACTPC6ASFLS10BU?
- The customs tariff (HS) code for ACTPC6ASFLS10BU is 8544.42.
- Who manufactures ACTPC6ASFLS10BU?
- ACTPC6ASFLS10BU is a Schneider Electric product in the Cables & Wiring range.
- Is a datasheet available for ACTPC6ASFLS10BU?
- Yes — the ACTPC6ASFLS10BU datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ACTPC6ASFLS10BU?
- The minimum order quantity is 1.
- Is ACTPC6ASFLS10BU available?
- Yes — ACTPC6ASFLS10BU is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
