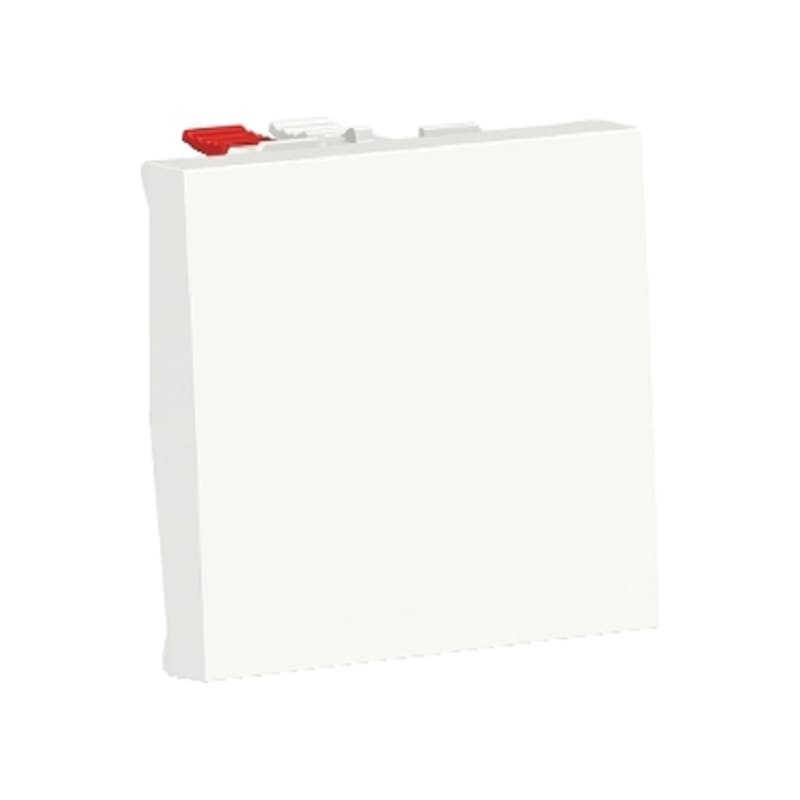

Schneider Electric Switch, New Unica, 1-Pole 2-Way, 10AX, 2 modules, white NU320318
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NU320318 2 way switch 10A - 2 module - white.
Technical Specifications
- Manufacturer part number (MPN)
- NU320318 EAN / GTIN: 3606489455064 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Rated current: 10 A Range of product: New Unica Product or component type: Switch Device presentation: Mechanism with cover plate Technology type: Electromechanical Switch function: 1-pole 2-way Number of rocker: 1 Device application: Light control Colour tint: White (RAL 9003) Type of packing: Flow-pack [Ue] rated operational voltage: 250 V Network type: AC Network frequency: 50/60 Hz Electrical durability: 20000 cycles, cos phi = 0.6 Insulation resistance: > 5 MOhm at 500 V Dielectric strength: 2000 V minimum load breaking capacity: 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 Opening distance: > 3 mm Actuator: Rocker Number of modules: 2 modules Connections - terminals: Screwless terminals Cable cross section: 0…2.5 mm² rigid cable ; 0…2.5 mm² flexible cable material: Thermoplastic ABS-UV stabilised: mechanism rocker; PC (polycarbonate) GF10 FR: casing; CuZn37: terminals; PBT (polybutylene terephthalate) GF30: release button Marking: Without marking Surface finish: Glossy specific treatment - integrated within the material: Untreated Device mounting: Flush fixing mode: Clip-in Width: 45 mm Height: 45 mm Depth: 34.25 mm Embedding depth: 21.15 mm Product weight: 0.0189 kg Ambient air temperature for operation: -5…40 °C Ambient air temperature for storage: -5…50 °C Standards: EN 60669-1; LV directive; EMC directive Product certifications: CE; AENOR; EAC; NF; VDE resistance to chemical agents: Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane IP degree of protection: IP4X IK degree of protection: IK04 Environmental characteristic: Oil; UV resistant; Acetone; Liquid soap; Window-cleaning fluid; Petrol; Alcohol; Bleach Warranty (in months): 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489455064
- SAP 1200495916
- Code 82624818
Product Documentation
