Rail 4L 448 MM (AK5JB144)

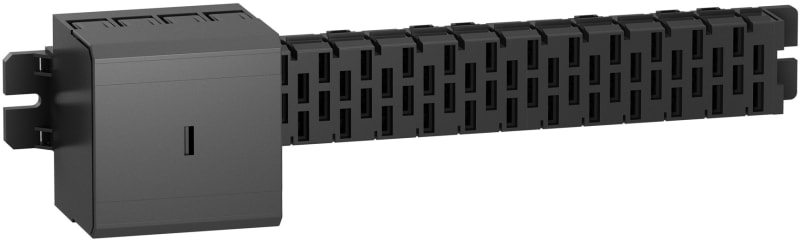

Schneider Electric AK5JB144 Busbar 4L 448 mm.

Manufacturer part number (MPN)

AK5JB144

EAN / GTIN

3389110576795

Sales unit

pcs

Package quantity

30 pcs

Range

Linergy

Product name

HK

Product or component type

Busbar

Device application

Distribution

Tap-offs (18 mm)

18

Bar length

452 mm

Enclosure/cubicle width

800 mm

Network type

AC

[Ie] rated operational current

160 A at 35 °C

[Ue] rated operational voltage

400 V (off-load plugging-in and unplugging, with supply switched on) conforming to IEC 60439-1; 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to CSA; 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to UL; 600 V (plugging-in and unplugging, with supply switched off) conforming to CSA; 600 V (plugging-in and unplugging, with supply switched off) conforming to UL; 690 V (plugging-in and unplugging, with supply switched off) conforming to IEC 60439-1

Number of conductors

4

Bar width

45 mm

Width

81 mm

Depth

82 mm

Network frequency

50/60 Hz

[Ui] rated insulation voltage

600 V conforming to CSA; 600 V conforming to UL; 690 V conforming to IEC 60439-1

Peak current

25 kA

I²t on activation

10000000 A².s

Protection type

AM fuses In = 160 A, Isc = 100 kA, Ie = 160 A; GF fuses In = 160 A, Isc = 100 kA, Ie = 160 A; NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A; NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A

Connections - terminals

Connector 2.5…70 mm² flexible with cable end; Connector 2.5…70 mm² rigid

Tightening torque

10 N.m

Mounting position

Vertical mounting using side stop AK5BT01 on mounting plates AK5PA; Horizontal mounting

Flame retardance

V0 conforming to UL 94

Product weight

0.9 kg

Standards

IEC 60439

Product certifications

UL; CSA; DNV; LROS (Lloyds register of shipping)

IP degree of protection

IPxx B conforming to IEC 60529

Fire resistance

850 °C conforming to IEC 60695

Number of Units in Package 1

1

Number of Units in Package 2

30

Country of origin

FR

Warranty (in months)

18

Colour

Grey

Model

Single

Height

81 mm

Flexible

No

RAL-number

7021

Number of poles

4

Length

452 mm

Degree of protection (IP)

IP20

Rated voltage AC 50 Hz

400–690 V

Number of tap-off units

18

Rated current AC 50 Hz

160 A

HS Code

8536.90

• EAN 3389110576795
• SAP 1000003076
• Code 8469411
