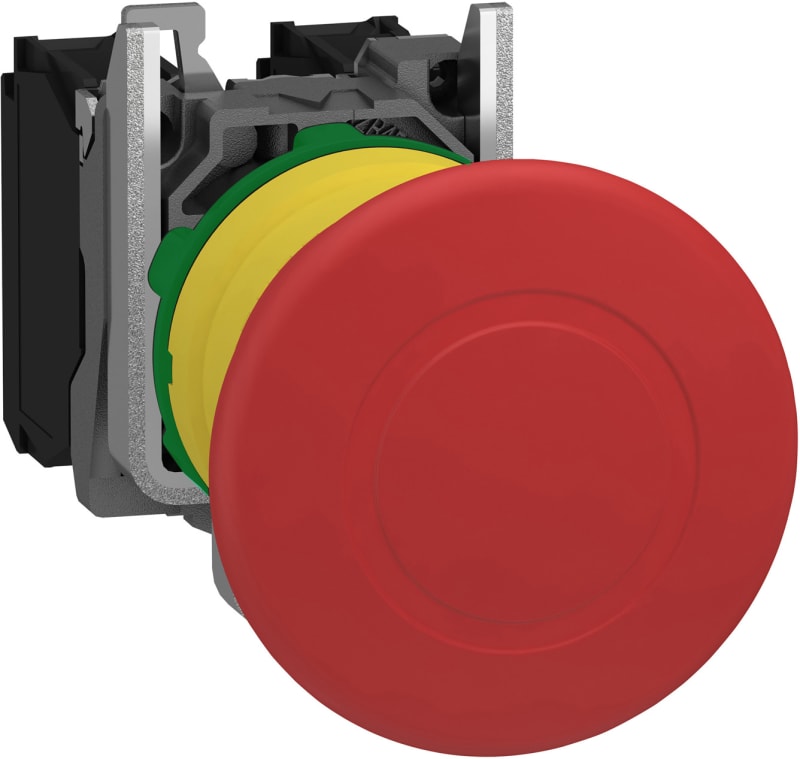

Emergency stop pressure/pull no+nc

Schneider Electric XB5AT845 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Emergency stop complete with Ø40 mm mushroom head in red colour with pressure/pull function 1xNO+1xNC.

Manufacturer part number (MPN)

XB5AT845 EAN / GTIN: 3389110903751 Sales unit: pcs Package quantity: 42 pcs Contact configuration: NO + NC Range of product: Harmony XB5 Product or component type: Emergency stop push-button; Emergency switching off push-button Device short name: XB5 Bezel material: Dark grey plastic Fixing collar material: Plastic Head type: Standard Mounting diameter: 22 mm Sale per indivisible quantity: 1 Shape of signaling unit head: Round Type of operator: trigger action and mechanical latching Reset: Push-pull Operator profile: Red mushroom Ø 40 mm, unmarked Contacts type and composition: 1 NC + 1 NO Contact operation: Slow-break Connections - terminals: Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1 Device presentation: Complete product Height: 43 mm Width: 40 mm Depth: 82 mm Terminals description ISO n°1: (13-14)NO; (11-12)NC Product weight: 0.065 kg; 0.076 kg Resistance to high pressure washer: 7000000 Pa at 55 °C, distance : 0.1 m Contacts usage: Standard contacts Positive opening: With conforming to IEC 60947-5-1 appendix K Operating travel: 1.5 mm (NC changing electrical state); 2.6 mm (NO changing electrical state); 4.3 mm (total travel) Operating force: 50 N Mechanical durability: 300000 cycles Tightening torque: 0.8…1.2 N.m conforming to IEC 60947-1 Shape of screw head: Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver Contacts material: Silver alloy (Ag/Ni) Short-circuit protection: 10 A cartridge fuse type gG conforming to IEC 60947-5-1 [Ith] conventional free air thermal current: 10 A conforming to IEC 60947-5-1 [Ui] rated insulation voltage: 600 V (pollution degree 3) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-1 [Ie] rated operational current: 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 Electrical durability: 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C Electrical reliability: Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4 Protective treatment: TH Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -40…70 °C Overvoltage category: Class II conforming to IEC 60536 IP degree of protection: IP66 conforming to IEC 60529; IP67; IP69; IP69K Enclosure Type: UL type 4X/13 IK degree of protection: IK03 conforming to IEC 50102 Standards: IEC 60947-5-4; JIS C8201-5-1; IEC 60947-5-1; CSA C22.2 No 14; IEC 60364-5-53; IEC 60204-1; IEC 60947-1; ISO 13850; IEC 60947-5-5; UL 508; JIS C8201-1 Product certifications: CSA; LROS (Lloyds register of shipping); BV; UL listed; DNV Vibration resistance: 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 Number of Units in Package 1: 1 Number of Units in Package 2: 42 Country of origin: CZ Warranty (in months): 18 Unlocking method: Pull-release Number of contacts as normally closed contact: 1 Number of contacts as normally open contact: 1 Degree of protection (IP): IP66 Mounting method: Built-in With lighting: No Hole diameter: 22.5 mm Connection type auxiliary circuit: Screw connection Diameter cap: 40 mm

HS Code

8536.50

• EAN 3389110903751
• SAP 1000259850
• Code 8173274
