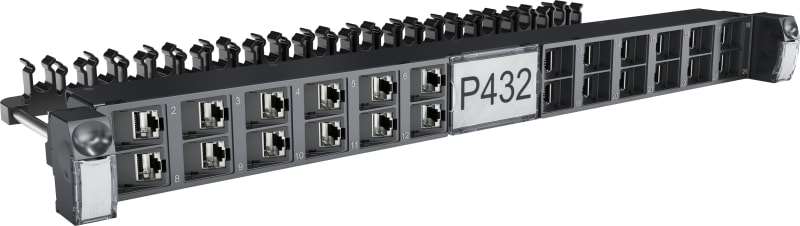

Schneider Electric Actassi 19-C Patch Panel Flat Angled 19" 1U 24PT S-OneDPM FTP/STP Empty VDIG321241B
Pricing
Request a quote
We reply within 24 hours
Product Description
Actassi 19" patchpanel 24P 1U, S-One mounted obliquett in panelet, dark grey.
Technical Specifications
- Manufacturer part number (MPN)
- VDIG321241B
- EAN / GTIN
- 3606480542541
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Rack units
- 1 U
- range of product
- Actassi
- Product or component type
- Empty angled 19" data panel
- Device presentation
- Empty
- Provided equipment
- 2 quick fix 19" mountings; Rear cable manager; Front label holder
- Colour
- Dark grey (RAL 7016)
- Additional information
- Automatic grounding
- Number of port
- 24 port of FTP/STP
- Communication network category
- 5e; 6; 6A
- Number of rack unit
- 1U
- Type of connector
- S-One DPM
- Material
- DC01 metal sheet 1.2 mm; PA6 plastic part; PA66 GF20 plastic part
- Width
- 490 mm
- Depth
- 230 mm
- Height
- 47 mm
- Product weight
- 2.2 kg
- Ambient air temperature for operation
- -10…55 °C
- Standards
- IEC 60297; NF C 20-150
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 7
- Warranty (in months)
- 18
- RAL-number
- 7016
- Connection type
- Insulation displacement connector
- Screened
- Yes
- Suitable for number of connectors
- 24
- Number of height units
- 1
- Number of buses/couplings
- 24
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480542541
- SAP 1000341017
- Code 8968511
Product Documentation
More from Schneider Electric
Schneider Electric

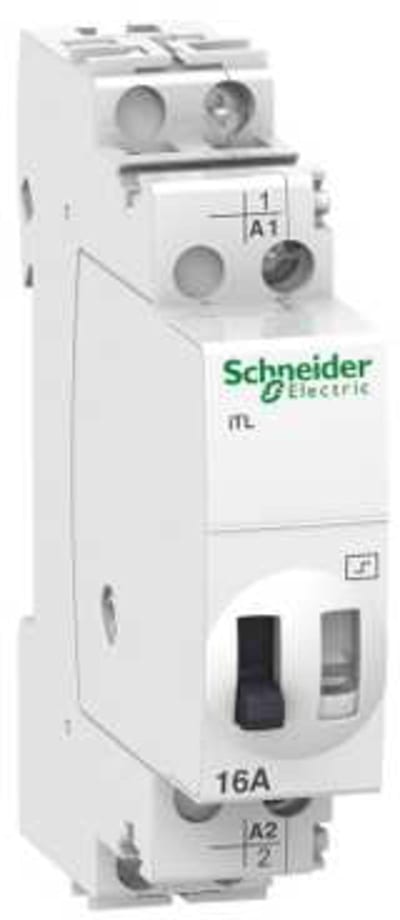

Schneider Electric impulse relay iTL - 1P - 1NO - 16A - coil 12 VDC - 24 VAC 50/60Hz A9C30111
Schneider Electric

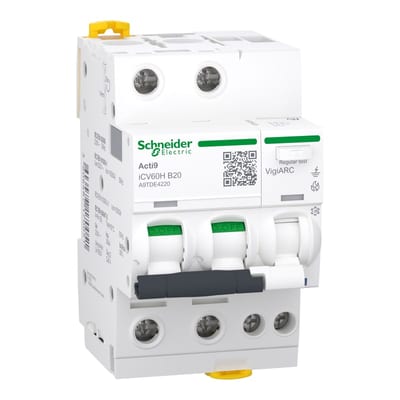

ACTI9 ICV60H ARC 2P B 20A 30MA RCBO AFDD
A9TDE4220
Schneider Electric

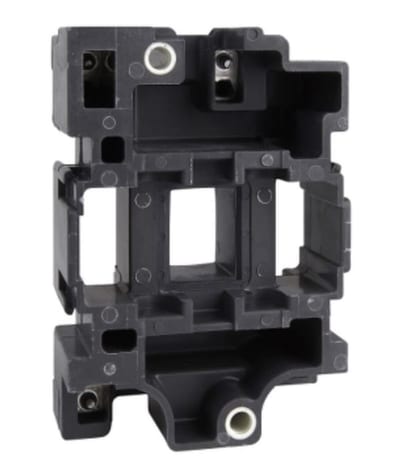

Coil 230V 50/60Hz LC1D40-D95
LX1D6P7
Schneider Electric

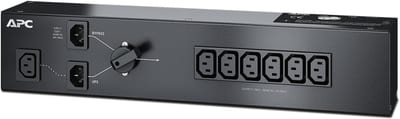

Schneider Electric APC Service Bypass PDU, 230V 10AMP W/ (6) IEC C13 SBP1500RMI
Schneider Electric

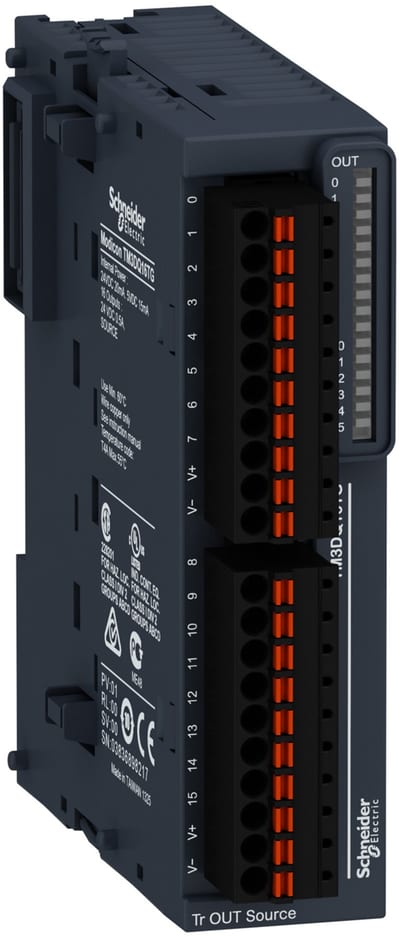

Schneider Electric Modicon TM3 - 16 outputs transistor PNP (spring) TM3DQ16TG
Schneider Electric

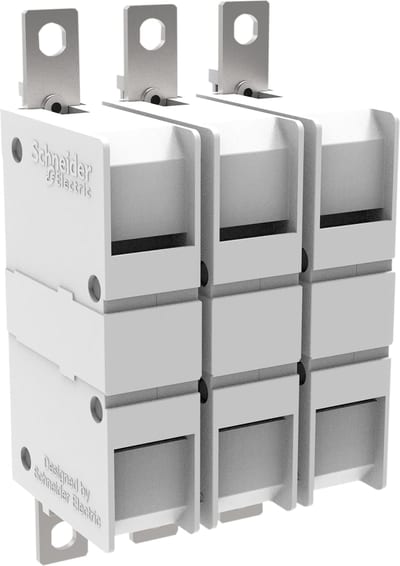

Contact set 3P LC1G630-800
LA9G3TA
Schneider Electric

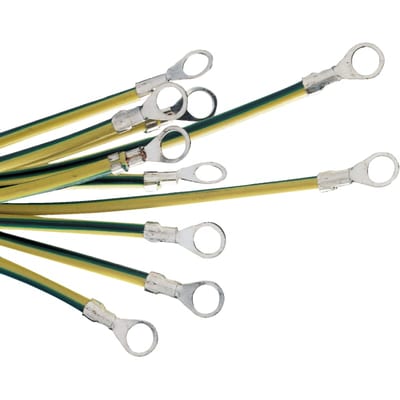

Schneider Electric Earth leads section 6mm², length 220mm, eyelet hole 6,4MM. Packaging unit: 10. NSYEL226D6
Schneider Electric

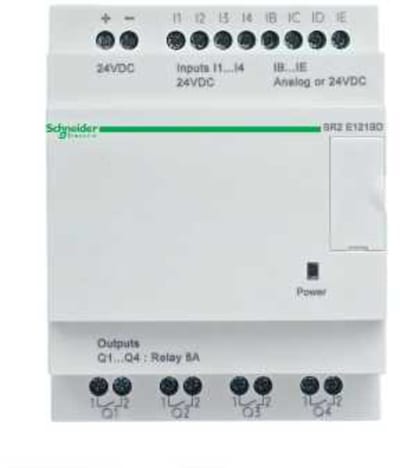

Schneider Electric compact smart relay Zelio Logic - 12 I O - 24 V DC - clock - no display SR2E121BD
