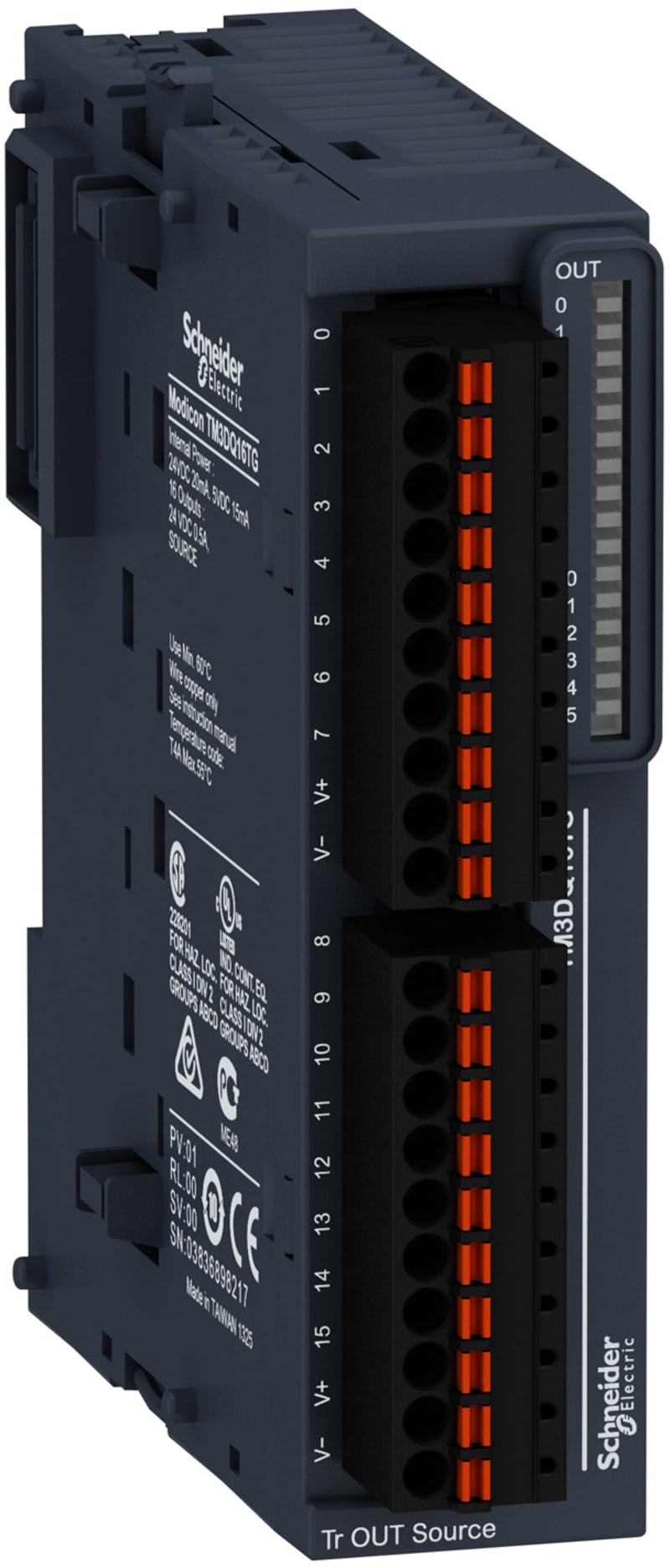

Schneider Electric Modicon TM3 - 16 outputs transistor PNP (spring) TM3DQ16TG

Schneider Electric TM3DQ16TG Accessories Modicon PLS - IO extension - 16 transistorutganger, spring terminal.

Manufacturer part number (MPN)

TM3DQ16TG

EAN / GTIN

3606480611490

Sales unit

pcs

Package quantity

42 pcs

Output type

PNP

Range of product

Modicon TM3

Product or component type

Discrete output module

Range compatibility

Modicon M241; Modicon M251; Modicon M221; Modicon M262

Device application

Industrial application

Discrete output number

16

Discrete output logic

Positive logic (source)

Discrete output voltage

24 V DC for transistor

Discrete output current

500 mA transistor output

Response time on output

450 µs maximum (turn on); 450 µs maximum (turn off)

Maximum leakage current

0.1 mA

Maximum voltage drop

<0.4 V

Maximum tungsten load

<3 W for transistor

Safety reliability data

MTBF = 57 years 40 °C

Power supply type

Electronic powered by internal bus

Typical current consumption

5 mA at 5 V DC; 0 mA at 24 V DC; 20 mA at 5 V DC; 10 mA at 24 V DC

Electrical connection

10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for outputs

Maximum cable distance between devices

Unshielded cable: <30 m for transistor output

Isolation between channels and bus

500 V AC

Local signalling

1 LED per channel (green) for output status

Housing colour

Grey

AWG gauge

0.14…1.5 mm² / 26 AWG...16 AWG with solid cable

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

90 mm

Width

27.4 mm

Depth

84.6 mm

Product weight

0.11 kg

IP degree of protection

IP20

Protective treatment

None

Marking

CE

Product certifications

CE; CULus; UKCA; RCM; EAC; CULus HazLoc

Standards

IEC 61131-2

Ambient air temperature for operation

-10…35 °C (vertical installation); -10…55 °C (horizontal installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 % without condensation for operation; 10…95 % without condensation for storage

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

3.5 mm (f = 5…8.4 Hz) on DIN rail; 3 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on panel mounting; 3 gn (f = 8.4…150 Hz) on panel mounting

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

42

Number of Units in Package 3

504

Country of origin

TW

Warranty (in months)

18

Power consumption

1.1 W

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of digital outputs

16

Digital inputs configurable

No

Digital outputs configurable

No

Type of voltage (input voltage)

AC/DC

Type of digital output

Transistor

Output current

0.5 A

Permitted voltage at output

19.2–28.8 V

Type of output voltage

AC/DC

Short-circuit protection, outputs available

Yes

Redundancy

No

Type of electric connection

Spring clamp connection

Time delay at signal change

0.45 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90

• EAN 3606480611490
• SAP 1000506838
• Code 8351431
