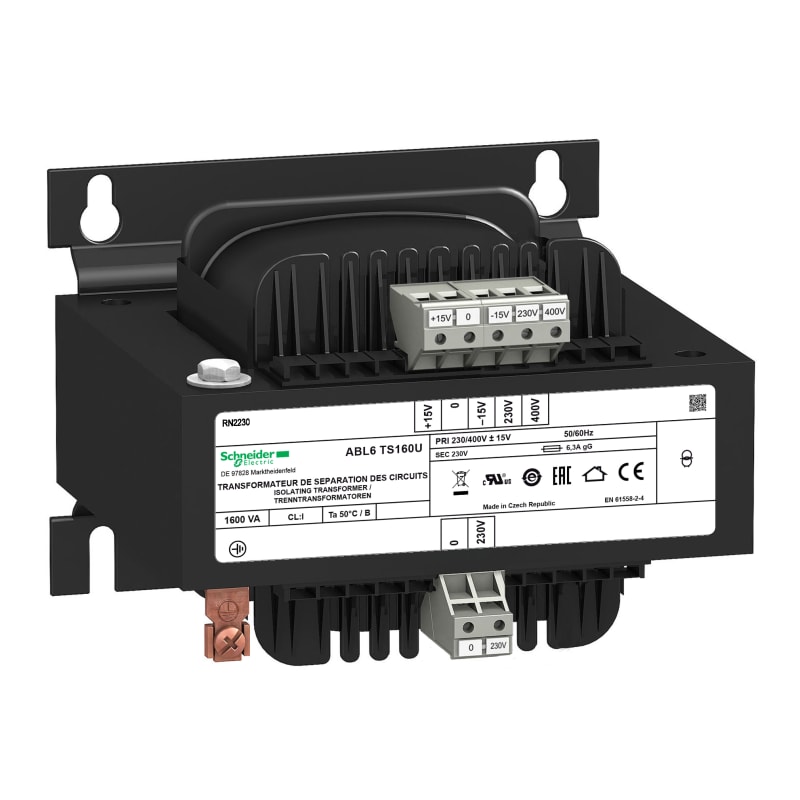

Schneider Electric voltage transformer - 230..400 V - 1 x 230 V - 1600 VA ABL6TS160U

Schneider Electric ABL6TS160U Safety- and isolating transformer 1600VA - supply 230-400V - output 230V.

Manufacturer part number (MPN)

ABL6TS160U

EAN / GTIN

3389110880342

Sales unit

pcs

Package quantity

4 pcs

Voltage

230-400 V

Range of product

Modicon Transformer Optimized

rated power in VA

1600 VA

Product or component type

Safety and isolation transformer

Input voltage

230 V AC single phase, terminal(s): N-L1; 400 V AC phase to phase, terminal(s): L1-L2

Output voltage

230 V AC

Secondary winding

Single

Protective cover

Without

Ambient air temperature for operation

-20…50 °C

Input voltage limits

360...440 V; 207...253 V

Network frequency limits

47…63 Hz

Input voltage tolerance

+/- 15 V

Efficiency

96 %

Power dissipation in W

66.7 W

Output sustained overvoltage

3 % (no load, hot state)

No load losses

23.7 W

Short-circuit voltage

0,0265

Output protection type

Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection; Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection; Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection

Connections - terminals

For input connection: screw type terminals, connection capacity: 5 x 4 mm² 11 AWG; For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² 11 AWG; For output connection: screw type terminals, connection capacity: 2 x 4 mm² 11 AWG

Marking

CE

Fixing mode

By 4 screws diameter: 7 mm on vertical panel, operating position: horizontal; By 4 screws diameter: 7 mm on vertical panel, operating position: vertical; By 4 screws diameter: 7 mm on horizontal panel with derating to 90 %

Operating altitude

3000 m

Electrical insulation class

Class B

Width

174.0 mm

Height

169.0 mm

Depth

163.0 mm

Product weight

19.96 kg

Product certifications

UR; EAC; DNV-GL

Standards

UL 506

IP degree of protection

IP20

Environmental characteristic

EMC conforming to IEC 62041; Safety conforming to EN 61558-1; Safety conforming to EN 61558-2-4

Protective treatment

TC

Ambient air temperature for storage

-40…80 °C

Overvoltage category

Class I conforming to VDE 0106-1

Dielectric strength

2000 V between winding and ground; 4000 V between primary and secondary

Number of Units in Package 1

1

Number of Units in Package 2

4

Country of origin

CZ

Warranty (in months)

18

Built as safety transformer

Yes

Built as isolating transformer

Yes

Built as energy saving transformer

No

Primary voltage 1

230–400 V

Primary voltage 2

385–415 V

Secondary voltage 1

230 V

Rated apparent power

1600 VA

Type of insulation material according to IEC 85

F

Short-circuit-proof

No

Relative short circuit voltage

2.65 %

Degree of protection (IP)

IP20

Ring core

No

Suitable for mounting on PCB

No

Suitable for distribution board

No

HS Code

8504.32

• EAN 3389110880342
• SAP 1000535922
• Code 8651227
