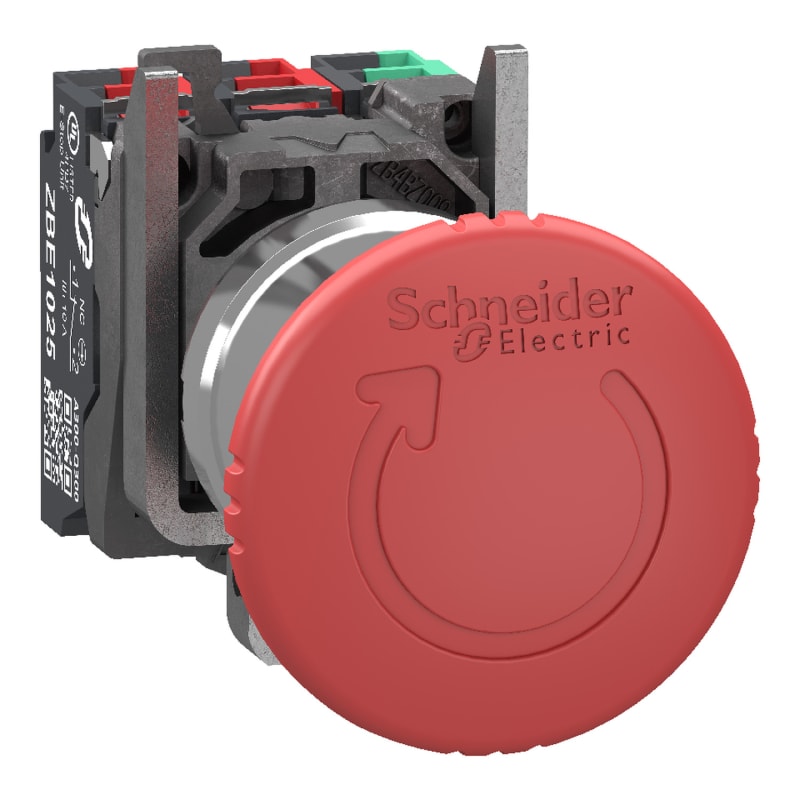

Schneider Electric Emergency stop switching off, Harmony XB4, metal, red mushroom 40mm, 22mm, trigger turn to release, 1 NO + 2 NC, push in XB4BS844415

Schneider Electric XB4BS844415 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Emergency stop complete with Ø40 mm mushroom head in red colour with push/turn function 1xNO+2xNC with push-in.

Manufacturer part number (MPN)

XB4BS844415

EAN / GTIN

3606486341605

Sales unit

pcs

Diameter

40 mm

Range of product

Harmony XB4

Product or component type

Emergency switching off push-button; Emergency stop push-button

Device short name

XB4

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

trigger action and mechanical latching

Head type

Standard

Reset

Turn to release

Operator profile

Red mushroom Ø 40 mm, unmarked

Contact operation

Slow-break

Connections - terminals

Push-in, = 1 x 0.34 mm² without wire end ferrule conforming to IEC 60947-1

Height

47 mm

Width

40 mm

Depth

73.2 mm

Terminals description ISO n°1

(13-14)NO; (21-22)NC

Product weight

0.127 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Device mounting

Fixing hole - diameter: 22.5 mm +/- 0.2 mm

Fixing mode

By fixing collar recommended torque: 1 N.m (+/- 0.2 N.m)

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1.217 mm (NC changing electrical state); 2.05 mm (NO changing electrical state); 4.3 mm (total travel)

Operating force

4.5 N; 2.45 N

Mechanical durability

300000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

300 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

6 A at 120 V, AC-15, A300 conforming to IEC 60947-5-1; 3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q300 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1

Device presentation

Complete product

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-5-5; UL 60947-1; UL 60947-5-1; UL 60947-5-5; UL 1059; UL 486E; CSA C22.2 No 60947-1; CSA C22.2 No 60947-5-1; CSA C22.2 No 158; CSA C22.2 No 65; IACS E10; IEC 60204-1; ISO 13850; IEC 60364-5-53

Product certifications

EAC; IECEE CB Scheme; CCC; UL; CSA

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Warranty (in months)

18

Unlocking method

Turn-release

Number of contacts as normally closed contact

2

Number of contacts as normally open contact

1

Degree of protection (IP)

IP66

Mounting method

Surface mounting

With lighting

No

Hole diameter

22.5 mm

Diameter cap

40 mm

Country of origin

France

HS Code

8536.50
