Contact set 3P LC1G630-800
Pricing
Request a quote
We reply within 24 hours
Product Description

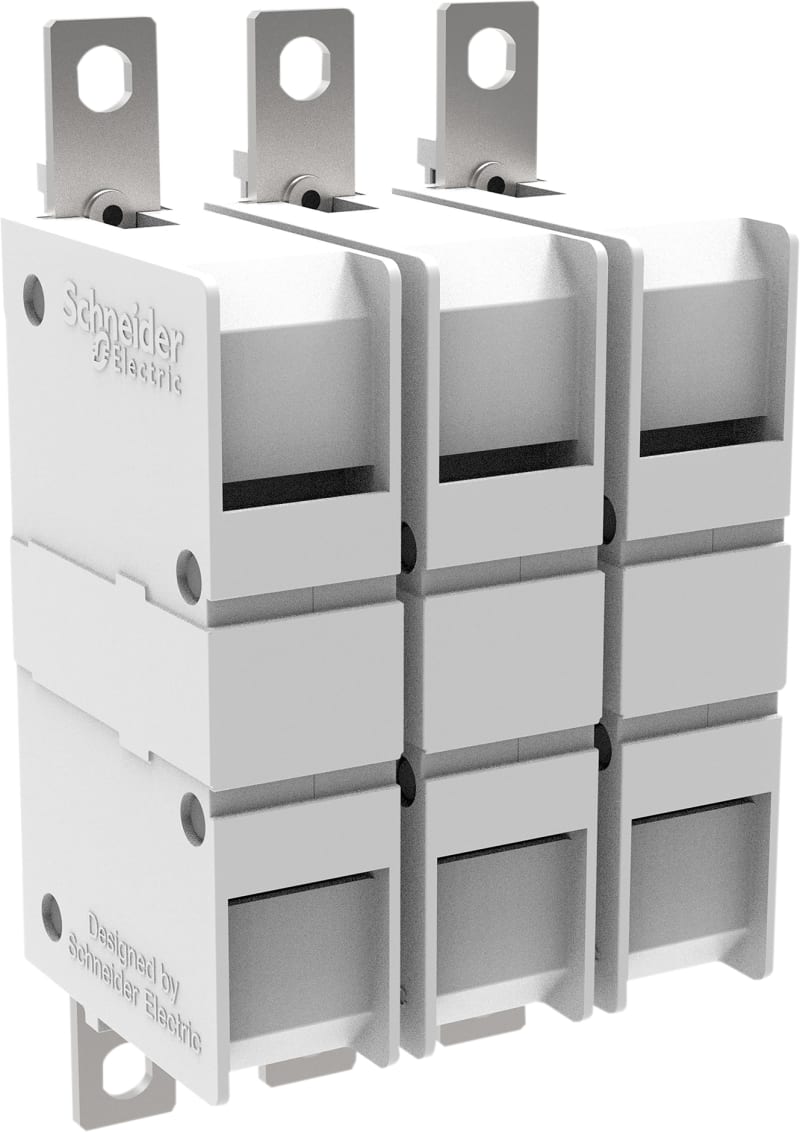

Schneider Electric LA9G3TA Contact Set 3-pole kit for TeSys G630-800.
Technical Specifications
- Manufacturer part number (MPN)
- LA9G3TA
- EAN / GTIN
- 3606481916761
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Number of poles
- 3P
- Range
- TeSys
- Device short name
- LA9G
- Product or component type
- Switch module
- Quantity per set
- Set of 3
- Product compatibility
- LC1G630...800
- Accessory / separate part type
- Kit
- Maximum [Ie] rated operational current
- 1050 A AC-1 <= 440 V at 40 °C; 800 A AC-3 <= 440 V at 40 °C
- Poles description
- 3P
- Connections - terminals
- Bolted connection
- Height
- 127.5 mm
- Width
- 284 mm
- Depth
- 202 mm
- Product weight
- 8.5 kg
- Pollution degree
- 3 conforming to IEC 60947-1
- Operating altitude
- 3000 m without power derating; 5000 m with derating factor
- Standards
- EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; GB/T 14048.4
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -60…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Connection technique
- Accessory
- Yes
- Spare part
- Yes
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606481916761
- SAP 1200587810
- Code 82997001
