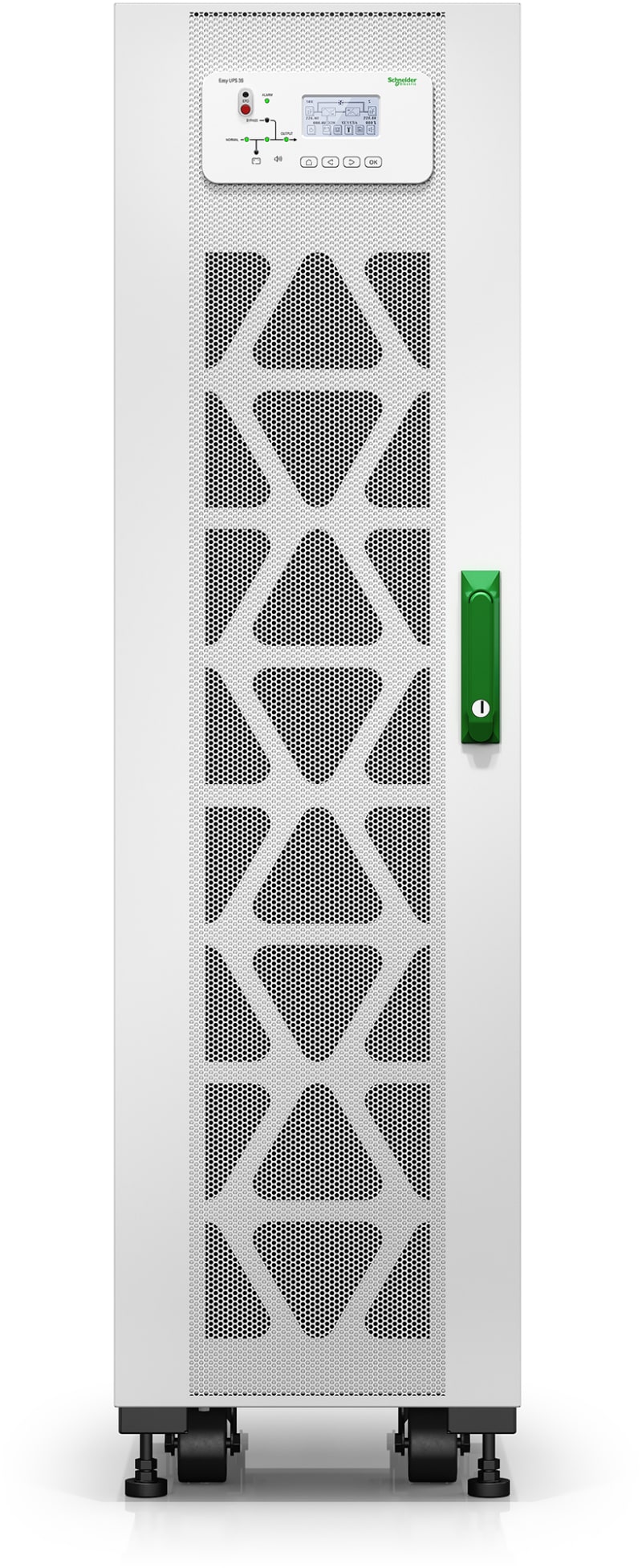

3-Phase Easy UPS 20KVA 400V 3:1 Tower

Schneider Electric E3SUPS20K3IB Easy UPS 3S 20kVA 400 V 3:1 for internal batteries, Modbus, potential-free relay.

Manufacturer part number (MPN)

E3SUPS20K3IB

EAN / GTIN

0731304340775

Sales unit

pcs

Voltage

400 V

Presentation

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.

Main input voltage

400 V AC 3 phases; 380 V AC 3 phases; 415 V AC 3 phases

Other input voltage

380 V; 415 V

Maximum input current

37 A

Input harmonic distortion

Less than 5 % for full load

Input protection

Circuit breaker and fuse

Cos phi

0.99

Efficiency at full load

304...477 V

Input frequency

45...65 Hz

Output voltage

230 V AC 3 phases; 220 V AC 3 phases; 240 V AC 3 phases

Other output voltage

220 V; 240 V

Rated power in W

20 kW

Rated power in VA

20 kVA

Crest factor

3 : 1

Harmonic distortion

Less than 3 %

Maximum configurable power in VA

20 kVA

Maximum configurable power in W

20 kW

Output harmonic distortion

< 5.5% at 100% non-linear load

Output overload operation

10 minutes at 125% and 60 seconds at 150%

Output voltage tolerance

+/- 1.5 %

UPS topology

Double conversion online

Output frequency

50 Hz sync to mains; 60 Hz sync to mains

Efficiency

View Efficiency Graph

Maximum short-circuit current

10 kA

Max current discharge

54 A

Battery type

Lead-acid internal

UPS connectivity

Optional network management card 3

Color

White (RAL 9003)

Height

140 cm

Width

38 cm

Depth

90.7 cm

Product weight

150 kg

USB compatible

Yes

Provided equipment

Dust filter; Installation guide

Range of product

Easy UPS 3S

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; EAC; RCM

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-25…55 °C

Storage altitude

0…15240 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

60 dBA

Heat dissipation

870 W

Operating altitude

0...3281 ft

Battery voltage

240 V

Included battery module

0

Empty battery slot

3

Discharge battery voltage

+/- 198 V DC

Number of Units in Package 1

1

Country of origin

CN

Warranty (in months)

12

HS Code

8504.40
