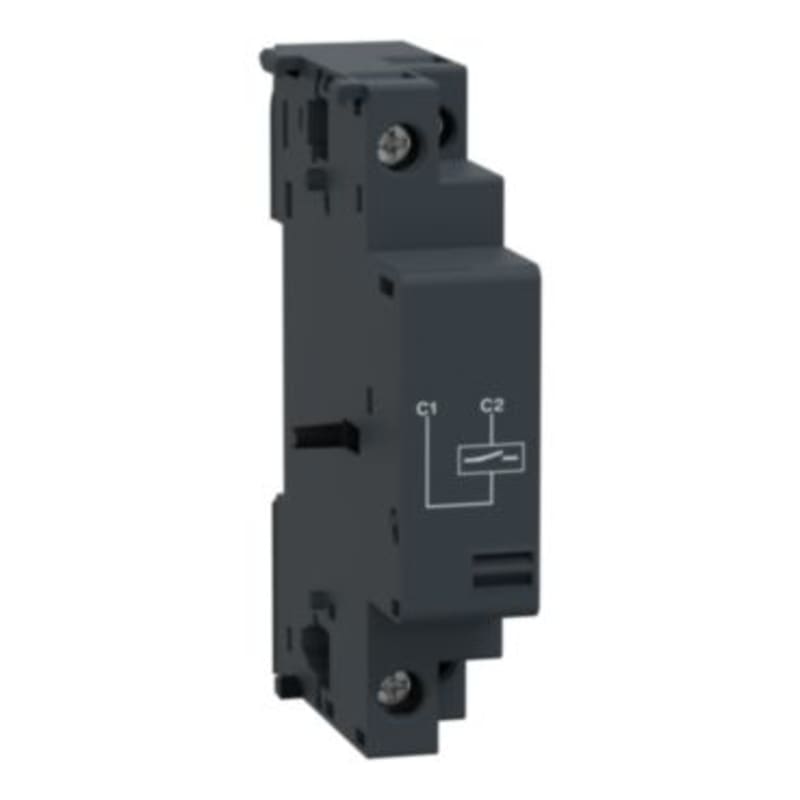

Schneider Electric TeSys GV2 & GV3 - shunt trip - 220...240 V AC 60 Hz GVAS226
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric GVAS226 Shunt trip 220 60HZ GV2.
Technical Specifications
- Manufacturer part number (MPN)
- GVAS226
- EAN / GTIN
- 3389110343748
- Sales unit
- pcs
- Frequency
- 60 Hz
- Range
- TeSys; TeSys Deca
- Product or component type
- Shunt trip release
- Device short name
- GVAS
- [Uc] control circuit voltage
- 220...240 V AC 60 Hz
- Range compatibility
- TeSys GV2ME; TeSys GV2LE; TeSys GV2L; TeSys GV2P; TeSys GV3L; TeSys GV3P; TeSys Deca
- Control circuit voltage limits
- 0.7...1.1 Un
- [Ui] rated insulation voltage
- 690 V AC conforming to IEC 60947-1; 600 V AC conforming to UL 60947-4-1; 600 V AC conforming to CSA C22.2 No 60947-4-1
- Threshold tripping voltage
- 0.75...0.2 Un
- Inrush power in VA
- 14 VA AC
- Inrush power in W
- 10.5 W
- Hold-in power consumption in VA
- 5 VA AC
- Hold-in power consumption in W
- 1.6 W
- Operating time
- 10...15 ms conforming to IEC 60947-1
- On-load factor
- 100 %
- Connections - terminals
- Screw clamp terminals 1 cable(s) 1…2.5 mm²solid; Screw clamp terminals 2 cable(s) 1…2.5 mm²solid; Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end
- Tightening torque
- < 1.4 N.m on screw clamp terminals
- Mechanical durability
- 10000 cycles with GV3P and GV3L; 30000 cycles with GV2ME and GV2P
- Quantity per set
- Set of 10
- Height
- 89 mm
- Width
- 18 mm
- Depth
- 66 mm
- Product weight
- 0.105 kg
- Colour
- Dark grey
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 42
- Country of origin
- CZ
- Warranty (in months)
- 18
- Suitable for off-load switch
- No
- Suitable for overload relay
- No
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 60 Hz
- 220–240 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3389110343748
- SAP 1000004997
- Code 831874
Product Documentation
More from Schneider Electric
Schneider Electric
3-Phase Easy UPS 10KVA 400V 3:3 Tower
E3SUPS10KHB
Schneider Electric
Schneider Electric compact smart relay Zelio Logic - 20 I O - 100..240 V AC - no clock - no display SR2D201FU
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 4P, 13A, C curve, 6000A/6KA, A-SI type, 30MA A9D77413
Schneider Electric
PratiKa Wall-Mounted Socket Outlet, Large, 16 A 3P+E 400 V (83108)
Schneider Electric
Schneider Electric Patch cord, Actassi, Category 6A, S/FTP, LSZH, 1 m, blue ACTPC6ASFLS10BU
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 3P+N, 25A, C curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P54725
Schneider Electric

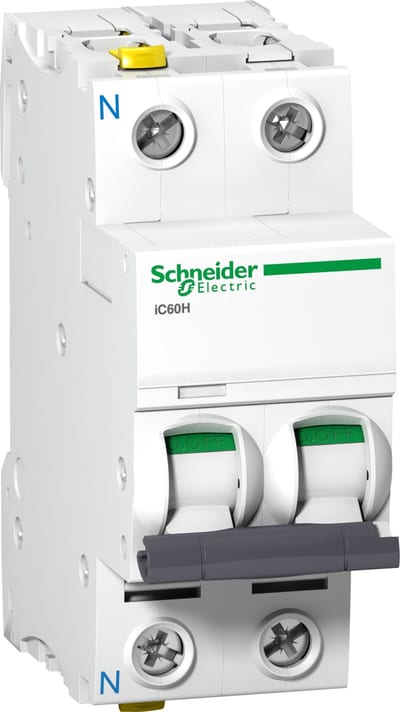

Schneider Electric A9F06616 ACTI9 IC60H Miniature Circuit Breaker 1P+N 16 A, Curve B
Schneider Electric

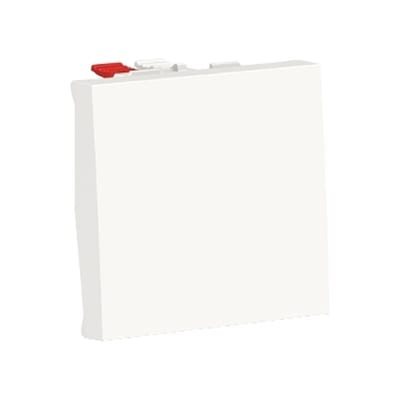

Schneider Electric Switch, New Unica, 1-Pole 2-Way, 10AX, 2 modules, white NU320318
