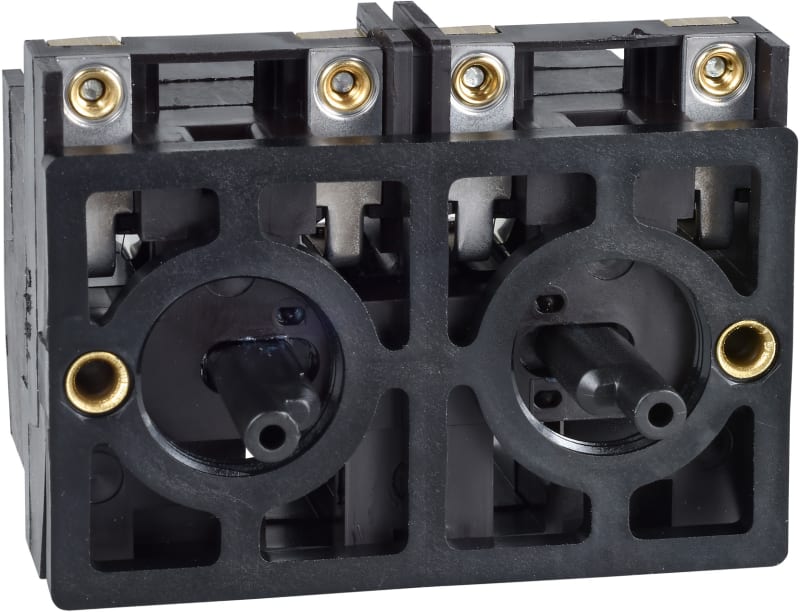

Contact element (XESD1181)

Schneider Electric XESD1181 Contact Element.

Manufacturer part number (MPN)

XESD1181

EAN / GTIN

3389110641066

Sales unit

pcs

Package quantity

42 pcs

Range of product

Harmony XAC

Product or component type

Contact block

Component name

XESD

Electrical circuit type

Control circuit

Contact block application

Single speed

Contact block type

Double

Type of operator

2 spring return

Product compatibility

XACB; XACM

Mechanical interlocking

With mechanical interlocking

Mounting of block

Front mounting

Contact operation

Snap action

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Mechanical durability

1000000 cycles

Contact code designation

A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Maximum resistance across terminals

25 MOhm

Operating force

15 N; 25 N

Short-circuit protection

10 A fuse protection by cartridge fuse type gG

Rated operational power in W

140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 95 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C

Rated operational power in VA

100 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load); 450 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load); 50 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load); 750 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load)

Terminals description ISO n°1

B; (13-14-11-12)OF

Terminals description ISO n°2

B; (23-24-21-22)OF

Terminal identifier

(13-14)NO; (11-12)NC

Standards

CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class II conforming to IEC 61140

Number of Units in Package 1

1

Number of Units in Package 2

10

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.50
