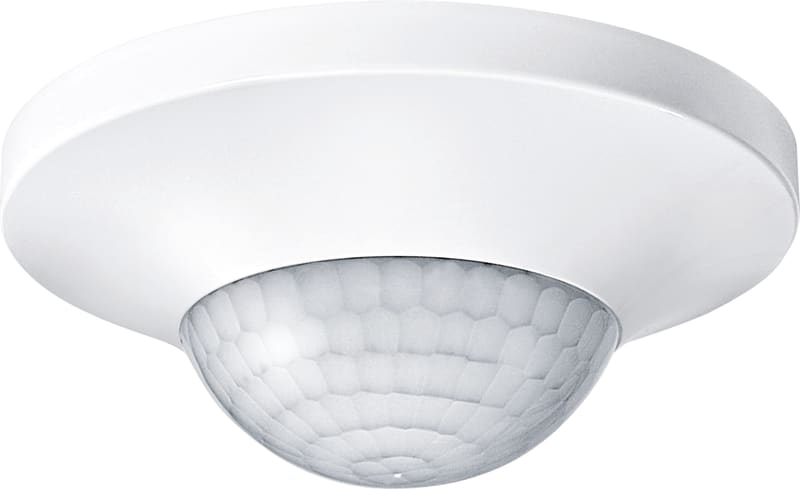

Schneider Electric SpaceLogic KNX ARGUS Presence Detector Basic, 360 Degrees, Polar White
Pricing
Request a quote
We reply within 24 hours
Product Description
Flush-mounted KNX presence detector from Schneider Electric's SpaceLogic ARGUS Basic range, providing 360-degree horizontal coverage with a 7 m lateral range at a 2.5 m mounting height (14 m detection diameter on floor). Two channels, adjustable light-sensitivity, and up to 15300 minutes duty cycle allow lighting and HVAC to be switched on presence and ambient light. Polar white plastic housing, thermoplastic construction, matt glossy finish RAL 9010. Country of origin Latvia. Typical applications include offices, corridors, classrooms, and meeting rooms integrated over KNX.
Technical Specifications
- Manufacturer part number (MPN)
- MTN630719
- EAN / GTIN
- 3606485099767
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- SpaceLogic KNX
- Product or component type
- Presence detector
- Bus type
- KNX
- Colour tint
- Polar white
- Device presentation
- Complete product
- Number of channels
- 2
- Protection type
- Creep zone protection
- Type of setting
- Light sensitivity adjustable
- Duty cycle
- 15300 minutes
- Time delay range
- 0...1 s (switch-on)
- Detection face
- Lateral: 7 m
- Detection angle
- 360° horizontal
- Device mounting
- Flush
- Mounting height
- 2.5 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.100 cm
- Package 1 Width
- 14.400 cm
- Package 1 Length
- 18.200 cm
- Package 1 Weight
- 186.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 6
- Package 2 Height
- 20.800 cm
- Package 2 Width
- 31.800 cm
- Package 2 Length
- 40.500 cm
- Package 2 Weight
- 1.496 kg
- Country of origin
- LV
- Warranty (in months)
- 18
- Other bus systems
- None
- Model
- Presence detector
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9010
- Optimum mounting height
- 2.5 m
- Max. reach sideways
- 7 m
- Max. reach frontally
- 7 m
- Diameter reach on floor
- 14 m
- Min. switch-on time
- 1 s
- Max. duty cycle
- 15300 min
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606485099767
- SAP 1000503256
- Code 8739055
Product Documentation
More from Schneider Electric
Schneider Electric
Light Unit with 2J flash LED in red
XVB7C64
Schneider Electric
CE/CD/CT low-level MTZ withdrawable, spare
LV833171SP
Schneider Electric

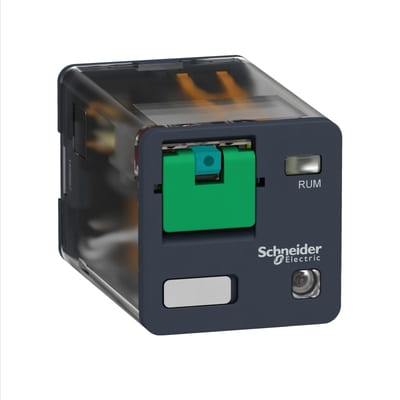

Schneider Electric universal plug-in relay - Harmony RUM - 3 C/O - 24 V DC - 10 A - with LED RUMF32BD
Schneider Electric

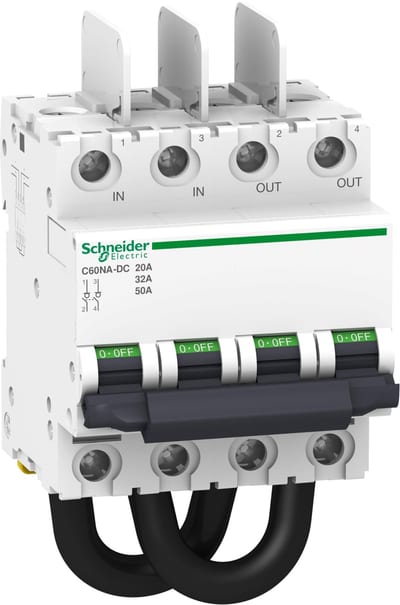

ACTI9 C60 NA-DC 2P 20A 1000VDC
A9N61690
Schneider Electric
Shutter Locking Block, Masterpact MTZ2/MTZ3 Spare
LV848591SP
Schneider Electric
Toroid splittbar 120mm Vigirex
50421
Schneider Electric
Schneider Electric Modular 1-Phase voltage control relay, 8 A, 2 CO, 15…500 V AC/DC, 24…240 V AC/DC RM22UA33MR
Schneider Electric
ACTI9 ICV60H ARC 2P B 16A 30MA RCBO AFDD
A9TDE4216
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy MTN630719?
- MTN630719 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is MTN630719.
- What is the HS code for MTN630719?
- The customs tariff (HS) code for MTN630719 is 8536.50.
- Who manufactures MTN630719?
- MTN630719 is a Schneider Electric product in the Lighting & Electrical Accessories range.
- Is a datasheet available for MTN630719?
- Yes — the MTN630719 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for MTN630719?
- The minimum order quantity is 1.
- Is MTN630719 available?
- Yes — MTN630719 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
