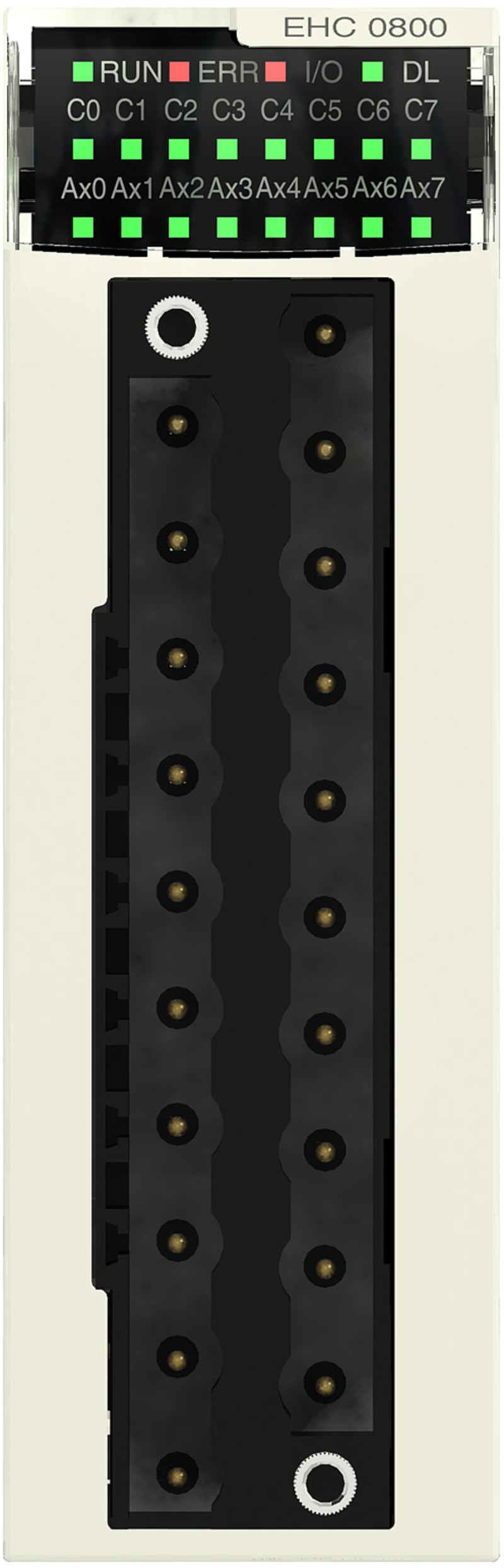

Schneider Electric high speed counter module M340 - 8 channels BMXEHC0800
Part numberBMXEHC0800EAN / GTIN3595863910131HS code8538.90
Control & Automation
PLCs & Logic Relays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BMXEHC0800 M340 hurtigteller, 8 channels, up to 10kHz, FTB.
Technical Specifications
- Manufacturer part number (MPN)
- BMXEHC0800
- EAN / GTIN
- 3595863910131
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Range of product
- Modicon M340 automation platform
- Product or component type
- Counter module
- Number of channels
- 8
- Maximum counting frequency
- 10000 Hz
- Number of inputs
- 2 (single mode); 3 (special dual phase mode)
- Input compatibility
- 19.2…30 V 2-wire/3-wire proximity sensor; incremental encoder with push-pull outputs, 10...30 V totem pole
- input voltage
- 24 V DC type 3
- Counter functions
- Up/down counter; 32-bit counter counting; Frequency meter; Loop (modulo) counting; Count events; Down counting
- Cycle time
- 5 ms
- Isolation voltage
- 1500 V for 60 s
- Input type
- High speed
- Input voltage limits
- 24 V DC
- Input current
- 4.5 mA
- Voltage state 1 guaranteed
- 11...30 V DC
- Current state 1 guaranteed
- > 2 mA (for U >= 11V)
- Voltage state 0 guaranteed
- < 5 V DC
- Current state 0 guaranteed
- < 1.5 mA
- Electrical connection
- 1 connector with 20 pins
- Current consumption
- 200 mA at 3.3 V DC bus; 80 mA at 24 V DC sensor
- Module format
- Standard
- Product weight
- 0.113 kg
- Ambient air temperature for operation
- 0…60 °C
- Relative humidity
- 10…95 % without condensation
- IP degree of protection
- IP20
- Directives
- 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
- Protective treatment
- Standard version
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of functions
- 4
- Redundancy
- No
- Suitable for counting
- Yes
- Suitable for weighing
- No
- Suitable for temperature control
- No
- Suitable for welding control
- No
- Suitable for pressure control
- No
- Suitable for NC
- No
- Suitable for electronic positioning
- No
- Suitable for CNC
- No
- Suitable for SSI
- No
- Suitable for incremental data detection
- Yes
- Suitable for detection absolute value
- No
- Suitable for flux controller
- Yes
- Suitable for flux measurement
- Yes
- Suitable for path controller
- No
- Suitable for cam controller
- No
- Suitable for multi-axis control
- No
- Suitable for single-axis controller
- No
- Suitable for multi-axis positioning
- No
- Suitable for single-axis positioning
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 32 mm
- Height
- 103.76 mm
- Depth
- 92 mm
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3595863910131
- SAP 1000024436
- Code 8498661
