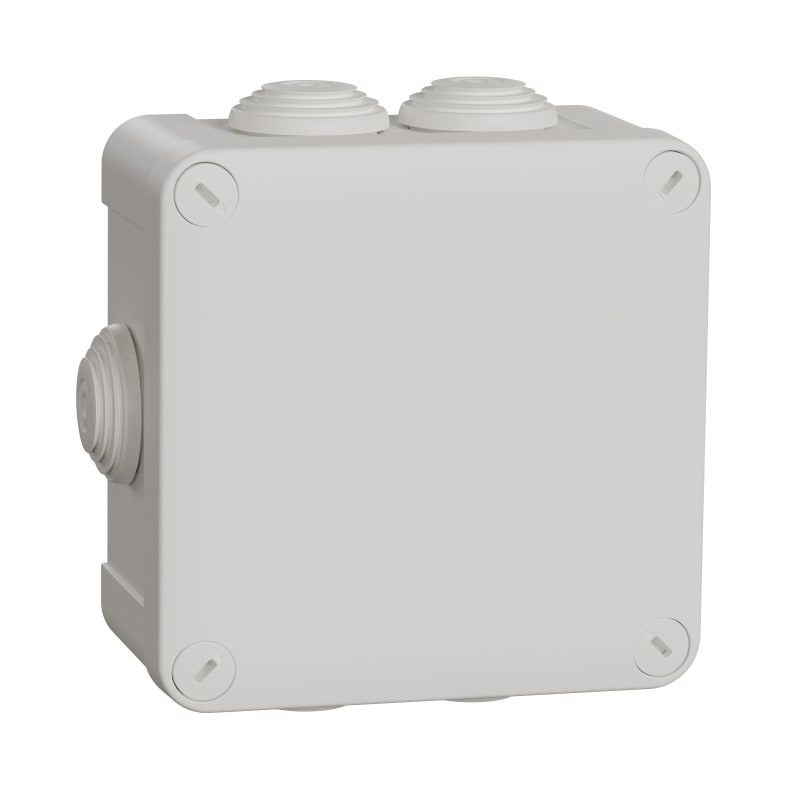

Connection Box 105X105X55 White
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric IMT05025 Mureva Box - boite de dérivation avec embouts - 105x105x55 - IP55 - blanc polair.
Technical Specifications
- Manufacturer part number (MPN)
- IMT05025
- EAN / GTIN
- 3606480986376
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Dimensions
- 105×105×55
- range of product
- Mureva
- Product name
- Mureva BOX
- Product or component type
- Junction box
- Device application
- Cable installation
- Colour tint
- White (RAL 9003)
- Quantity per set
- Set of 5
- Device mounting
- Surface
- Fixing mode
- By screw: body housing
- Base dimension
- 105 x 55 x 105 mm
- cable entry
- Grommets
- Cable entry number
- 7 diameter: 25 mm
- Material
- PP (polypropylene): body and cover
- Height
- 105 mm
- Width
- 105 mm
- Depth
- 55 mm
- Ambient air temperature for operation
- -25…60 °C
- IP degree of protection
- IP55
- IK degree of protection
- IK07
- Glow wire temp
- 750 °C
- Standards
- EN 60670; CE
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
- Model
- Junction box
- RAL-number (similar)
- 9003
- Max. conductor cross section
- 20 mm²
- Shape
- Square
- Mounting method
- Wall-/ceiling mounting
- For tube diameter
- 25 mm
- Length
- 105 mm
- Number of inlets
- 7
- Type of housing feed-through
- Pipe socket
- Surface protection
- Untreated
- Colour
- White
- Degree of protection (IP)
- IP55
- Cover model
- Blind cover
- Cover attachment
- Screwed
- Operating temperature
- -25–40 °C
- Circuit integrity
- None
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Poland
