S3D Cabinet 800X1000X300 M2 Doorer
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D81030D S3D CABINET 800X1000X300 M2 DOORS.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D81030D
- EAN / GTIN
- 3606480159053
- Sales unit
- pcs
- Dimensions
- 800×1000×300
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 800 mm
- Enclosure nominal width
- 1000 mm
- Enclosure nominal depth
- 300 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 2 cable gland plate; 1 lock; 2 door
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 2 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- BV; DNV; GL; UL; cUL
- Product weight
- 38 kg
- Electromagnetic compatibility
- Electromagnetic field immunity test
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP55 conforming to IEC 60529
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 800 mm
- Depth
- 300 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159053
- SAP 1000317863
- Code 8789445
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250N, 50KA/415VAC, 3 poles, MicroLogic 2.2 trip unit 100A C25N32D100
Schneider Electric
Schneider Electric APC Easy Rack, 48U, Black, with Roof, Castors, Feet, 4 Brackets, and Side Panels, No Bottom, 2258H x 800W x 1200D mm ER8822
Schneider Electric
3-Phase Easy UPS 40KVA 400V 3:3 Tower
E3SUPS40KHB
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30MA A9D32625
Schneider Electric
PLA55 bakelite mounting plate
NSYPMB55
Schneider Electric

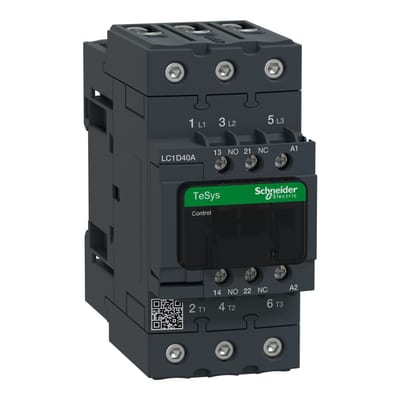

Schneider TeSys D Contactor LC1D40A 40A 3P 100-250V AC/DC Coil
LC1D40AKUE
Schneider Electric

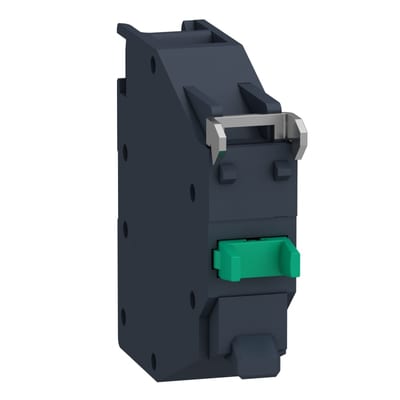

Schneider Electric Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NO ZBE101GEX
Schneider Electric

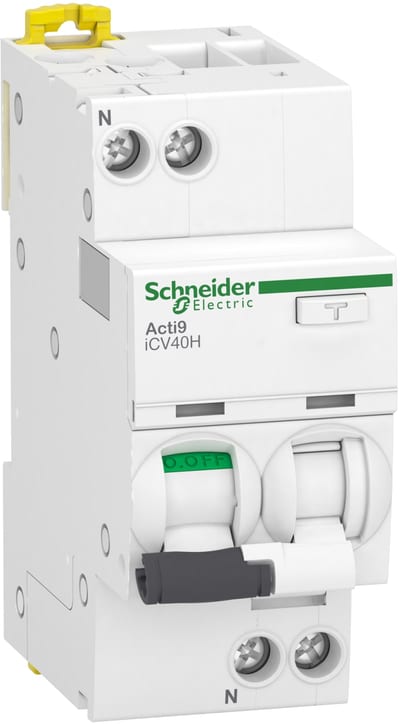

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40H, 1P+N, 25A, C curve, 10000A, A type, 30MA A9DC4625
