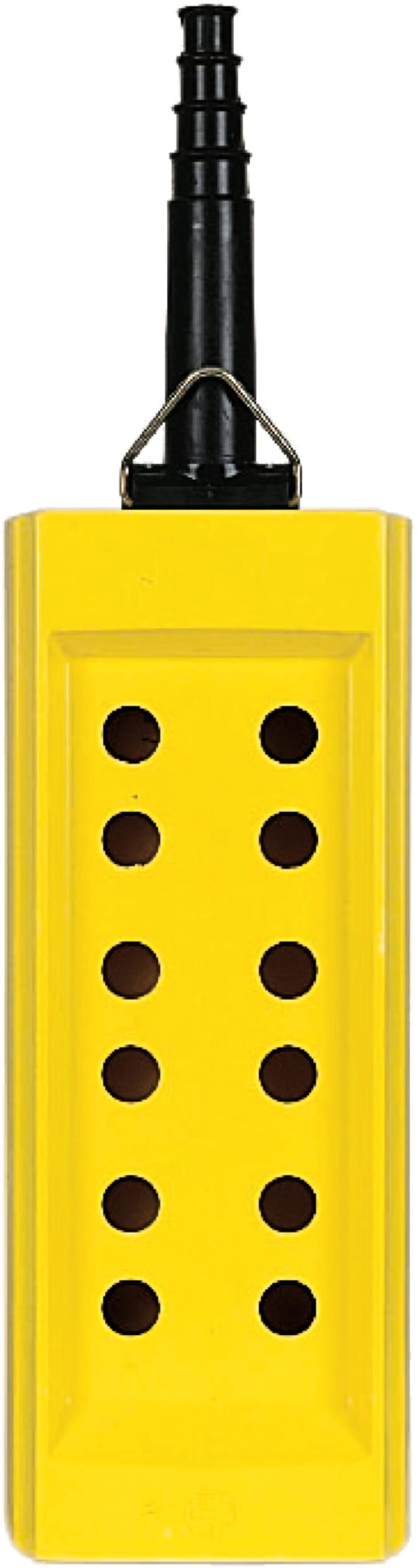

Schneider Electric empty pendant control station XAC-B - 12 openings in 2 columns XACB1215

Schneider Electric XACB1215 Suspended enclosure empty 2X6 holes+bunnmo.

Manufacturer part number (MPN)

XACB1215

EAN / GTIN

3389110665611

Sales unit

pcs

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACB

Control station type

Double insulated

Enclosure material

Glass reinforced polyester

Electrical circuit type

Power circuit; Control circuit

enclosure type

Empty enclosure

Number of cut-out

12 cut-outs in 2 rows

Control station colour

Yellow

Cable entry

Rubber sleeve with stepped entry 22…35 mm

Guard rail

Without

Vertical operator cut-out centre

40 mm

Standards

IEC 60947-5-1; CSA C22.2 No 14

Product certifications

CSA type 4

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Mechanical durability

1000000 cycles

Product weight

1.66 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.500 cm

Package 1 Width

66.000 cm

Package 1 Length

16.000 cm

Package 1 Weight

1.800 kg

Unit Type of Package 2

P06

Number of Units in Package 2

15

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

40.000 kg

Country of origin

CZ

Warranty (in months)

18

Suitable for control current circuit

Yes

Suitable for main current circuit

Yes

Number of command positions

12

Colour housing cover

Yellow

Housing material

Plastic

Degree of protection (IP)

IP65

Inner diameter opening

35 mm

HS Code

8538.10

• EAN 3389110665611
• SAP 1000260213
• Code 81151142
