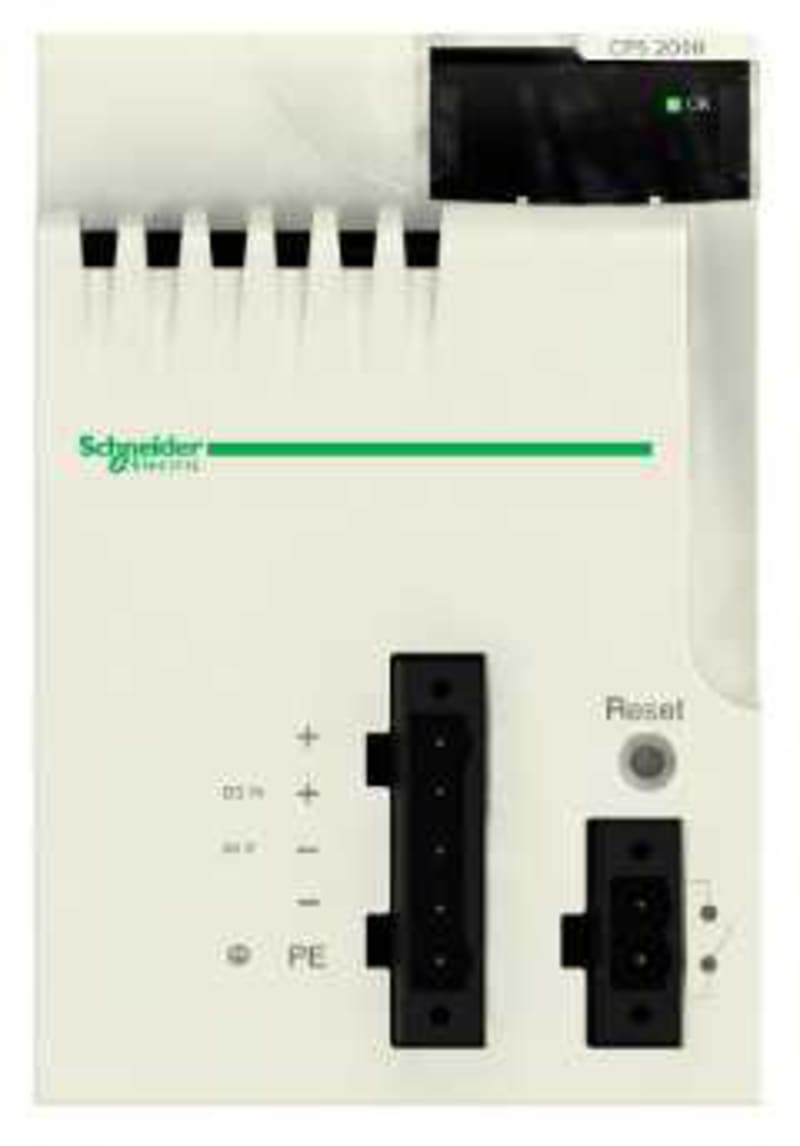

Schneider Electric power supply module X80 - 24 V DC - 16.8 W BMXCPS2010

Schneider Electric BMXCPS2010 M340 power supply 24VDC insulated, 16W.

Manufacturer part number (MPN)

BMXCPS2010

EAN / GTIN

3595863909005

Sales unit

pcs

Package quantity

2 pcs

Voltage

24 V DC

Power

16 W

Range of product

Modicon X80

Product or component type

Power supply module

backplane compatibility

Not compatible with BMEXBP..02

Primary voltage

24 V isolated

Supply circuit type

DC

Secondary power

16.8 W 24 V DC I/O module power supply and processor; 8.3 W 3.3 V DC I/O module logic power supply

Primary voltage limit

18...31.2 V

Input current

1 A 24 V

Inrush current

30 A 24 V

I²t on activation

0.6 A².s 24 V

It on activation

0.15 A.s 24 V

MTBF reliability

4886000 H

Protection type

Internal fuse not accessible for primary circuit; Overload protection for secondary circuit, 24 V sensor power supply; Overvoltage protection for secondary circuit, 24 V sensor power supply; Short-circuit protection for secondary circuit, 24 V sensor power supply

Current at secondary voltage

0.7 A 24 V DC I/O module power supply and processor; 2.5 A 3.3 V DC I/O module logic power supply

Maximum power dissipation in W

8.5 W

Status LED

1 LED (green) rack voltage OK

Control type

RESET push-button cold restart

Electrical connection

1 connector 2 pin(s)alarm relay; 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor

Maximum cable distance between devices

20 m power supply cable copper 1.5 mm²; 30 m power supply cable copper 2.5 mm²

Insulation resistance

>= 10 MOhm primary/ground; >= 10 MOhm primary/secondary

Product weight

0.29 kg

Immunity to microbreaks

1 ms

Dielectric strength

1500 V primary/ground; 1500 V primary/secondary

Vibration resistance

3 gn

Shock resistance

30 gn

IP degree of protection

IP20

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

0…60 °C

Relative humidity

5…95 % at 55 °C without condensation

Protective treatment

TC

Operating altitude

0...2000 m; 2000...5000 m with derating factor

Country of origin

ID

Warranty (in months)

18

Width

68 mm

Height

104 mm

Depth

99 mm

Suitable for safety functions

No

Type of voltage (input voltage)

AC/DC

Power output

16.8 W

Redundancy

No

Output voltage DC

3.3–24 V

Input voltage DC

24 V

Max. output current DC

2.5 A

Max. input current DC

1 A

Type of output voltage

AC/DC

HS Code

8504.40
