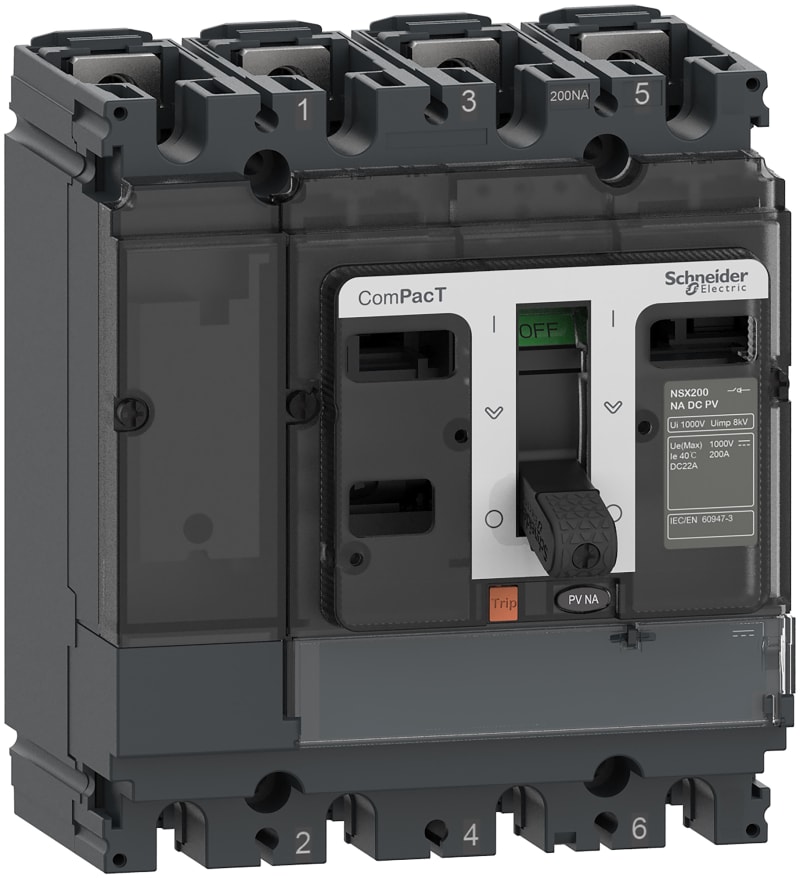

Schneider Electric Switch disconnector, ComPacT NSX100NA DC PV, 4 poles, fixed, 100A rating, 1000V C104100D1S

Schneider Electric C104100D1S Circuit breaker ComPacT NSX100 NA DC PV 4P load-break switch-100A.

Manufacturer part number (MPN)

C104100D1S

EAN / GTIN

3606482003637

HS code

8536.90

Sales unit

pcs

Number of poles

4P

Range

ComPacT

Product name

ComPacT NSX DC PV

Device short name

NSX100NA DC PV

Product or component type

Switch disconnector

Device application

Photovoltaic

Poles description

4P

[Ith] conventional free air thermal current

100 A at 65 °C

[Ie] rated operational current

DC-22A: 100 A DC 1000 V

[Ue] rated operational voltage

1000 V DC

Network type

DC

Suitability for isolation

Yes conforming to EN/IEC 60947-3

Utilisation category

DC-22A

Breaking capacity code

NA

Contact position indicator

Yes

Visible break

No

mounting mode

Fixed

[Icw] rated short-time withstand current

2.5 kA during 1 s

[Icm] rated short-circuit making capacity

2.5 kA switch-disconnector alone

Control type

Toggle

[Ui] rated insulation voltage

1000 V DC

[Uimp] rated impulse withstand voltage

8 kV

Mounting support

Backplate

Upside connection

Front

Downside connection

Front

Connection pitch

35 mm

Mechanical durability

10000 cycles

Electrical durability

1500 cycles 1000 V DC In

Width (W)

140 mm

Height (H)

161 mm

Depth (D)

86 mm

Product weight

2.8 kg

Standards

EN/IEC 60947-1; EN/IEC 60947-3

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60664-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Number of Units in Package 1

1

Warranty (in months)

18

HS Code

8536.90
