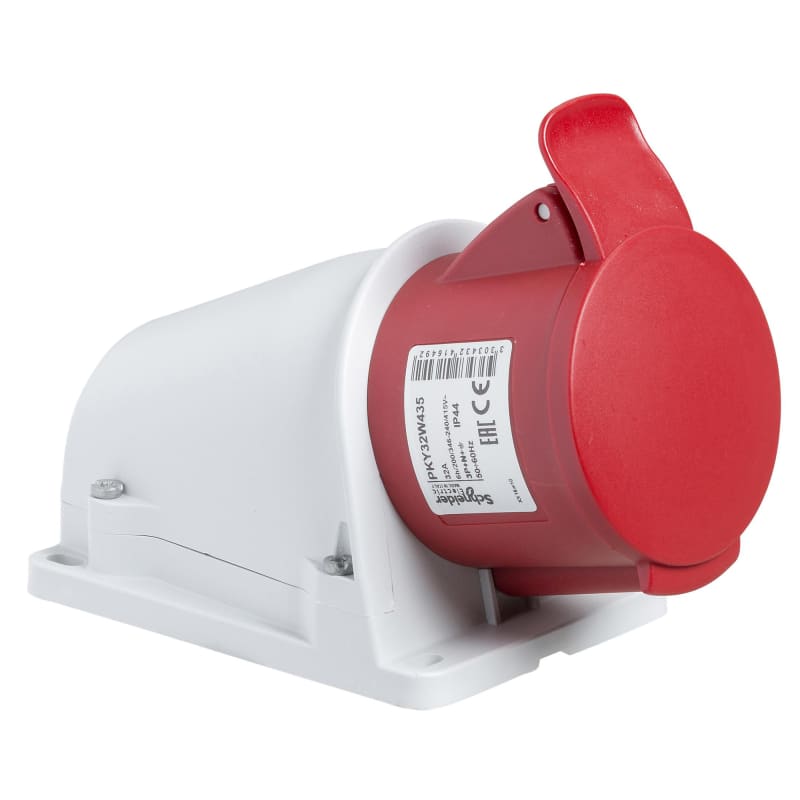

Schneider Electric PratiKa socket - fast - angled - 32A - 3P + N + E - 380...415 V AC - wall PKY32W435
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKY32W435 PratiKa socket outlet - fast - angled - 32A - 3P + N + E - 380.415 V AC - wall.
Technical Specifications
- Manufacturer part number (MPN)
- PKY32W435
- EAN / GTIN
- 3303432416492
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Rated current
- 32 A
- Range
- Mureva
- Product or component type
- Socket
- Device short name
- Mureva socket
- Plug, socket category
- Low voltage
- Poles description
- 3P + N + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Wall-mounted
- Plug, socket, control station shape
- Angled
- [In] rated current
- 32 A
- [Ue] rated operational voltage
- 380...415 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 6 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Fast connection
- Cable cross section
- 2.5…6 mm²
- Cable outer diameter
- 21 mm
- Thread type
- M25
- Product weight
- 0.33 kg
- Height
- 160 mm
- Width
- 106 mm
- Depth
- 149 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Red
- Standards
- IEC 60309-2; IEC 60309-1
- IP degree of protection
- IP44 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 750 °C conforming to IEC 60695-2-1
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s )
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303432416492
- SAP 1200500605
- Code 82623489
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 12V DC coil, snap-in terminals LC1D25AJD
Schneider Electric
Schneider Electric TeSys F - contactor coil - LX1FH - 440V AC 40...400 Hz LX1FH4402
Schneider Electric

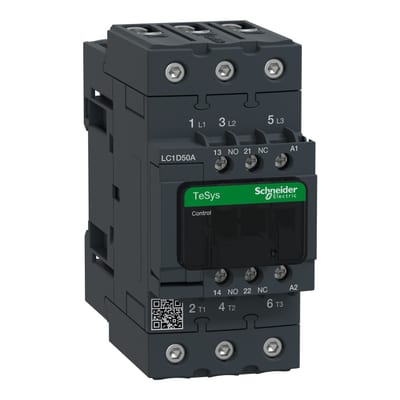

Schneider TeSys D Contactor LC1D50A 50A 3P 24-60V AC/DC Coil
LC1D50ABNE
Schneider Electric

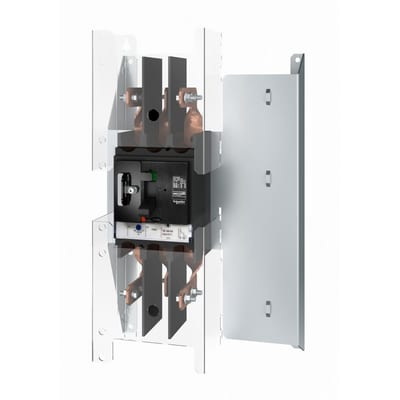

Easy UPS 3S battery switch Kit
E3SOPT008
Schneider Electric

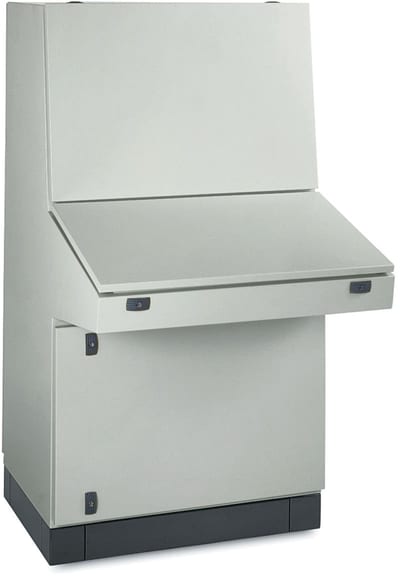

Schneider Electric PanelSeT SD Control desk with console - H1400XW1000XD845 - IP55 NSYSDF108
Schneider Electric

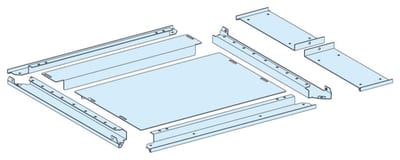

Bunnpl. 2DELT IP30 PrismaP B650+150 D600
LVS08697
Schneider Electric

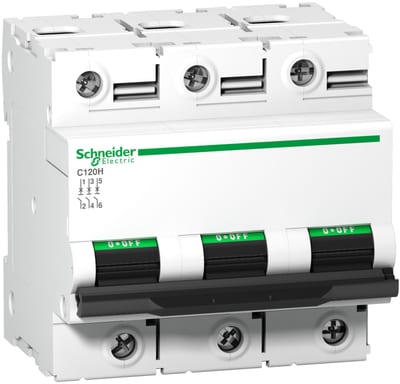

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120H, 3P, 63A, D curve, 15000A (IEC/EN 60898-1), 15KA (IEC/EN 60947-2) A9N18511
