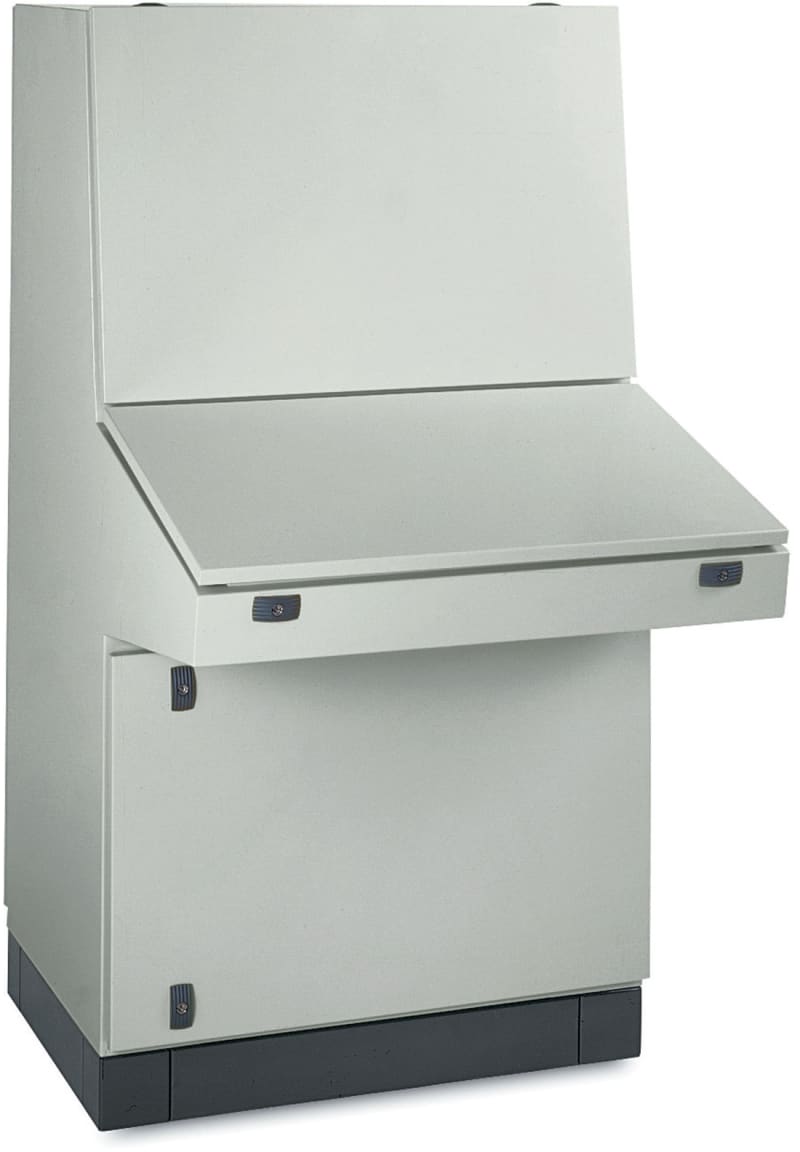

Schneider Electric PanelSeT SD Control desk with console - H1400XW1000XD845 - IP55 NSYSDF108
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSDF108 Control desk B,H,D=1000,1400,400.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSDF108
- EAN / GTIN
- 3606480162923
- Sales unit
- pcs
- Depth
- 1000 mm
- Range
- PanelSeT
- Product name
- PanelSeT SD
- Enclosure type
- Multi-purpose
- Category
- Control desk with console and desk
- Nominal height
- 1400 mm
- Nominal width
- 1000 mm
- Nominal depth
- 845 mm
- Product installation
- Floor-standing
- Device composition
- 1 structure; 4 adjustment rail; 1 cable gland plate; 2 pneumatic stay: desk lid; 1 front console door; 1 desk lid; 2 mechanical stay: front console door; 6 lock: front door; 1 handle lock: rear door; 2 front door; 2 rear door
- Body type
- Single piece structure folded and welded
- Door type
- Plain
- Number of doors
- Front: 2 door(s); Rear: 2 door(s)
- Door opening side
- Reversible 120 ° front and rear doors; Folding 75 ° desk lid and console cover
- Lock type
- Handle lock, 5 mm double bar; 2 points lock, 3 mm double-bar
- Mounting plate description
- Without mounting plate
- Type of gland plate
- 1 entry plate
- Accessibility for operation
- Front; Rear
- Removable parts
- Desk lid by hinges; Cable gland plate by clipping screws; Front door by hinges; Front console door by hinges; Rear door by hinges
- Material
- Body: steel
- Surface finish
- Epoxy-polyester powder
- thickness
- 1.5 mm
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 160.000 cm
- Package 1 Width
- 104.000 cm
- Package 1 Length
- 90.000 cm
- Package 1 Weight
- 95.000 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 1400 mm
- RAL-number
- 7035
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Component of the desk system
- Desk console
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480162923
- SAP 1000089759
- Code 8915139
