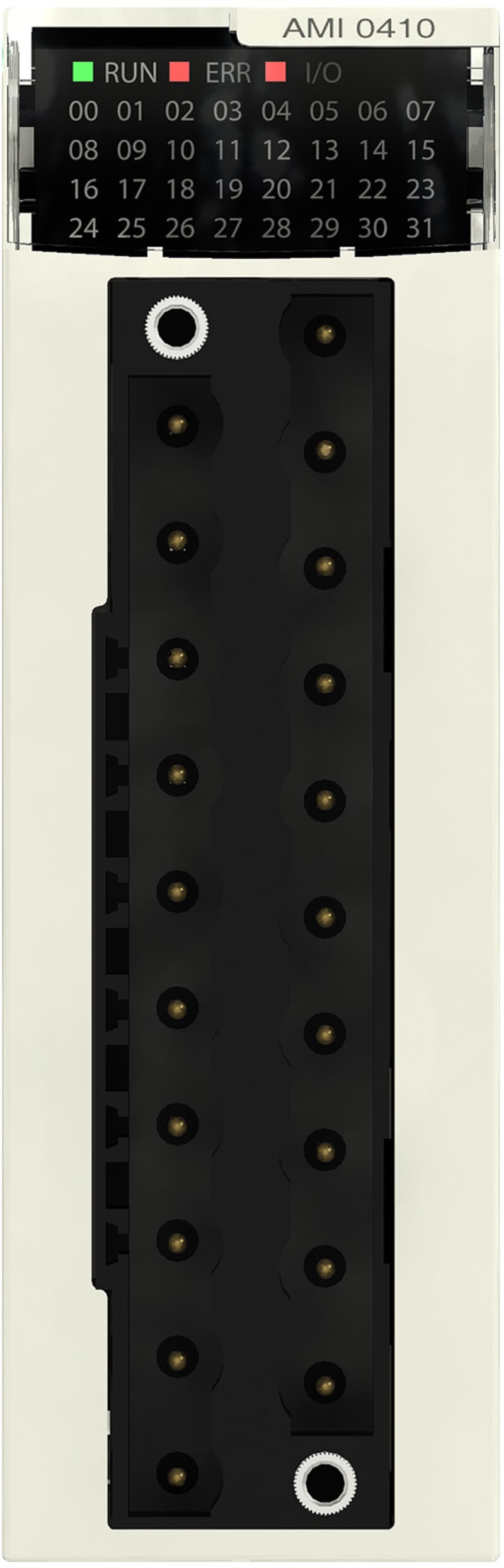

Schneider Electric BMXAMI0410 analogue input module X80 - 4 inputs - high speed

Schneider Electric BMXAMI0410 analogue input module X80 - 4 inputs - high speed is listed under Control & Automation / PLCs. HS code: 8538.90.

Manufacturer part number (MPN)

BMXAMI0410 EAN / GTIN: 3595863910179 Sales unit: pcs Package quantity: 15 pcs Range of product: Modicon X80 Product or component type: analogue input module Electrical connection: 20 ways 1 connector Isolation between channels: Isolated Input level: High level Analogue input number: 4 Analogue input type: Current +/- 20 mA; Current 0...20 mA; Current 4...20 mA; Voltage +/- 10 V; Voltage +/- 5 V; Voltage 0...10 V; Voltage 0...5 V; Voltage 1...5 V analogue/digital conversion: 24 bits Analogue input resolution: 16 bits Permitted overload on inputs: +/- 30 V +/- 10 V; +/- 30 V +/- 5 V; +/- 30 V 0...10 V; +/- 30 V 0...5 V; +/- 30 V 1...5 V; +/- 90 mA +/- 20 mA; +/- 90 mA 0...20 mA; +/- 90 mA 4...20 mA Input impedance: 10 MOhm in voltage mode; 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode Precision of internal conversion resistor: 0.1 % - 15 ppm/°C Type of filter: First order digital filtering Fast read cycle time: 1 ms + 1 ms x number of channels used Nominal read cycle time: 5 ms for 4 channels Measurement error: <= 0.1 % of full scale +/- 10 V 0...60 °C; <= 0.1 % of full scale +/- 5 V 0...60 °C; <= 0.1 % of full scale 0...10 V 0...60 °C; <= 0.1 % of full scale 0...5 V 0...60 °C; <= 0.1 % of full scale 1...5 V 0...60 °C; <= 0.3 % of full scale +/- 20 mA 0...60 °C; <= 0.3 % of full scale 0...20 mA 0...60 °C; <= 0.3 % of full scale 4...20 mA 0...60 °C; 0.075 % of full scale +/- 10 V 25 °C; 0.075 % of full scale +/- 5 V 25 °C; 0.075 % of full scale 0...10 V 25 °C; 0.075 % of full scale 0...5 V 25 °C; 0.075 % of full scale 1...5 V 25 °C; 0.15 % of full scale +/- 20 mA 25 °C; 0.15 % of full scale 0...20 mA 25 °C; 0.15 % of full scale 4...20 mA 25 °C Temperature drift: 15 ppm/°C +/- 10 V; 15 ppm/°C +/- 5 V; 15 ppm/°C 0...10 V; 15 ppm/°C 0...5 V; 15 ppm/°C 1...5 V; 30 ppm/°C +/- 20 mA; 30 ppm/°C 0...20 mA; 30 ppm/°C 4...20 mA Recalibration: Internal minimum crosstalk attenuation: 80 dB Common mode rejection: 90 dB digital value format: - 32768 to + 32767 in maximum user scale; +/- 10000 by default Isolation voltage: 300 V DC between channels; 1400 V DC between channels and ground; 1400 V DC between channels and bus Measurement resolution: 0.35 mV +/- 10 V; 0.35 mV +/- 5 V; 0.35 mV 0...10 V; 0.35 mV 0...5 V; 0.35 mV 1...5 V; 0.92 µA +/- 20 mA; 0.92 µA 0...20 mA; 0.92 µA 4...20 mA Maximum conversion value: +/- 11.4 V +/- 10 V; +/- 11.4 V +/- 5 V; +/- 11.4 V 0...10 V; +/- 11.4 V 0...5 V; +/- 11.4 V 1...5 V; 0...30 mA +/- 20 mA; 0...30 mA 0...20 mA; 0...30 mA 4...20 mA MTBF reliability: 1200000 H Operating altitude: 0...2000 m; 2000...5000 m with derating factor Status LED: 1 LED (green) RUN; 1 LED per channel (green) channel diagnostic; 1 LED (red) ERR; 1 LED (red) I/O Product weight: 0.143 kg Power consumption in W: 0.82 W 24 V DC typical; 1.30 W 24 V DC maximum; 0.32 W 3.3 V DC typical; 0.48 W 3.3 V DC maximum Current consumption: 150 mA at 3.3 V DC; 45 mA at 24 V DC Vibration resistance: 3 gn Shock resistance: 30 gn Ambient air temperature for storage: -40…85 °C Ambient air temperature for operation: 0…60 °C Relative humidity: 5…95 % at 55 °C without condensation IP degree of protection: IP20 Directives: 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility Product certifications: CE; RCM; CSA; EAC; Merchant Navy; UL Standards: IEC 61010-2-201; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201 Protective treatment: Standard version Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 5.600 cm Package 1 Width: 11.100 cm Package 1 Length: 11.700 cm Package 1 Weight: 172.000 g Unit Type of Package 2: S02 Number of Units in Package 2: 15 Package 2 Height: 15.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 2.923 kg Country of origin: FR Warranty (in months): 18 Power consumption: 1.3 W Number of analogue inputs: 4 Analogue inputs configurable: Yes Analogue outputs configurable: No Input, current: Yes Input, voltage: Yes Input, resistor: No Input, resistance thermometer: No Input, thermocouple: No Input signal, configurable: Yes Resolution of the analogue inputs: 16 Bit Output, current: No Output, voltage: No Output signal configurable: No Type of electric connection: Plug-in connection Suitable for safety functions: Yes SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): Yes Width: 32 mm Height: 100 mm Depth: 160 mm

HS Code

8538.90

• EAN 3595863910179
• SAP 1000034373
• Code 8266465
