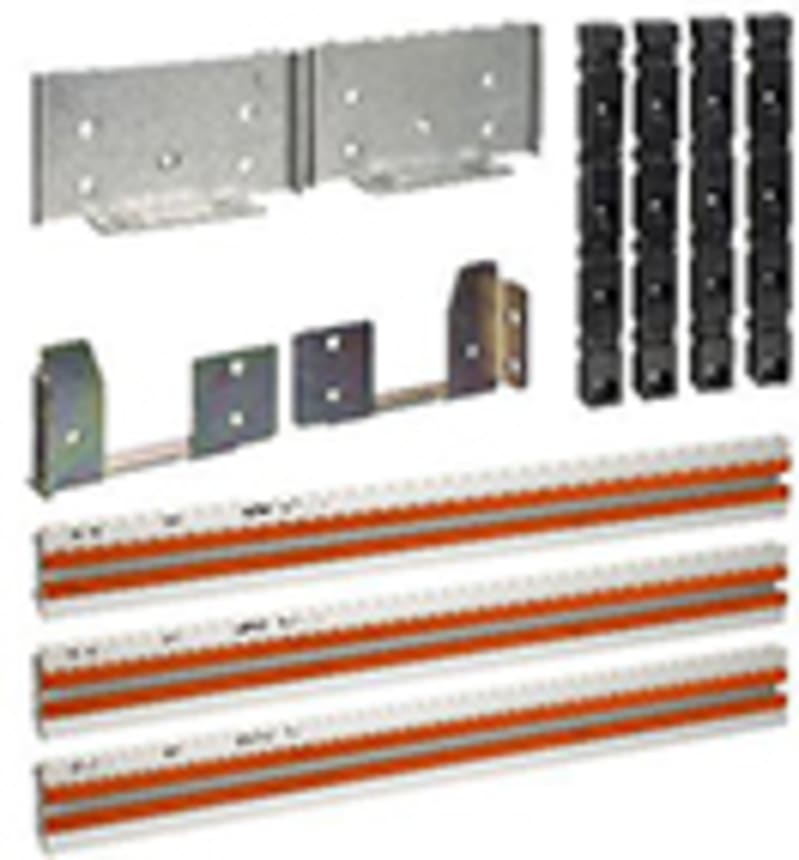

Schneider Electric Connection Horiz. LGYE MTZ2/NW 1600A 3P Prisma P LVS04493
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04493 Horizontal connection LGYE for MTZ2 1600A 3P PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04493
- EAN / GTIN
- 3606481884459
- Sales unit
- pcs
- Rated current
- 1600 A
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure; Masterpact MasterPact NW
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- connection transfer assembly
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 600 mm: front; 600 + 400 mm: rear
- Installed device
- Masterpact: drawout NW08...16 - control: toggle vertical installation; Masterpact: fixed NW08...16 - control: toggle vertical installation
- [Ie] rated operational current
- 1600 A
- Length
- 580 mm
- Quantity per set
- Set of 1
- functional unit
- 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 front connection on adaptor 36; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 front connection on Canalis 27; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 rear connection on adaptor 15; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 front connection on adaptor 19; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 rear connection on Canalis 17; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 drawout toggle vertical 3P 1 front connection on busbar 36; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 front connection on adaptor 18; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 rear connection on adaptor 14; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 front connection on Canalis 27; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 rear connection on Canalis 16; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW08...16 fixed toggle vertical 3P 1 front connection on busbar 36
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Warranty (in months)
- 18
- With cover
- No
- Max. rated current
- 1600 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481884459
- SAP 1200546946
- Code 82879254
Product Documentation
More from Schneider Electric
Schneider Electric
TCS-C3 screw clip 18-22 6 pcs
IMT37460
Schneider Electric
Schneider Electric standard power distribution kit STB - 24 V DC STBPDT3100K
Schneider Electric
Internal corner ALUMIN.IH 123AN
5507100
Schneider Electric
Schneider Electric Trip unit TM80D, ComPacT NSX100/160/250, 3 poles, thermal magnetic protections, 80A rating C103TM080
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 25A, A-SI type, 30MA, double terminal A9Z31425
Schneider Electric
Schneider Electric iCT 25A 4NO 24V 50Hz contactor A9C20134
Schneider Electric
Schneider Electric thermal overload relays, TeSys Deca, 23...32A, class 10A LRD3353
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X1200X400MM, 2 doors, IP55 NSYSFN2012402D
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS04493?
- LVS04493 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS04493.
- What is the HS code for LVS04493?
- The customs tariff (HS) code for LVS04493 is 8536.90.
- Who manufactures LVS04493?
- LVS04493 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LVS04493?
- Yes — the LVS04493 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS04493?
- The minimum order quantity is 1.
- Is LVS04493 available?
- Yes — LVS04493 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
