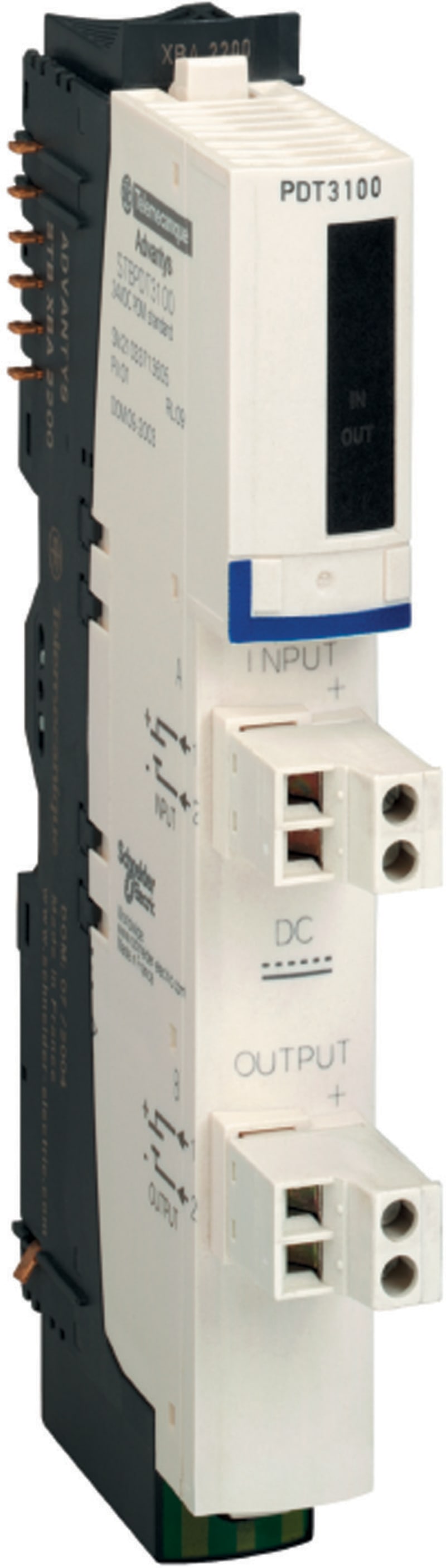

Schneider Electric standard power distribution kit STB - 24 V DC STBPDT3100K

Schneider Electric STBPDT3100K STB kit 24VDC distribution.

Manufacturer part number (MPN)

STBPDT3100K

EAN / GTIN

3595863949216

Sales unit

pcs

Package quantity

39 pcs

Voltage

24 V DC

Range of product

Modicon STB distributed I/O solution

Product or component type

Standard power distribution kit

Kit composition

STBXTS2130, spring type connectors; STBPDT3100 module; STBXBA2200 base; STBXTS1130, screw type connectors

Product compatibility

Mounting base STBXBA2200

[Us] rated supply voltage

24 V for DC

Power supply output current

10 A for input/output circuit; 12 A for input/output circuit; 6 A for input/output circuit; 8 A for input/output circuit; 0…4 A for input circuit; 0…8 A for output circuit

Voltage range

19.2...30 V DC sensor/actuator bus

Protection type

Built-in overcurrent protection, 10 A time-lag fuse for output circuit; Built-in overcurrent protection, 5 A time-lag fuse for input circuit; Reverse polarity for actuator bus

Permissible current

30 A for 2 minutes grounding terminal

Hot swapping fallback

No

Local signalling

1 LED green for actuator bus power supply (OUT); 1 LED green for sensor bus power supply (IN)

Housing colour

White

Height

125 mm

Width

18.4 mm

Depth

65.1 mm

Product weight

0.13 kg

Overvoltage category

II

IP degree of protection

IP20

Marking

CE

Product certifications

CSA; FM Class 1 Division 2; UL

Standards

EN/IEC 61131-2 type 1

Ambient air temperature for operation

0…60 °C (without derating)

Ambient air temperature for storage

-40…85 °C without derating

Relative humidity

95 % at 60 °C without condensation

Operating altitude

<= 2000 m

Pollution degree

2

Vibration resistance

3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail; +/-0.35 mm (f = 10…58 Hz)

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Number of Units in Package 1

1

Number of Units in Package 2

24

Number of Units in Package 3

384

Country of origin

ID

Warranty (in months)

18

Suitable for safety functions

Yes

Type of voltage (input voltage)

AC/DC

Redundancy

No

Output voltage DC

24 V

Input voltage DC

19.2–30 V

Max. output current DC

8 A

Max. input current DC

4 A

Type of output voltage

AC/DC

HS Code

8538.90
